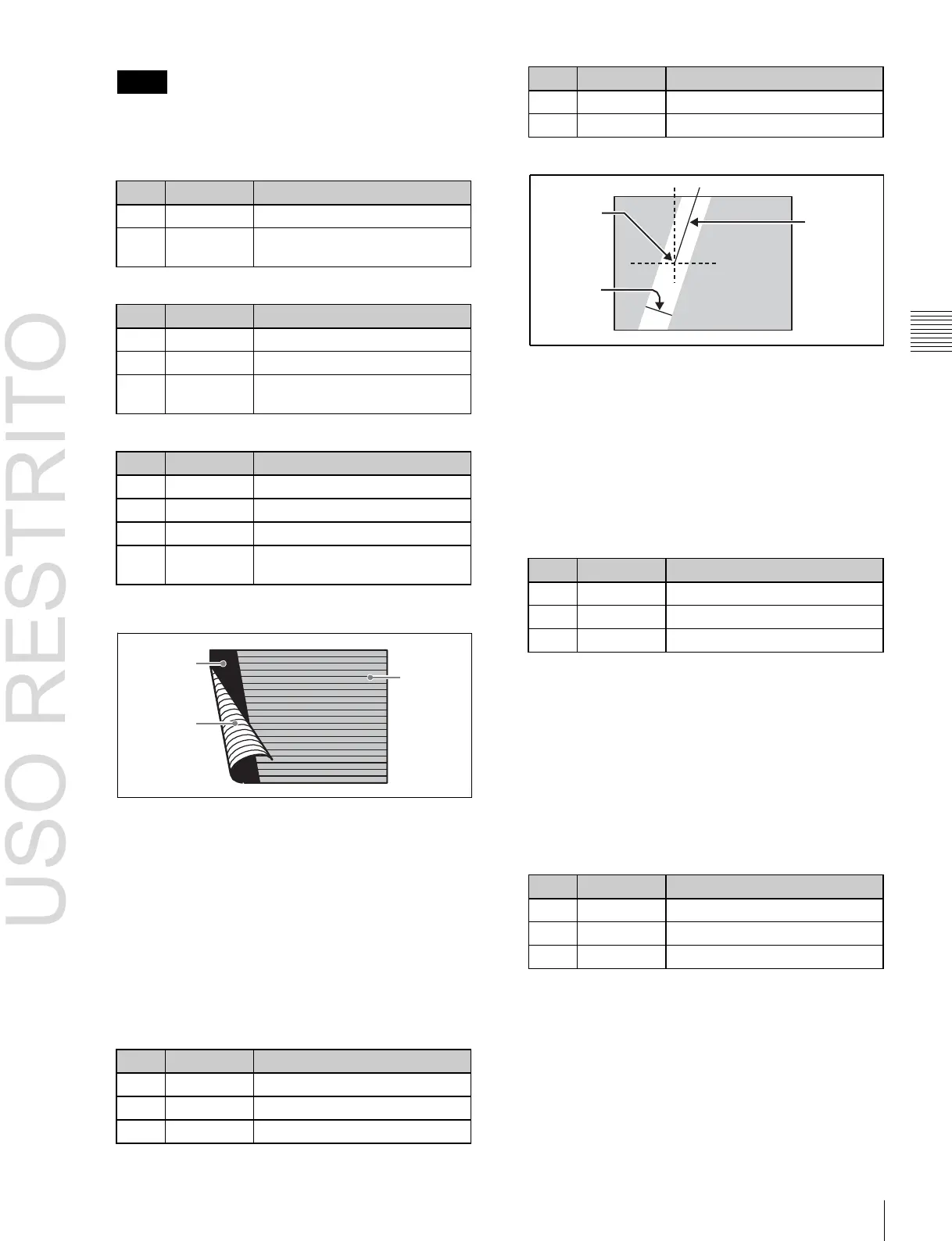

Applying Special Effects (Lighting and Recursive Effects) 203
No.
Parameter
Adjustment
1
Light
Intensity of light in highlight area
5
Total
Ambient
Brightness of whole image
No.
Parameter
Adjustment
1
Light
Intensity of light in highlight area
2
Ambient
Intensity of light in ambient area
5
Total
Ambient
Brightness of whole image
No.
Parameter
Adjustment
1
Light
Intensity of light in highlight area
2
Ambient
Intensity of light in ambient area
3
Shade
a)
Intensity of light in shade area
5
Total
Ambient
Brightness of whole image
No.
Parameter
Adjustment
1
Luminance
Luminance
2
Saturation
Saturation
3
Hue
Hue
No.
Parameter
Adjustment
1
X
X-value of bar center point
2
Y
Y-value of bar center point
3
Angle
a)
Angle of bar
Chapter
10
DME
Operations
Notes
The Total Ambient function is not supported by the
MKS-6570 or MVE-8000A.
When Plane is selected
No.
Parameter
Adjustment
4
Width
Width of bar
5
Soft
Softness of edges
a) There are some nonlinear effects for which Angle cannot be used.
Center
point of bar
Angle of bar
When Bar is selected
Width of
bar
Bar shape parameters
When Preset is selected
a) Setting is available when nonlinear effect Page turn, Roll, Cylinder,
or Sphere is selected.
Setting the color of the light in the
highlight area
1 In the Lighting menu (4151), press [Light Color],
turning it on.
2 Adjust the following parameters.
Shade area
Highlight
area
Ambient
area
Setting the bar shape of the shade area
When you select [Preset] in step 3 of “Applying the
Lighting effect” ( 1 p. 202), use the following procedure
to set the bar shape of the shade area.
1 In the Lighting menu (4151), press [Shade Modify],
turning it on.
The three regions for which the light intensity can be set
Setting the bar shape of the highlight area
When you select [Bar] or [Preset] in step 3 of “Applying
the Lighting effect” ( 1 p. 202), use the following
procedure to set the shape of the bar.
1 In the Lighting menu (4151), press [Light Modify],
turning it on.
2 Adjust the following parameters.
2 Adjust the following parameters.
No.
Parameter
Adjustment
1
X
X-value of bar center point
4
Width
Width of bar
5
Soft
Softness of edges
Setting the color of the shade in the shade
area
1 In the Lighting menu (4151), press [Shade Color],
turning it on.
2 Adjust the following parameters.
