Applying Special Effects (Lighting and Recursive Effects) 209
Chapter
10
DME
Operations
• Coordinate axis on surface of image
• Texture deformations
Selecting the image surface effect
Flat: The image surface is unchanged, causing the selected
light source to appear as the effect.
Texture: A texture appears on the surface of the image.
Textures can be selected from among 30 patterns
( 1 p. 419).
Non Linear: Spotlighting effect is applied to an area to
which a DME nonlinear effect is applied.
Texture deformations
You can change the texture pattern, position, and size, and
use the repetition function.

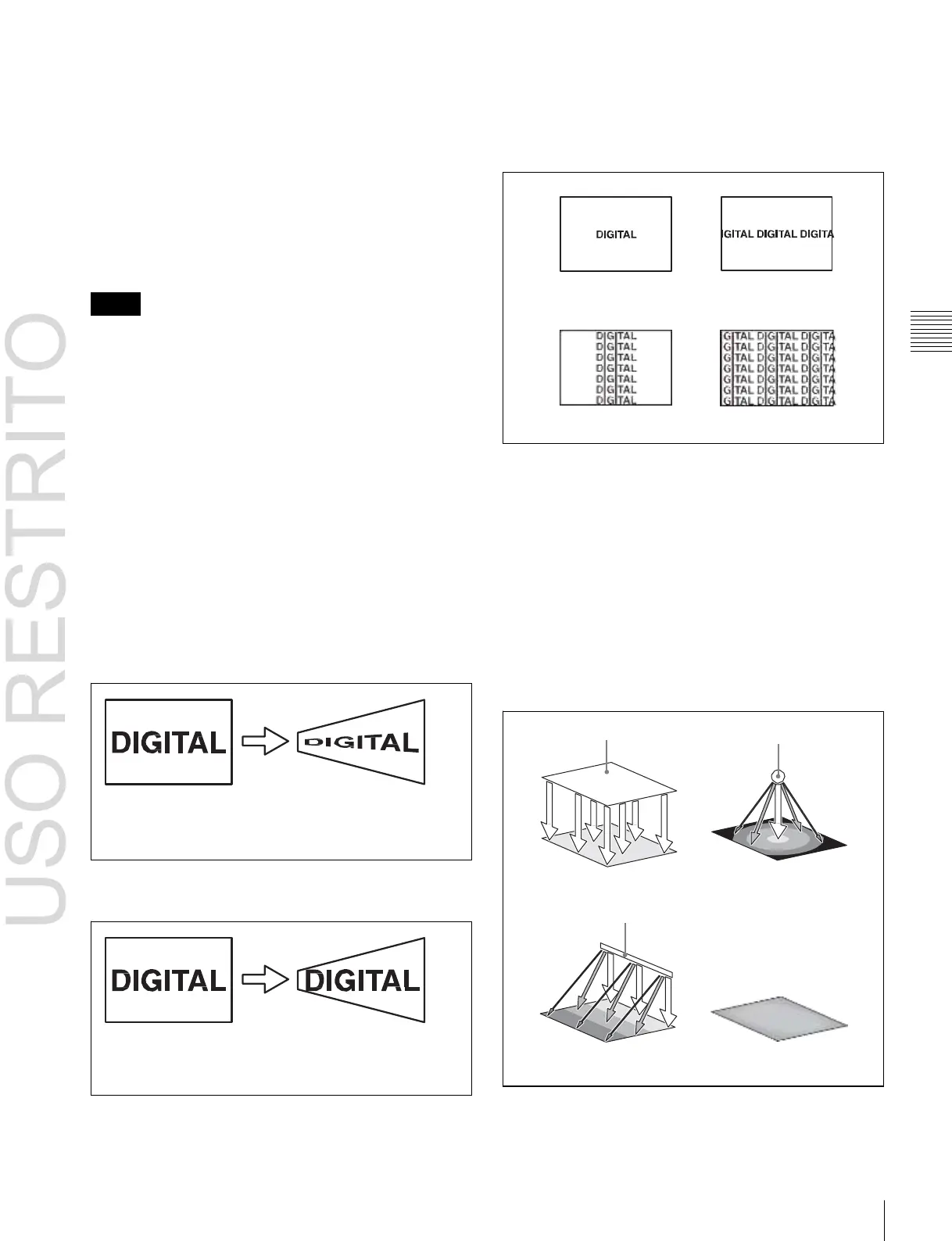

The following figure shows examples of a texture pattern
repeated in the X and Y directions.
Notes
The BZDM-9050 is required to enable [Texture] and [Non
Linear] settings on the MVE-9000.
Test sphere function
A test sphere is a translucent sphere virtually embedded in
the center of the input picture to provide an intuitive way
for you to check the position and direction of the spotlight.
When you change the position or direction of a light
source, the side of the sphere closest to the light source
grows brighter. This allows you to easily check the
position and direction of the light source.
Original image
Repetition in Y
direction
Setting lights
Light source types
Repetition in X
direction
Repetition in X and Y
directions
For details about the test sphere function, 1 “Relation
between test spheres and parallel rays” (p. 210).
Coordinate axis on surface of image
Specify where to apply the texture or test sphere on the
image surface.
Move: The texture moves together with the DME image.
The following type of light sources are available (see
figure below).
Parallel: Parallel light source
Point: Point light source. As the light source is placed
further away, the illuminated range becomes wider
and the light become weaker.
Line: Line light source
Whole: Non-directional light source which illuminates the
whole image.
Light source
Light source
Image before
movement
Coordinate axis = Move
Texture moves together
with DME image.
Fix: The texture does not move, even if the DME image
moves.
Parallel
Point
Light source
Image before
movement
Coordinate axis = Fix
Texture does not move,
even if DME image moves.
Line Whole

Sony MVS-6530 Specifications

General

BNC input ports	48
BNC output ports	32
RJ-45 input ports	4
Product color	Black
AC input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
AC adapter input current	4 A
Storage temperature (T-T)	-20 - 55 °C
Operating temperature (T-T)	5 - 40 °C

Weight and Dimensions

Depth	486 mm
Width	482 mm
Height	176 mm
Weight	21000 g
