Macro Operations in the Flexi Pad
Chapter
15
Macros
• If the same register is recalled again during macro
execution or when the macro is paused, the following
operation depends on a setting in the Setup menu.
For details, 1 “Setting the Macro Execution Mode”
(p. 343).
• Individual events stored in a macro are executed
according to the settings in the Setup menu. If you
change the settings in the Setup menu, a saved macro
may not have the expected effect.
• During macro execution, if you switch the control panel
to macro editing mode, the macro being executed stops.
• During macro editing it is not possible to execute a
macro.
• If you recall a macro from the Flexi Pad while executing
another macro using a button with a macro attachment,
the operation depends on a setting in the Setup menu.
For details, 1 “Setting the Macro Execution Mode”
(p. 343).
Recalling using a button in the memory
recall section
The buttons in the memory recall section can operate
registers 1 to 99. The 99 registers are grouped in banks 0
to 9.
For details about the correspondence between banks and
registers, 1 “Banks and Registers” (p. 268).
1 Press the [MCRO] button and then press the [DRCT
Lit orange: Register containing macro data
Off: Register in which nothing is saved
3 Press the button in the memory recall section
corresponding to the register to recall.
The button you pressed lights yellow, and the macro
held in the corresponding register is recalled and
executed.
The button you pressed flashes yellow as the macro
execution starts, and returns to constantly lit yellow
when the execution ends.
The alphanumeric display shows the selected register
number.
Macro execution modes
You can execute a macro in normal execution mode or step
execution mode.
Normal execution mode: In this mode the macro events
are automatically executed in sequence. However, if
there is a pause event set at some point, execution
pauses at that point. Then pressing the [TAKE] button
in the memory recall section resumes execution.
Step execution mode: The macro events are executed one
at a time with pauses in between. Execute the events in
sequence by repeatedly pressing the [TAKE] button.
You can select normal execution mode or step execution
mode by a selection in the Setup menu ( 1 p. 343).
MODE] button in the memory recall section.
The memory recall section changes to direct recall
mode, enabling macros to be recalled using the
buttons.

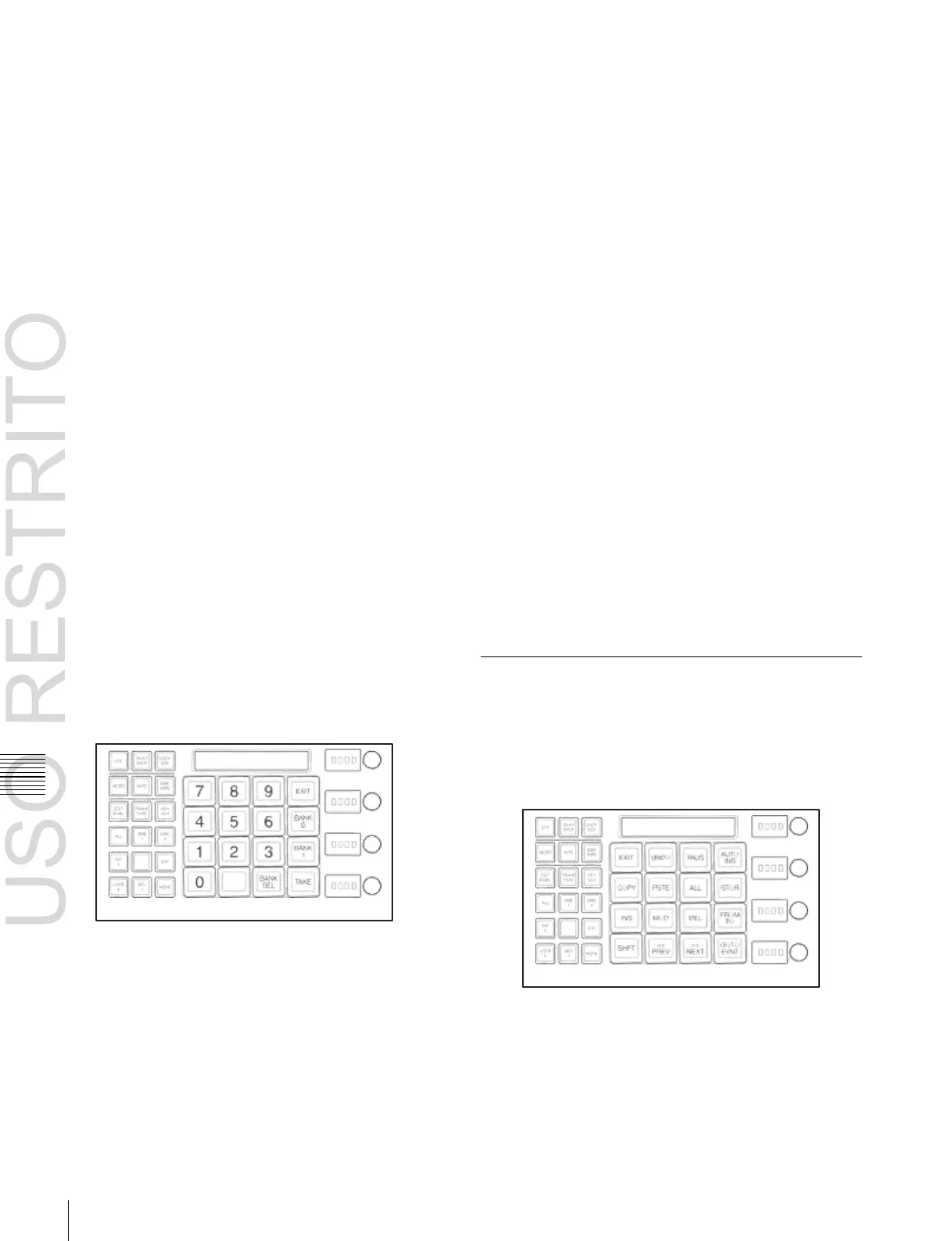

2 Use one of the following operations to select the bank.
To select bank 0: Press the [BANK0] button.
To select bank 1: Press the [BANK1] button.
To select any of banks 0 to 9: Press the [BANK SEL]
button, then press the desired bank button (any of
[0] to [9]).
This selects the bank, and the buttons in the memory
recall section show the macro register state as follows.
Lit yellow: Last recalled register
Creating and Editing a Macro
To create or edit a macro, recall a register and then press
the [EDIT ENBL] button in macro operating mode.
The [MCRO] button and [EDIT ENBL] button light red,
and the memory recall section switches to macro editing
mode.
Switching auto insert mode on/off
In auto insert mode, when creating or editing a macro, an
operation carried out on the control panel is automatically
registered as an event.
When this mode is off, it is necessary to press the [INS]
button in the memory recall section for each operation to
register an event.
