Names and Functions of Parts of the Control Panel 29
Name
Description
2nd row
• Use this to select the cross-point of the
bus that is specified with the 1st row
buttons.
a) b)
• If the utility/shotbox function is selected
with the 1st row buttons, use this to
recall the register or to execute the
function.
Background A
row
Use this to select the signal as the
current background video on this M/E
bank or PGM/PST bank.
Background B
row
Use this to select the signal as the
background video after the transition on
this M/E bank or PGM/PST bank.
Reentry buttons
Use these to select the video created on
another bank as background A or B on
this bank or as the bus specified with the
1st row buttons.
For details, 1 “Selecting M/E reentry
input signals” (p. 60).
Chapter
2
Names
and
Functions
of
Parts

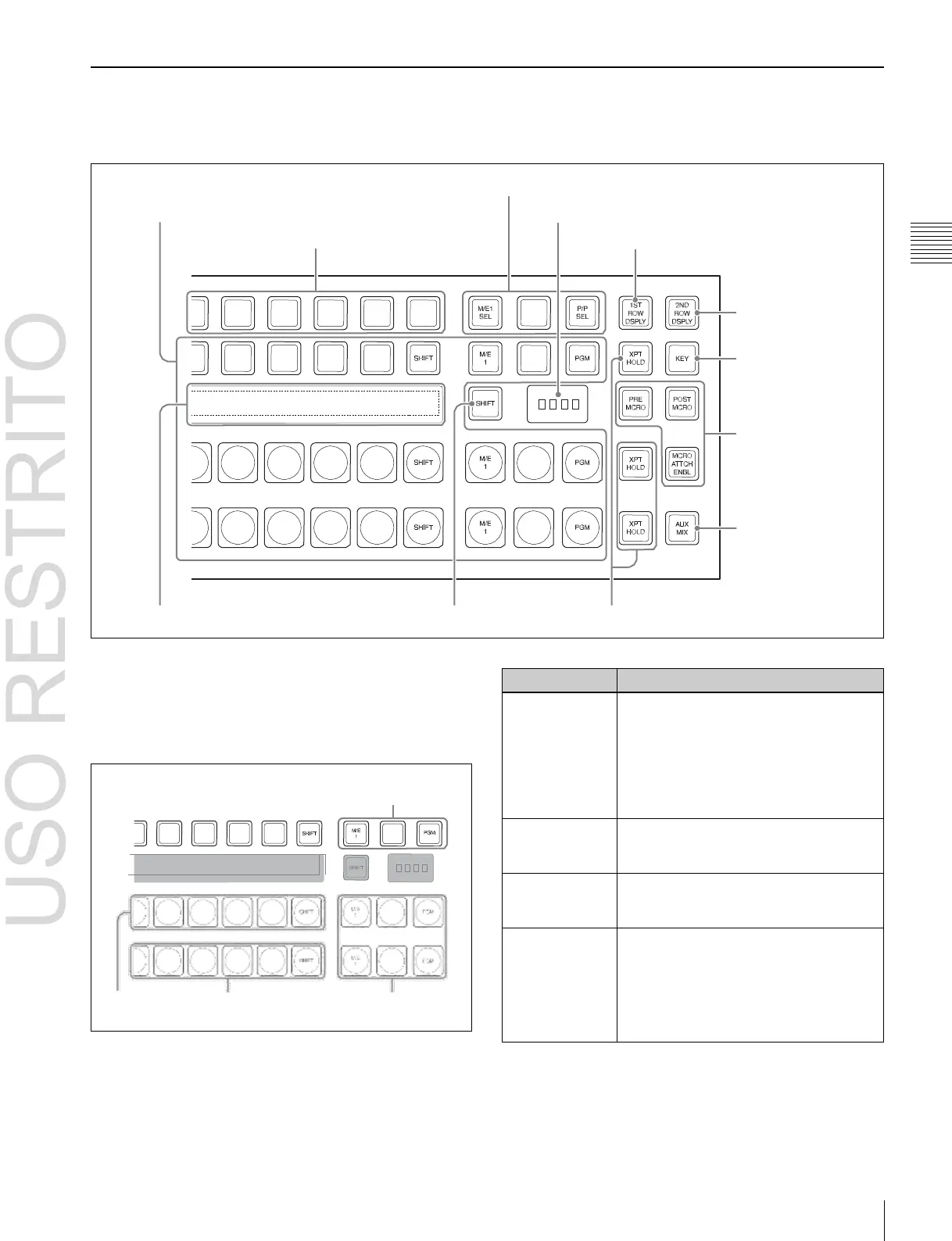

Cross-Point Control Block (ICP-6520/6530)
In the cross-point control block, you can select the signals
to be used in the M/E bank or PGM/PST bank.
a Cross-point buttons
e M/E bank selection buttons
f M/E bank display
c 1st row j 1ST ROW DSPLY button
k 2ND ROW DSPLY
button
l KEY button
g Macro buttons
h AUX MIX button
i Source name displays d Dedicated SHIFT button b XPT HOLD button
a Cross-point buttons
These select the signals used for video processing on this
M/E bank or PGM/PST bank. Each row of buttons
corresponds to one or more signal buses within the
switcher.
2nd row
Reentry
buttons
Background
A row
Background
B row
Reentry
buttons
a) You can select the source signal of the key bus by selecting the cross-point
while holding down the button to which any of KEY1 to KEY4 or DSK1
to DSK4 is assigned in the 1st row.
b) You can select the image on the reverse side of the currently viewed DME
image by selecting the cross-point while holding down the button to which
any of DME1 V/K, DME2 V/K, or DME5 V/K to DME8 V/K is assigned

Sony MVS-6530 Specifications

General

BNC input ports	48
BNC output ports	32
RJ-45 input ports	4
Product color	Black
AC input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
AC adapter input current	4 A
Storage temperature (T-T)	-20 - 55 °C
Operating temperature (T-T)	5 - 40 °C

Weight and Dimensions

Depth	486 mm
Width	482 mm
Height	176 mm
Weight	21000 g
