Names and Functions of Parts of the Control Panel 31
Button name
Display
1ST ROW
DSPLY
2ND ROW
DSPLY
Off
Off
A/B bus signal names
On
Off
Bus names or function names
Off
On
Key/AUX bus signal names
a)
or
function names
Chapter
2
Names
and
Functions
of
Parts
Name
Description
MCRO ATTCH
ENBL (macro
attachment
enable)
Enables the macro attachments set for
the buttons of the M/E (PGM/PST) bank.
In the Setup menu, you can also set the
buttons to light whenever they are
enabled.
h AUX MIX button
Executes an AUX mix transition when an AUX bus is
selected using the 1st row buttons.
For details about AUX mix transitions, 1 “AUX Mix
Transitions” (p. 78).
i Source name displays
These show the names of the signals (sources) or registers
which can be selected on the cross-point buttons, in four-
character mode or auto mode.
While the [SHIFT] button on the right hand side or the
[SHIFT] button assigned to the cross-point button row is
enabled, the source name of the signal assigned to the
cross-point button in shift mode appears.
You can set the source name display mode in the Setup
menu.
The following displays may also appear, depending on the
status of the [1ST ROW DSPLY], [2ND ROW DSPLY],
and [KEY] buttons.
a) Key signal names are displayed when the [KEY] button is pressed, and video signal names are displayed when the [KEY] button is not pressed.
j 1ST ROW DSPLY button
When this is pressed and turned on, the bus names and
function names currently assigned to the 1st row appear in
the source name display.
k 2ND ROW DSPLY button
When this is pressed and turned on, the source name of the
bus currently selected in the 1st row appears in the source
name display. When the [UTIL/SBOX] button in the 1st
row is selected, function names are displayed.
l KEY button
When you press a 2nd row button while holding down this
button, the key signal is selected.

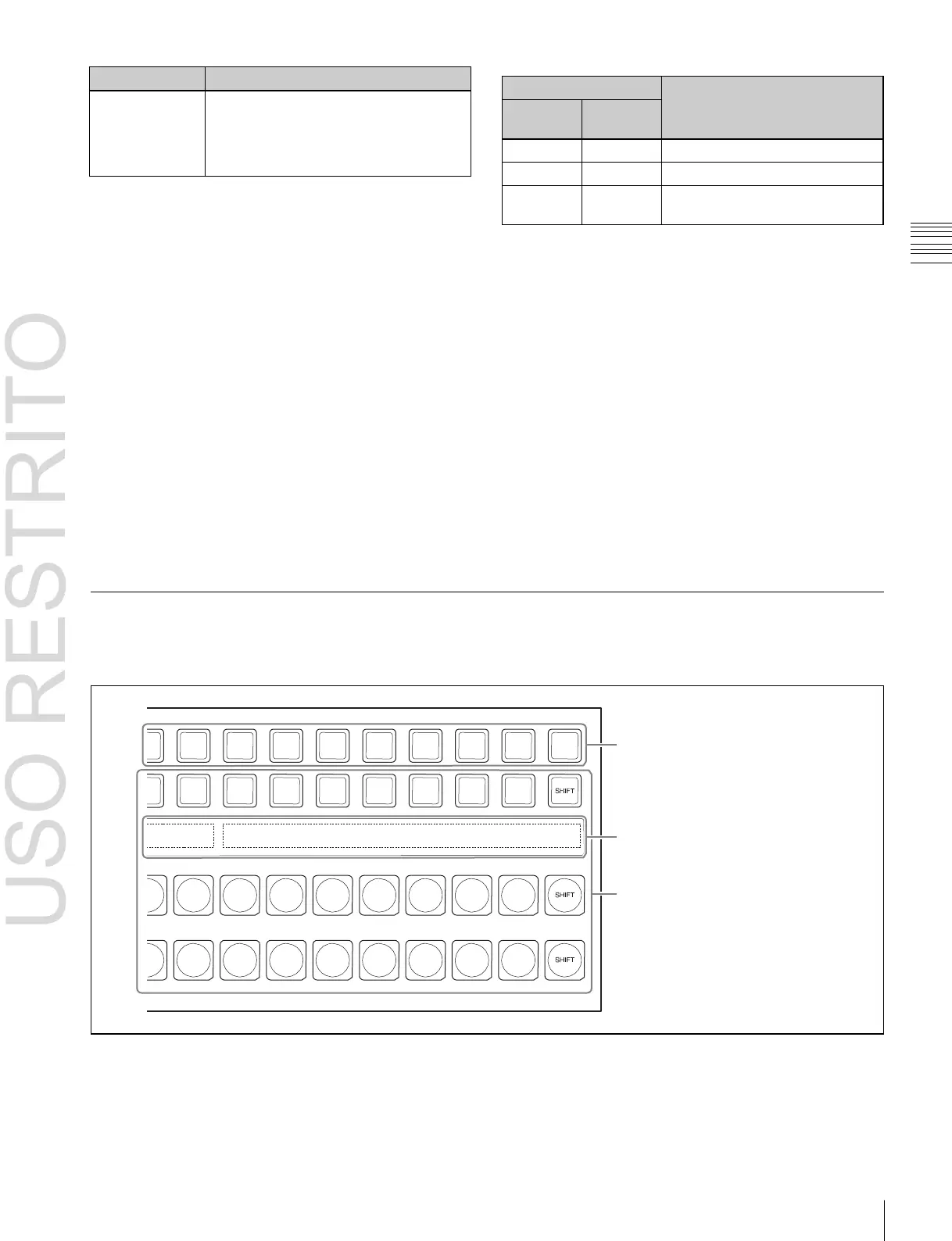

Cross-Point Control Block (ICP-3000/3016)
In the cross-point control block, you can select the signals
to be used in the M/E bank or PGM/PST bank.
b 1st row
c Source name displays
a Cross-point buttons
a Cross-point buttons
These select the signals used for video processing on this
M/E bank or PGM/PST bank. Each row of buttons
corresponds to one or more signal buses within the
switcher.

Sony MVS-6530 Specifications

General

BNC input ports	48
BNC output ports	32
RJ-45 input ports	4
Product color	Black
AC input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
AC adapter input current	4 A
Storage temperature (T-T)	-20 - 55 °C
Operating temperature (T-T)	5 - 40 °C

Weight and Dimensions

Depth	486 mm
Width	482 mm
Height	176 mm
Weight	21000 g
