USO RESTRITO
44

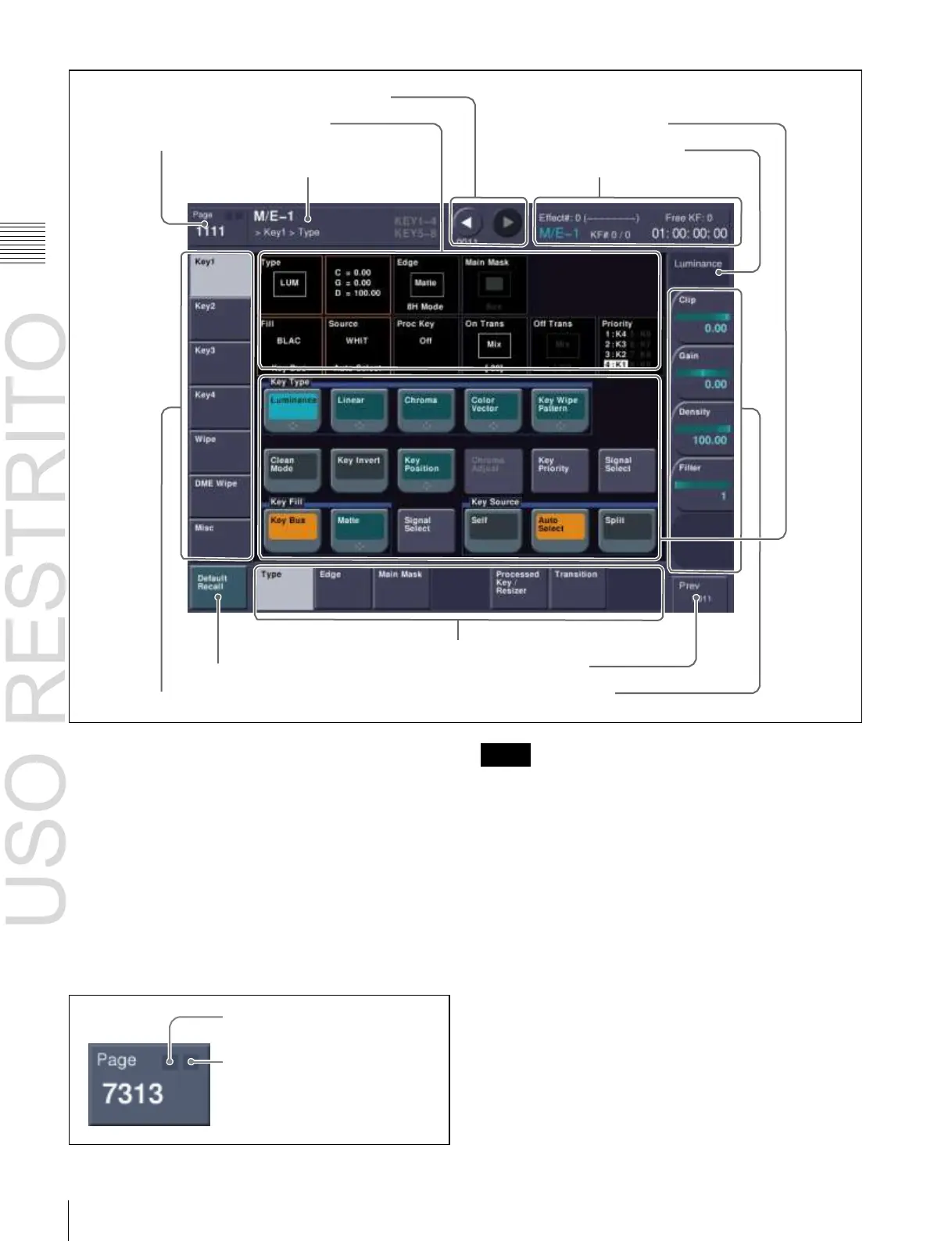

Names and Functions of Parts of the Menu
Chapter
2
Names
and
Functions
of
Parts
qs b (previous) button and B (next) button
5 Status area
2 Menu page number button
1 Menu title button
6 Function button area
7 Parameter group button
0 Keyframe status
qa Default recall button
3 VF buttons
4 HF buttons
9 Previous page button
8 Parameter setting buttons
a Menu title button
This shows the title of the menu screen.
You can set different colors for the main menu site and
subsidiary menu site ( 1 p. 52).
b Menu page number button
This shows the menu screen page number.
When you press this button, the top menu window
( 1 p. 46) appears. You can enter the page number for the
desired menu, or press one of the top menu selection
buttons in the window, to display that menu.
While the system is accessing the local disk or external
HDD, the indicator lights red.
Indicator for frame memory external
HDD
Local disk indicator
Notes
When the indicator is lit, do not turn the power to the
switcher OFF or disconnect the USB cable
1)
.
1) When an external HDD is connected
c VF buttons
These indicate the larger subdivisions (2nd level) of the
menu.
Depending on the selected item, the menu screen contents
change, including the HF button indications.
d HF buttons
These indicate the smaller subdivisions (3rd level) of the
menu.
Depending on the selected item, the menu indications
change.
Functions that are enabled are indicated by an orange bar
in the VF and HF buttons.

Sony MVS-6530 Specifications

General

BNC input ports	48
BNC output ports	32
RJ-45 input ports	4
Product color	Black
AC input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
AC adapter input current	4 A
Storage temperature (T-T)	-20 - 55 °C
Operating temperature (T-T)	5 - 40 °C

Weight and Dimensions

Depth	486 mm
Width	482 mm
Height	176 mm
Weight	21000 g
