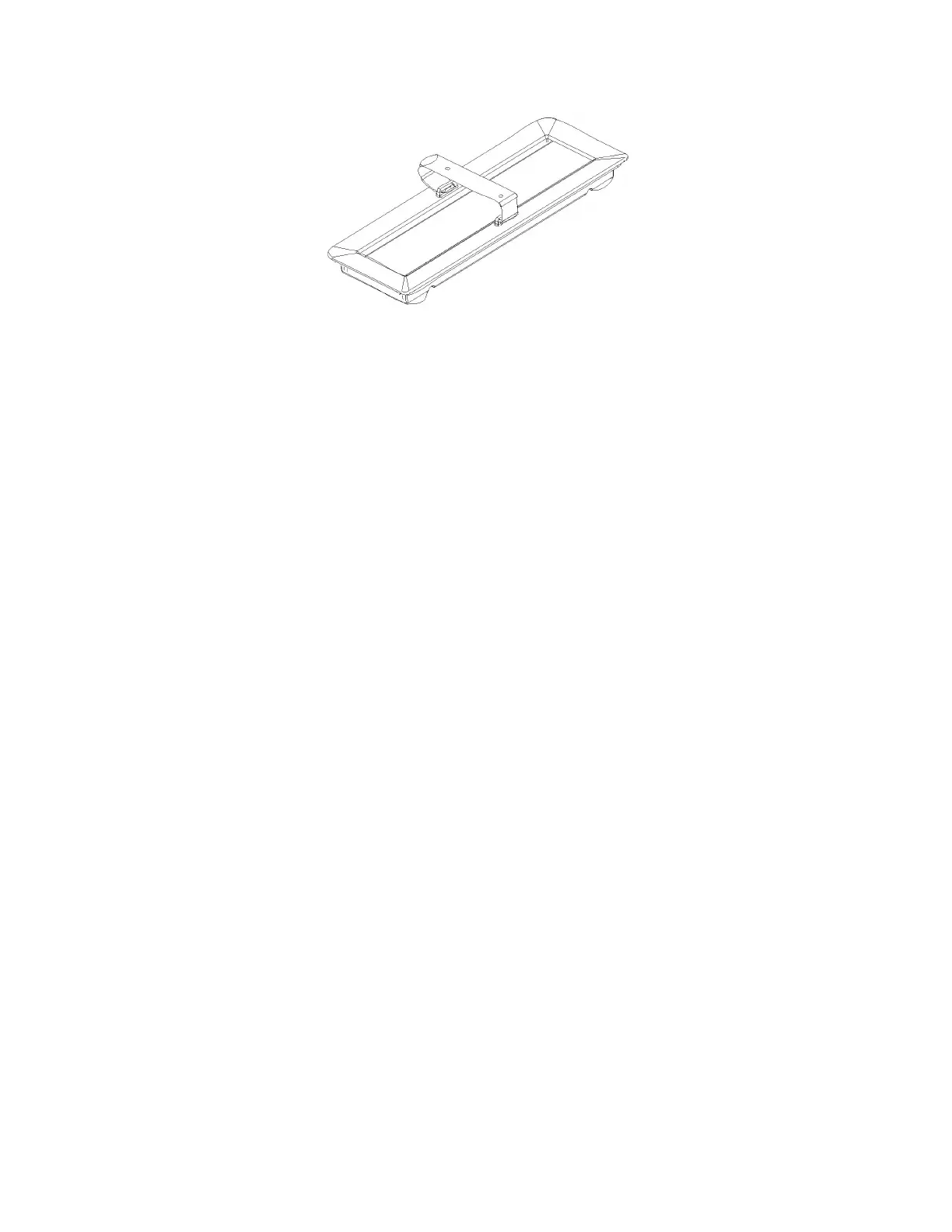

Figure 3-4. Debris Screen
Rotary Spray Arm Assemblies
See Figure 3-2.
Two rotary spray arm assemblies are located in the chamber (one at the top and one at the bottom of the chamber)
and are positioned to reach all surfaces of the load. Rotary spray arm assemblies can be accessed through the chamber
load door for maintenance purposes.
3.2 Control System
See Figure 3-5.
IMPORTANT: Become familiar with all control locations and functions before operating the AMSCO 7052HP Single-Chamber
Washer/Disinfector and/or the AMSCO 7053HP Single-Chamber Washer/Disinfector.
The AMSCO 7052HP Single-Chamber Washer/Disinfector and the AMSCO 7053HP Single-Chamber Washer/Disinfector
are equipped with a control system that features seven preprogrammed operating cycles for processing a variety of
loads as well as a preprogrammed DECONTAMINATION cycle. Additional cycles are also available for operator custom
programming of special cycles.
The system monitors and controls the washer/disinfector operations and functions and also monitors the current
status of the washer/disinfector, including current chamber temperature and time remaining in phase.
The control system offers three operation modes: Cycle, Supervisor and Service. The Cycle mode is always available.
The Supervisor and Service modes are password-protected.
A Standby state is also available to place the equipment in a low energy consumption state instead of shutting down
the washer/disinfector power.
Washer/disinfector is equipped with two touch screens: one on the load side and one on the unload side. Identical
information is displayed on both load and unload sides.
