Steris SYSTEM 1E Service Manual

7-29
764333-675
7. This completes the relocation of the fan assembly
from a vertically mounted to a horizontally
mounted UV chamber configuration.
7.29 UV LAMP SOCKET GROUNDING
The lamp socket is grounded to the UV chamber using
a 8-32 x ½" screw, #8 external-tooth lock washer and 8-
32 nut as shown below. If power supply or lamp socket
wire harness is replaced, ensure ground connection is
made and it is tight. See Figure 7-46.

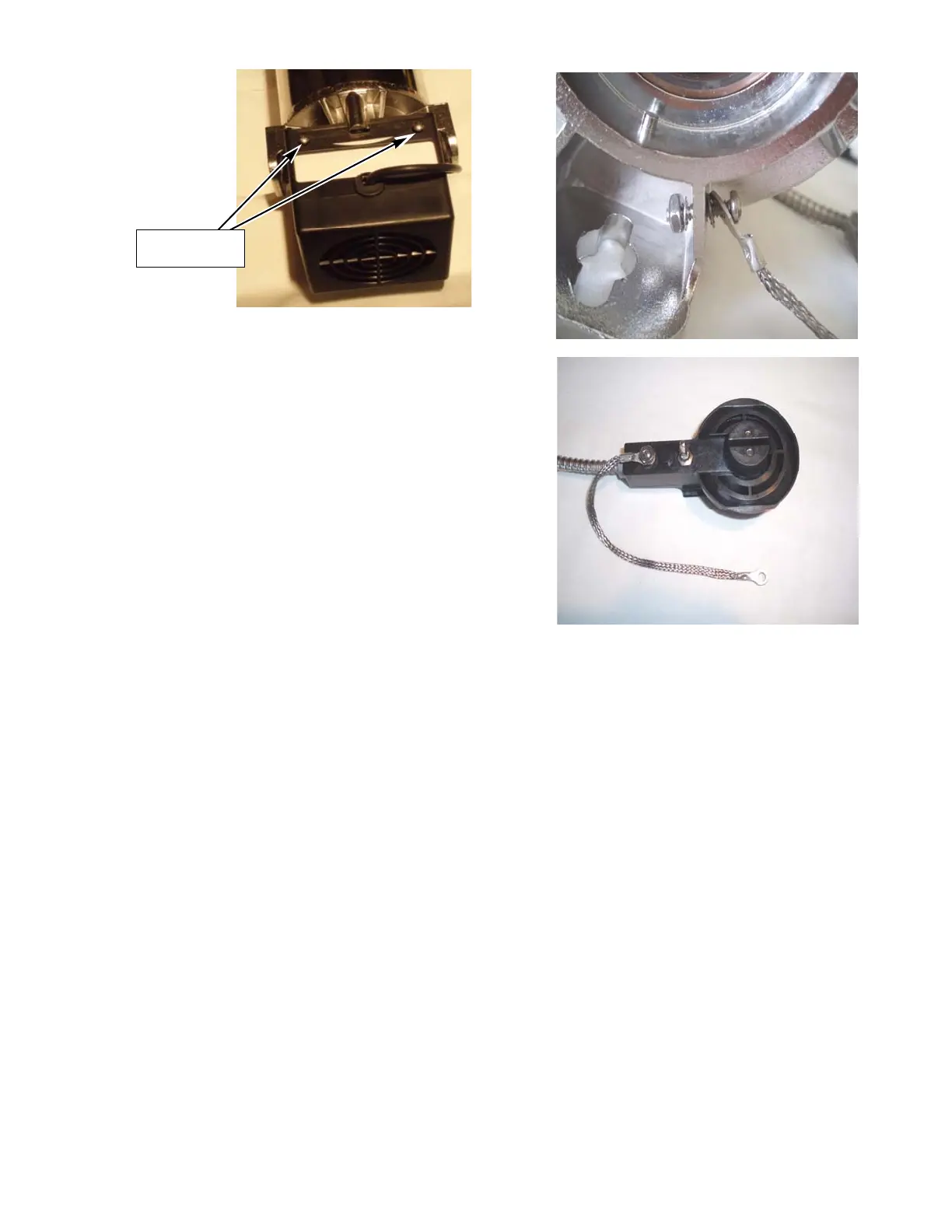

Figure 7-45. Install Fan Cover and Secure with
Screws
Install Pan-Head
Screws
Figure 7-46. Ensure Lamp Socket is Grounded
