4. Unlock lamp socket assembly by pinching wire and
rotating wire form over the lamp socket as shown
in Figure 7-24.
5. Remove lamp socket by lifting up on socket evenly
(see Figure 7-25). Set lamp socket aside carefully.
6. Remove UV lamp by rotating lamp counter-
clockwise and slowly lifting the lamp straight out
of chamber (see Figure 7-26).

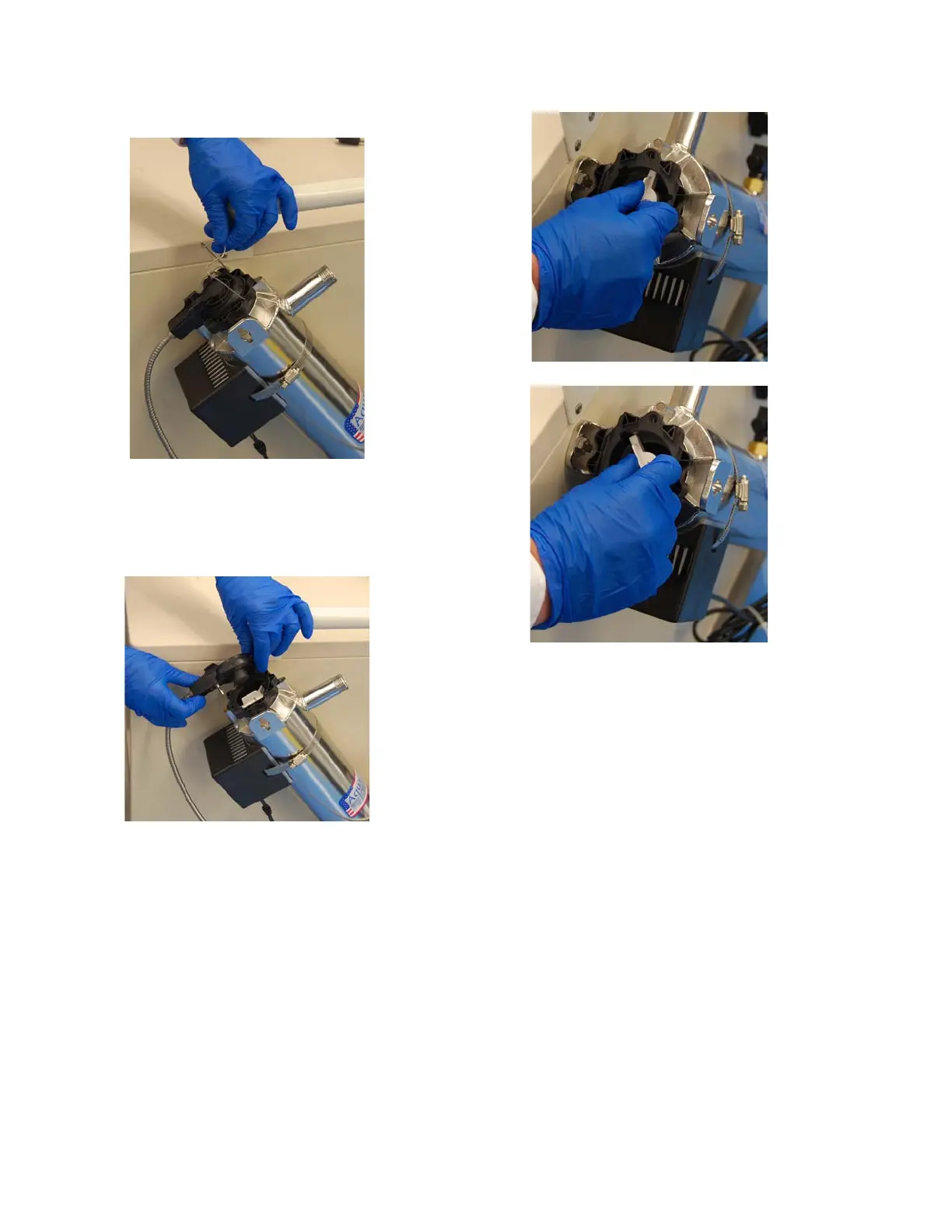

Figure 7-24. Remove Wire Form
Figure 7-25. Remove UV Lamp Shroud
Figure 7-26. Remove UV Lamp Slowly
