5.5 CABLE/HARNESS PIN OUTS
5.4.13 Printer Prints:
FLASH VALUES
SAVED
Flash Memory Parameters Saved.
Occurs on power-up if ROM values are
lost. RAM values are saved to Flash
ROM.
1. Program chips defective.
Replace chips.
2. Main control board failure.
Replace board.
5.4.14 Printer Prints:
FLASH VALUES
LOST. PLEASE
REPROGRAM
Flash Memory Parameters Lost. Occurs
on power-up if both ROM values and
the battery-backed RAM values are lost.
Factory defaults are loaded. RAM
values are saved to Flash ROM.
1. Battery-backed RAM
defective. Replace RAM.
2. Program chips defective.
Replace chips.
5.4.15 Printer Prints:
**LOW BATTERY**
PLEASE REPLACE
Occurs if battery voltage is below
minimum range.
1. Battery-backed RAM
defective. Replace RAM.
2. Main control board failure.
Replace board.
5.4.16 Printer Prints:
KEY X ERROR
Where X is the
defective keypad
pushbutton. See
page 2-6 or page 6-3 for
map of keypad.
Occurs if keypad pushbutton is closed
on power-up.
1. Touch pad defective.
Replace.
2. Key pressed during power
up. Do not press any
keypad pushbuttons
during power-up.
5.4 CONTROL FAULTS (CONTINUED)
Fault
Description Service Instructions

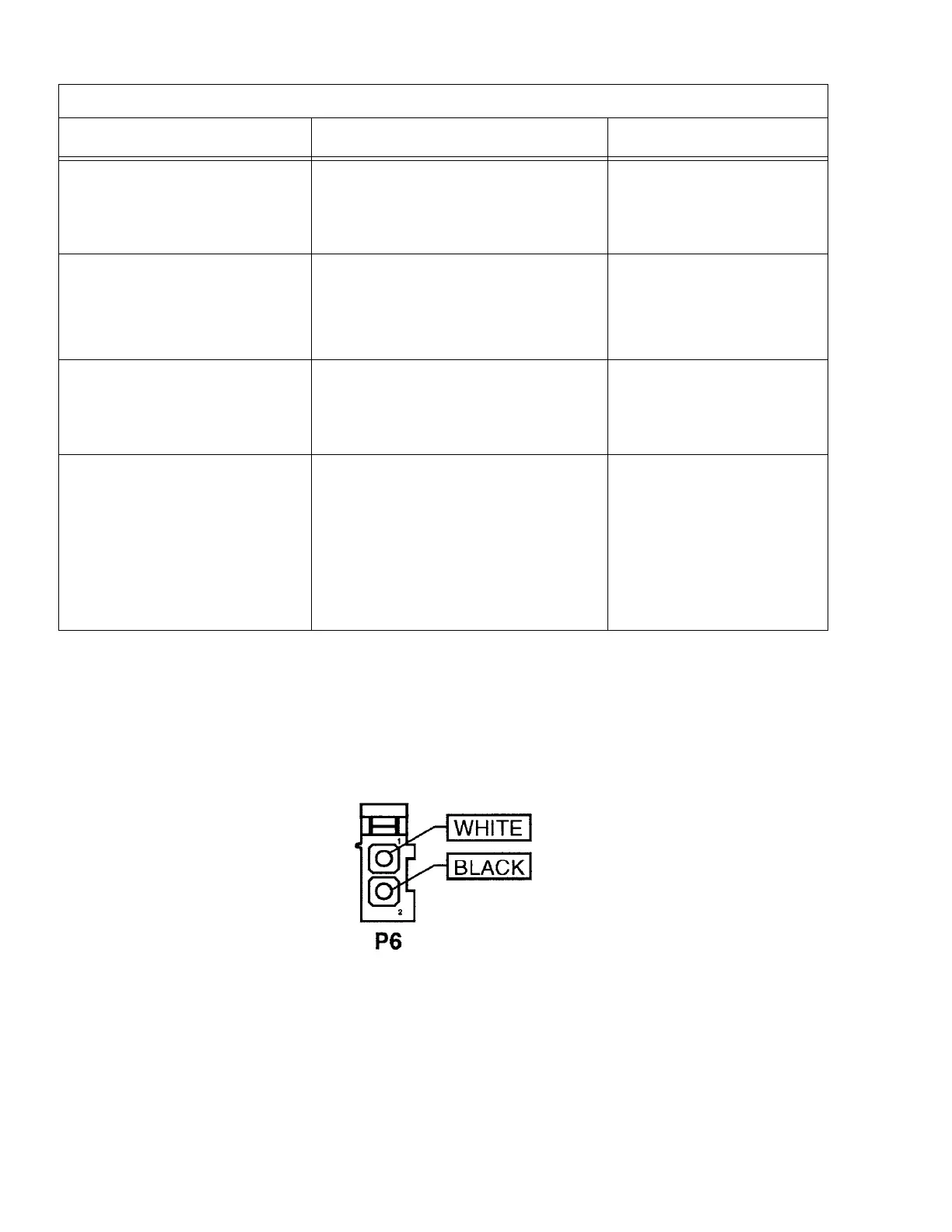

Figure 5-1. Transducer Harness Assembly (P6) PIn Out Locations
