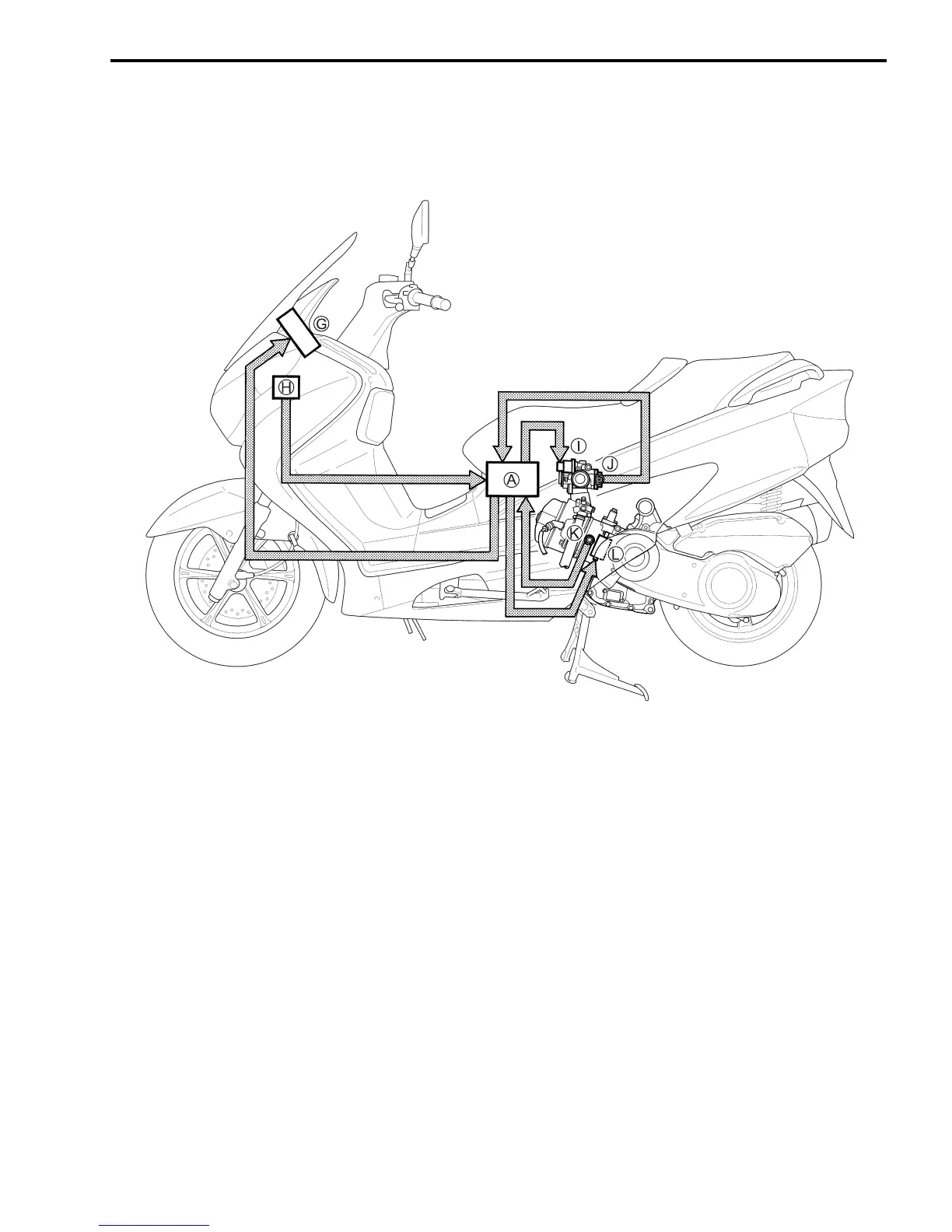

FI SYSTEM DIAGNOSIS 4-13

A ECM

J Throttle Position Sensor (TPS)

G Speedometer

K Engine Coolant Temperature Sensor (ECTS)

H Tip-Over Sensor (TOS)

L Ignition coil (IG coil)

I Idle Speed Control valve (ISC valve)
