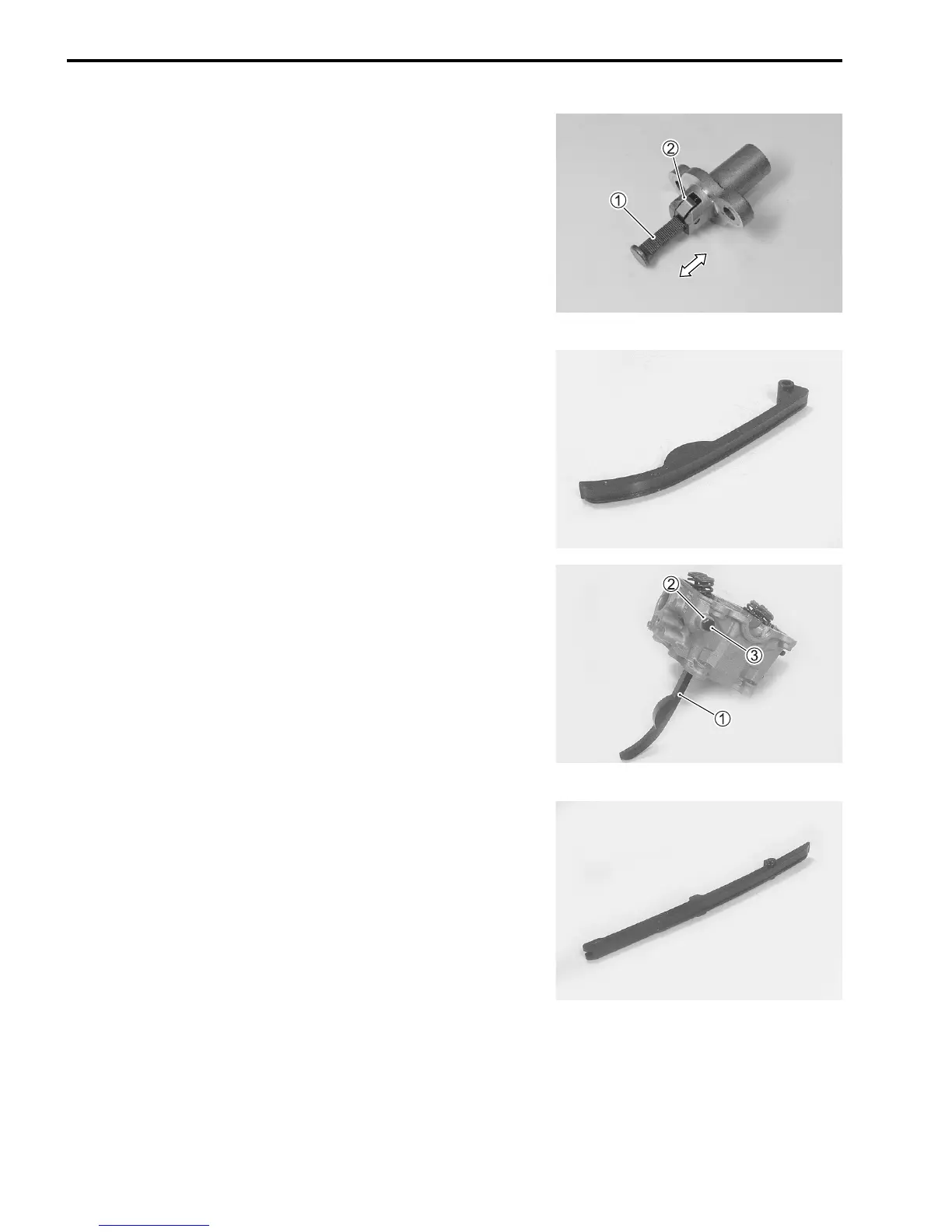

3-30 ENGINE
CAM CHAIN TENSION ADJUSTER
CAM CHAIN TENSION ADJUSTER INSPECTION
• Check that the push rod

1 can slide smoothly with the lock

2
of the ratchet mechanism released. If it does not slide
smoothly or the ratchet mechanism is worn or damaged,
replace the cam chain tension adjuster with a new one.
CAM CHAIN TENSIONER
INSPECTION
• Check the contacting surface of the cam chain tensioner.
• If it is worn or damaged, replace it with a new one.
CAM CHAIN TENSIONER INSTALLATION
• Install the cam chain tensioner

1 to the cylinder head.
• Install the washer

2 to the bolt

3, and then tighten it to the
specified torque.
" Cam chain tensioner bolt: 13 N·m (1.3 kgf-m)
CAM CHAIN GUIDE
INSPECTION
• Check the contacting surfaces of the cam chain guide.
• If it is worn or damaged, replace it with a new one.
