CHASSIS 8-49

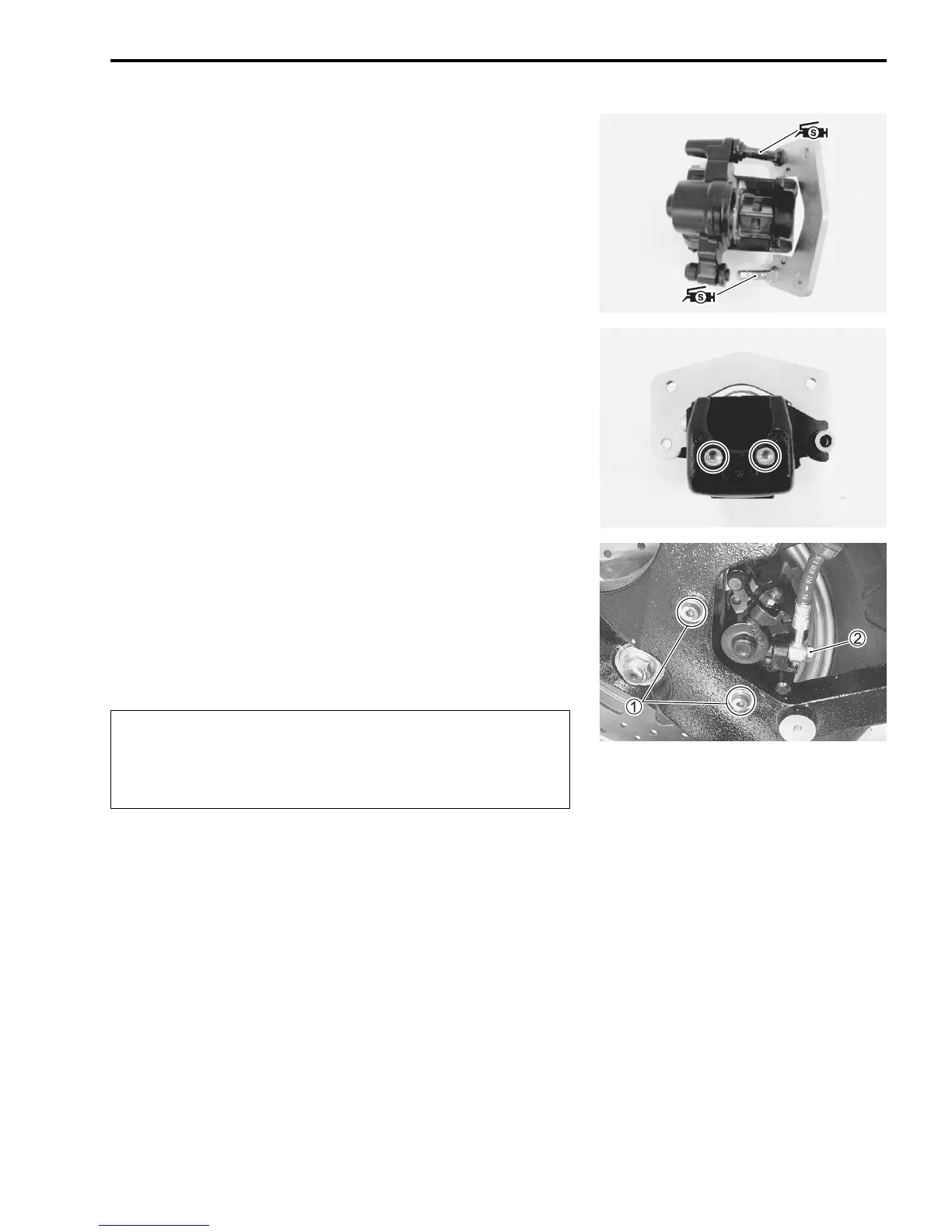

• Apply SUZUKI SILICONE GREASE to the caliper bracket
pins.
. 99000-25100: SUZUKI SILICONE GREASE
or equivalent
• Install the brake pads and brake pad bolts.
$ Brake pad bolt: 18 N·m (1.8 kgf-m)
• Tighten the brake caliper mounting bolts

1.
$ Brake caliper mounting bolt: 26 N·m (2.6 kgf-m)
• Tighten the brake hose union bolt

2.
$ Brake hose union bolt: 23 N·m (2.3kgf-m)
• Install the muffler. ("6-3)
#
REAR BRAKE MASTER CYLINDER
REMOVAL AND DISASSEMBLY
Remove and disassemble the rear brake master cylinder in the
same manner as the front one. ("8-42)
REAR BRAKE MASTER CYLINDER
INSPECTION
Inspect the rear brake master cylinder in the same manner as
the front one. ("8-43)
* The seal washers should be replaced with the new
ones to prevent fluid leakage.
* Bleed air from the brake system after reassembling
the caliper. ("2-17)
