COOLING AND LUBRICATION SYSTEM 7-13

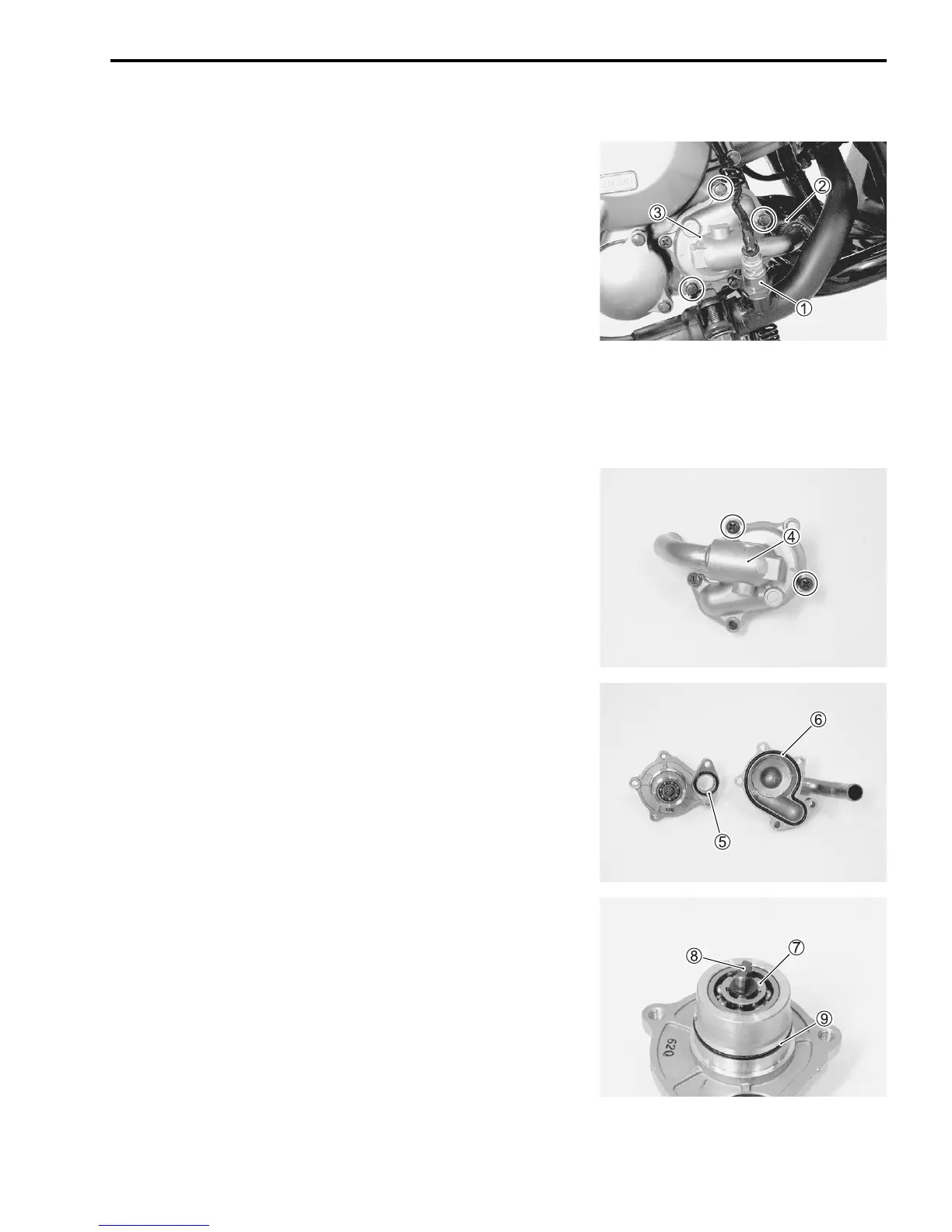

WATER PUMP
REMOVAL AND DISASSEMBLY
NOTE:
Before draining engine oil and engine coolant, inspect engine oil
and coolant leakage between the water pump and crankcase. If
engine oil is leaking, visually inspect the oil seal and O-ring. If
engine coolant is leaking, visually inspect the mechanical seal
and seal washer. ($ 7-15)
• Remove the rear lower leg shield. ($ 8-8)
• Drain engine coolant. ($2-12)
• Drain engine oil. ($2-9)
• Remove the HO2 sensor

1.
• Disconnect the radiator hose

2.
• Remove the water pump

3.
• Remove the water pump cover

4.
• Remove the O-rings

5 and

6.
• Remove the E-ring

7.
• Draw out the water pump shaft

8.
• Remove the O-ring

9.
To Next Page
