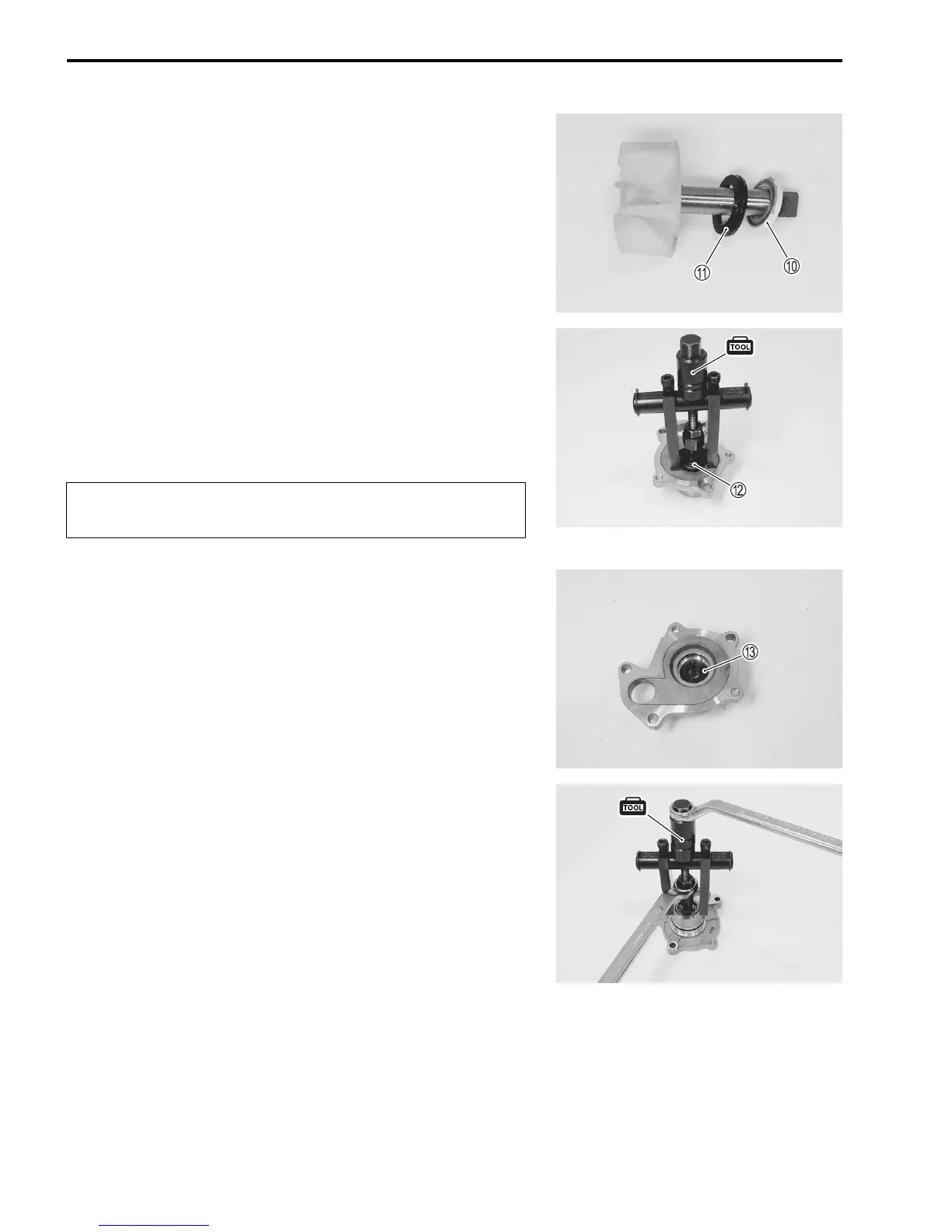

7-14 COOLING AND LUBRICATION SYSTEM
• Remove the mechanical seal ring

0 and rubber seal

A from
the impeller.
• Remove the mechanical seal

B with the special tool.
& 09921-20240: Bearing remover set (10 mm)
NOTE:
If there is no abnormal condition, the mechanical seal removal is
not necessary.
!
• Remove the oil seal

C.
• Remove the bearing.
& 09921-20240: Bearing remover set (10 mm)
The removed mechanical seal must be replaced with a
new one.
