CHASSIS 8-47
)
#
REAR BRAKE CALIPER REMOVAL AND
DISASSEMBLY

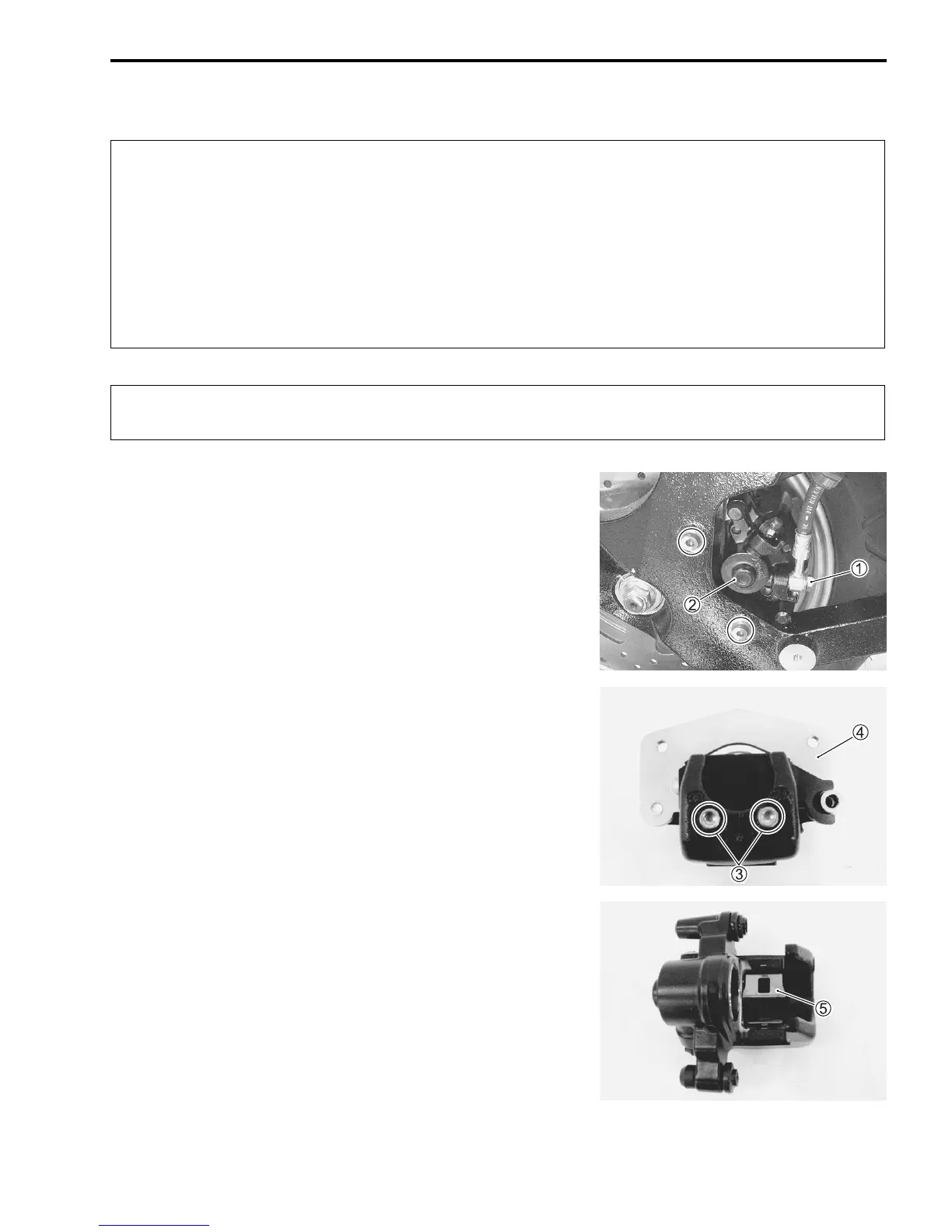

• Remove the muffler. ("6-2)
• Remove the brake hose union bolt

1.
• Remove the brake caliper

2.
• Remove the brake pad bolt

3.
• Remove the caliper bracket

4 and brake pads.
• Remove the pad spring

5.
* This brake system is filled with an ethylene glycol-based DOT 4 brake fluid. Do not use mix
different types of fluid such as silicone-based or petroleum-based.
* Do not use any brake fluid taken from old, used or unsealed containers. Never reuse brake
fluid left over from the last servicing or stored for long periods.
* When storing the brake fluid, seal the container completely and keep away from children.
* When replenishing brake fluid, take care not to get dust into fluid.
* When washing brake components, use fresh brake fluid. Never use cleaning solvent.
* A contaminated brake disc or brake pad reduces braking performance. Discard contaminated
pads and clean the disc with high quality brake cleaner or neutral detergent.
Handle brake fluid with care: The fluid reacts chemically with paint, plastics, rubber materials
etc. and will damage then severely.
