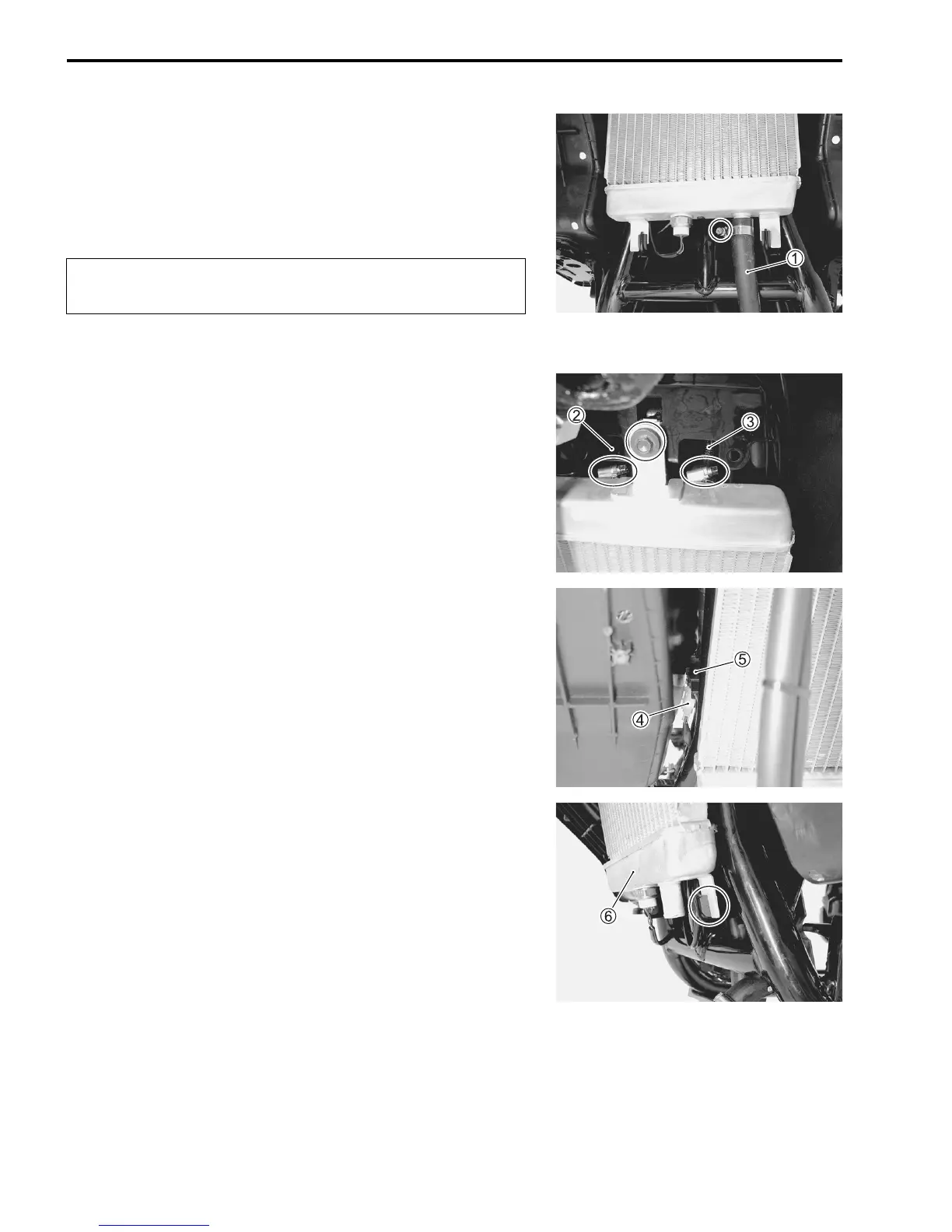

7-4 COOLING AND LUBRICATION SYSTEM
REMOVAL
• Remove the lower leg shield. ($8-7)
• Remove the rear lower leg shield. ($8-8)
• Place a container under the radiator hose.
• Remove the radiator cap.
"
• Disconnect the radiator hose

1 to let coolant drain off.
• Remove the radiator mounting bolt.
• Disconnect the radiator hoses

2 and

3.
• Remove the clamp.
• Disconnect the cooling fan thermo-switch coupler (White)

4.
• Disconnect the cooling fan lead wire coupler (Black)

5.
• Remove the radiator

6.
Do not remove the radiator cap when the radiator is
hot.
