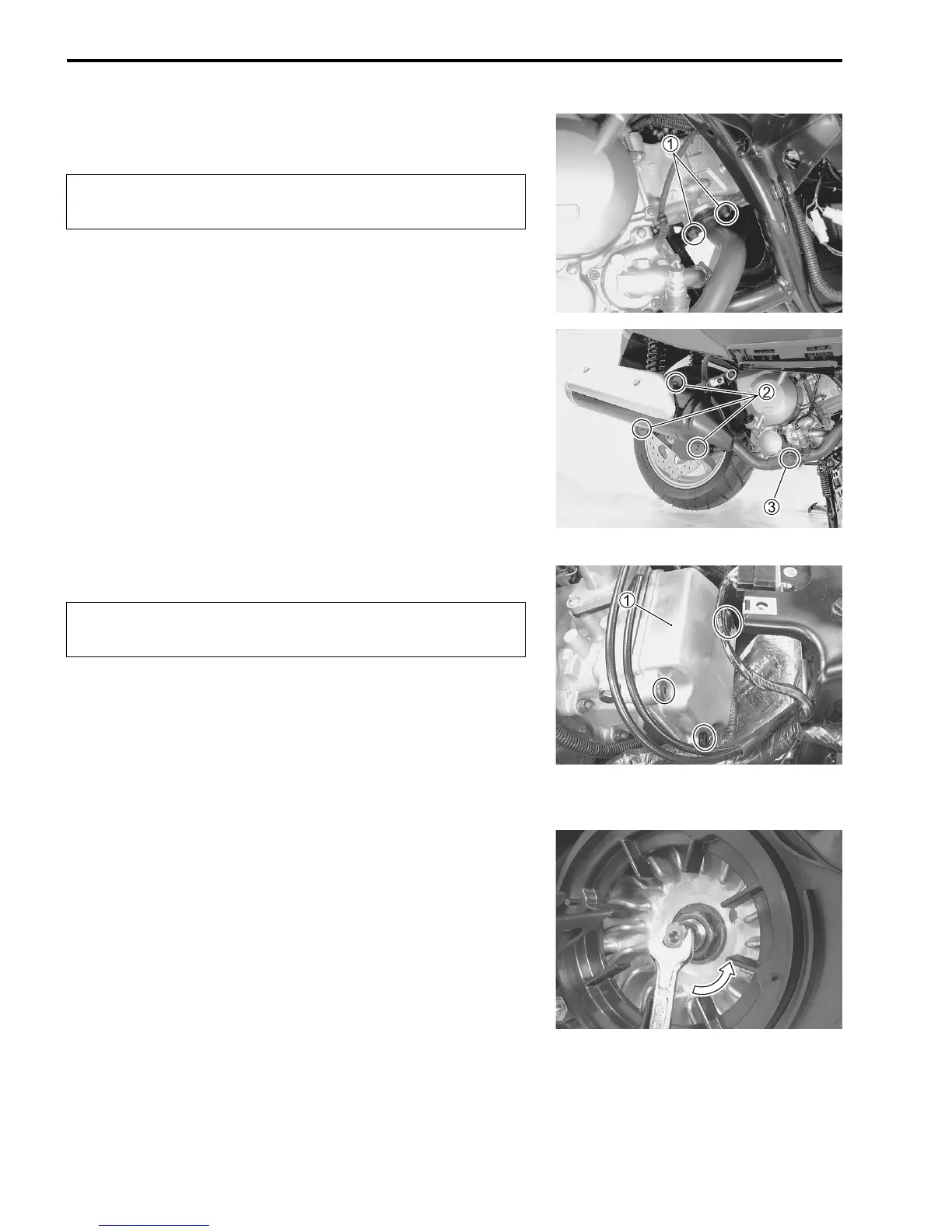

2-6 PERIODIC MAINTENANCE
EXHAUST PIPE NUTS AND
MUFFLER BOLTS
• Remove the right side leg shield. ("8-8)
• Remove the rear lower leg shield. ("8-8)
• Tighten the exhaust pipe nuts

1, muffler mounting bolts

2
and muffler connecting bolt

3 to the specified torque.
# Exhaust pipe nut: 23 N·m (2.3 kgf-m)
Muffler mounting bolt: 23 N·m (2.3 kgf-m)
Muffler connecting bolt: 23 N·m (2.3 kgf-m)
VALVE CLEARANCE
REMOVAL
• Remove the trunk box. ("8-11)
• Remove the cooling fan cover and cooling fan filter.
("2-5)
• Remove the spark plug. ("2-7)
• Remove the cylinder head cover

1.
INSPECTION
The valve clearance specification is different for intake and
exhaust valves. Valve clearance adjustment must be checked
and adjusted, 1) at the time of periodic inspection, 2) when the
valve mechanism is serviced, and 3) when the camshaft is dis-
turbed by removing it for servicing.
$ Valve clearance (when cold):
Standard: IN. : 0.05 – 0.10 mm
EX. : 0.17 – 0.22 mm
Tighten initially at 1 000 km (600 miles, 3 months) and
every 4 000 km (2 500 miles, 20 months) thereafter.
Inspect initially at 1 000 km (600 miles, 3 months) and
every 4 000 km (2 500 miles, 20 months) thereafter.
