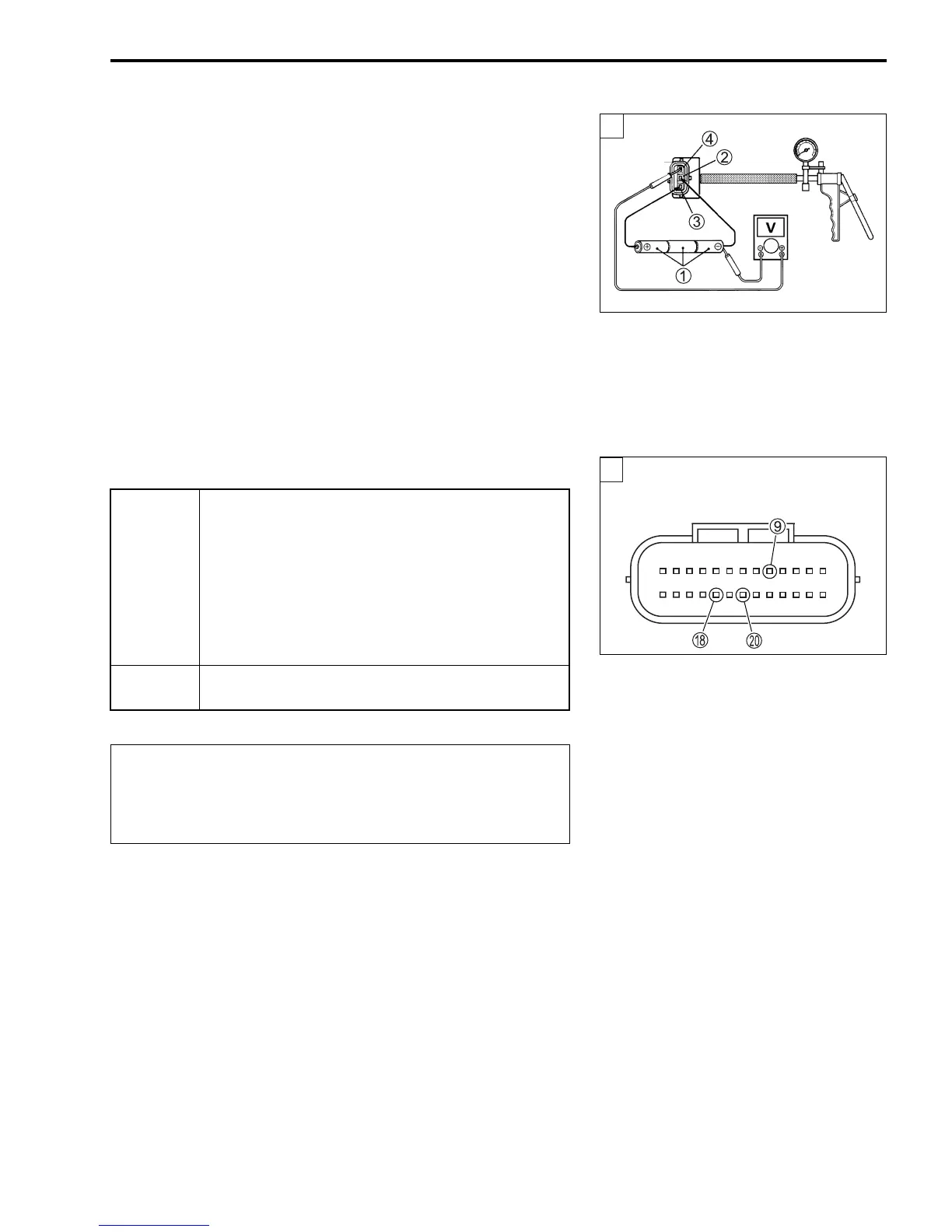

FI SYSTEM DIAGNOSIS 4-37
Step 3
1) Turn the ignition switch OFF.
2) Remove the IAP sensor.
3) Connect the vacuum pump gauge to the vacuum port of the
IAP sensor.
Arrange 3 new 1.5 V batteries in series
î›§
1 (check that total
voltage is 4.5 – 5.0 V) and connect
î›§
- terminal to the ground
terminal
î›§
2 and
î›§
+ terminal to the VCC terminal
î›§
3.
4) Check the voltage between V-out
î›§
4 and ground. Also, check
if voltage reduces when vacuum is applied up to 53 kPa (400
mmHg) by using vacuum pump gauge.
! 09917-47011: Vacuum pump gauge
09900-25008: Multi-circuit tester set
& Tester knob indication: Voltage (')
Is the voltage OK?
"
5) After repairing the trouble, clear the DTC using SDS tool.
(#4-26)
YES
• P, O/Bl or B wire open or shorted to ground, or
poor
î›§
H,
î›§
9 or
î›§
J connection
• If wire and connection are OK, intermittent trou-
ble or faulty ECM.
• Recheck each terminal and wire harness for
open circuit and poor connection.
• Replace the ECM with a known good one, and
inspect it again.
NO
If check result is not satisfactory, replace the IAP
sensor with a new one.
When using the multi-circuit tester, do not strongly
touch the terminal of the ECM coupler with a needle
pointed tester probe to prevent the terminal damage
or terminal bend.
3
3
ECM coupler (Harness side)
