7-6 COOLING AND LUBRICATION SYSTEM
RADIATOR

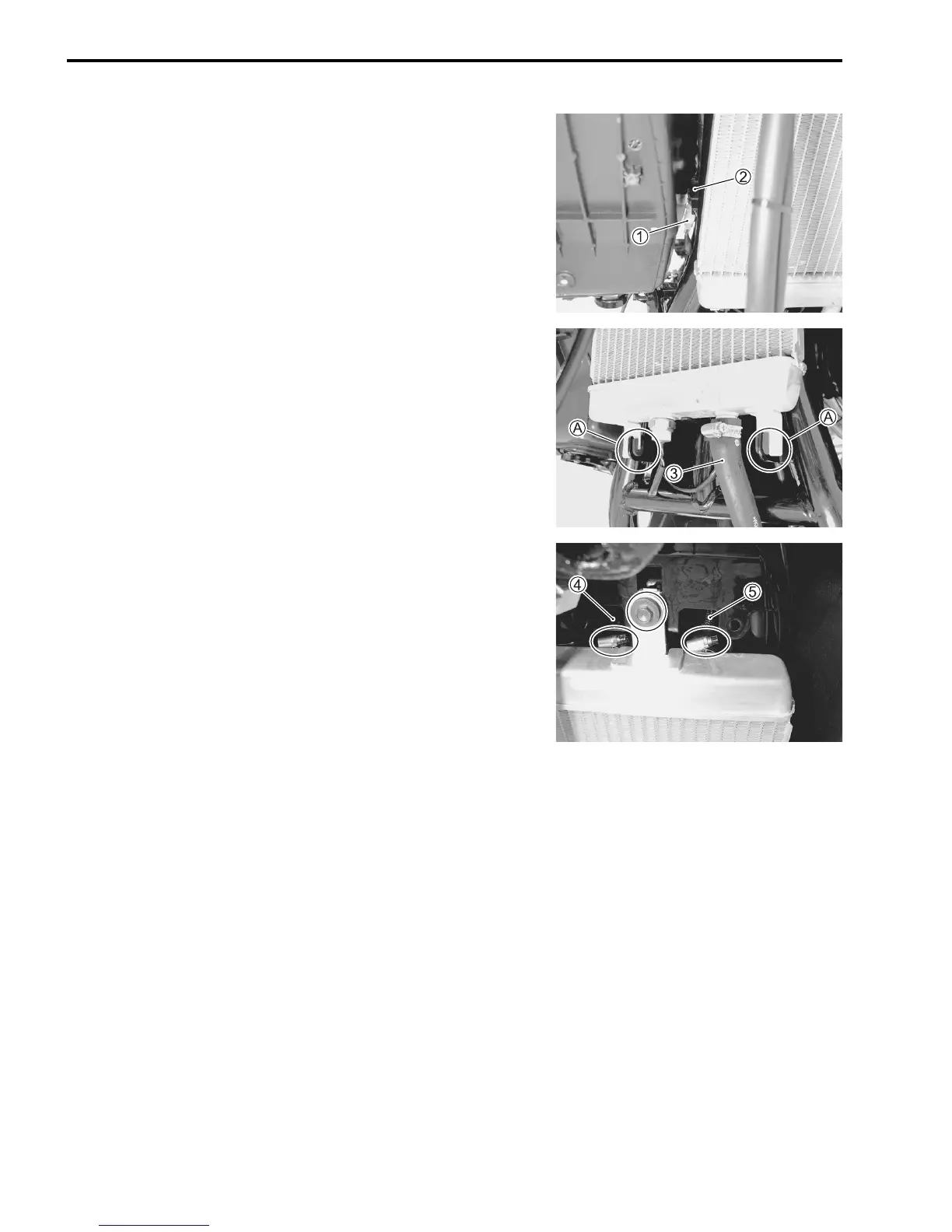

• Connect the cooling fan thermo-switch coupler

1 and the
cooling fan lead wire coupler

2.
• Clamp the cooling fan thermo-switch lead wire and cooling
fan lead wire with the frame.
• With the hooked part

A connected to the radiator end, install
the radiator.
• Connect the radiator hose

3.
• Connect the radiator hoses

4,

5.
• Tighten the radiator mounting bolt securely.
• After the radiator has been installed, fill engine coolant and
perform air bleeding. ($2-13)
