CHASSIS 8-21

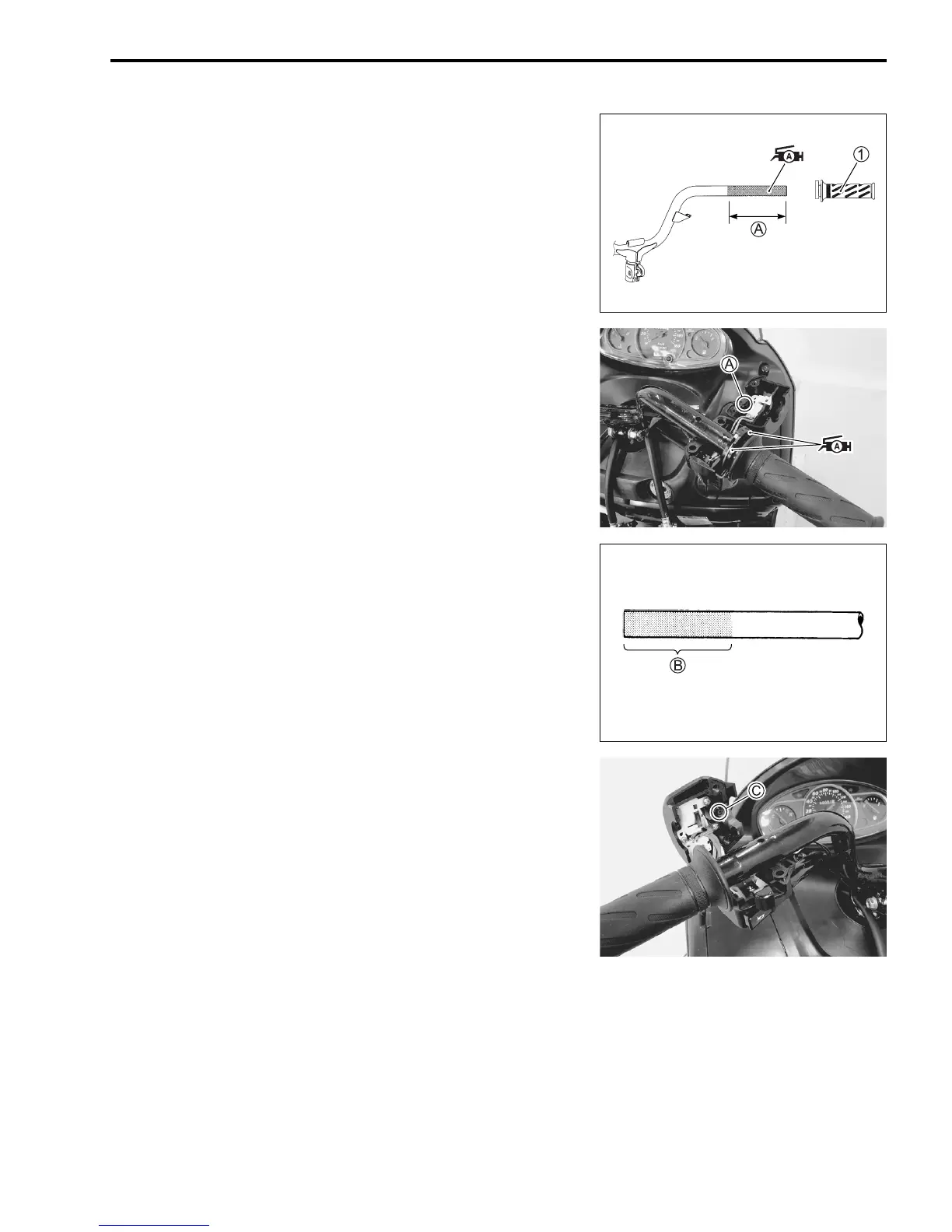

• Apply grease to the hatched area
A before installing the
throttle grip
1.
A: 135 mm
' 99000-25010: SUZUKI SUPER GREASE “A”
or equivalent
• Insert the projection
A of the right handlebar switch into the
hole of the handlebar.
• Apply grease to the throttle cables and cable pulley.
' 99000-25010: SUZUKI SUPER GREASE “A”
or equivalent
• Install the front brake master cylinder. ("8-45)
• Apply handle grip bond to the left handlebar end
B before
installing the left handlebar grip rubber.
• Insert the projection
C of the left handlebar switch box into
the hole of the handlebars.
• Install the rear brake master cylinder. ("8-50)
After installing the handlebars, the following adjustments are
required before riding.
• Wiring harness, cable and hose routing.
("10-15, -17 and -19)
• Throttle cable play ("2-11)
