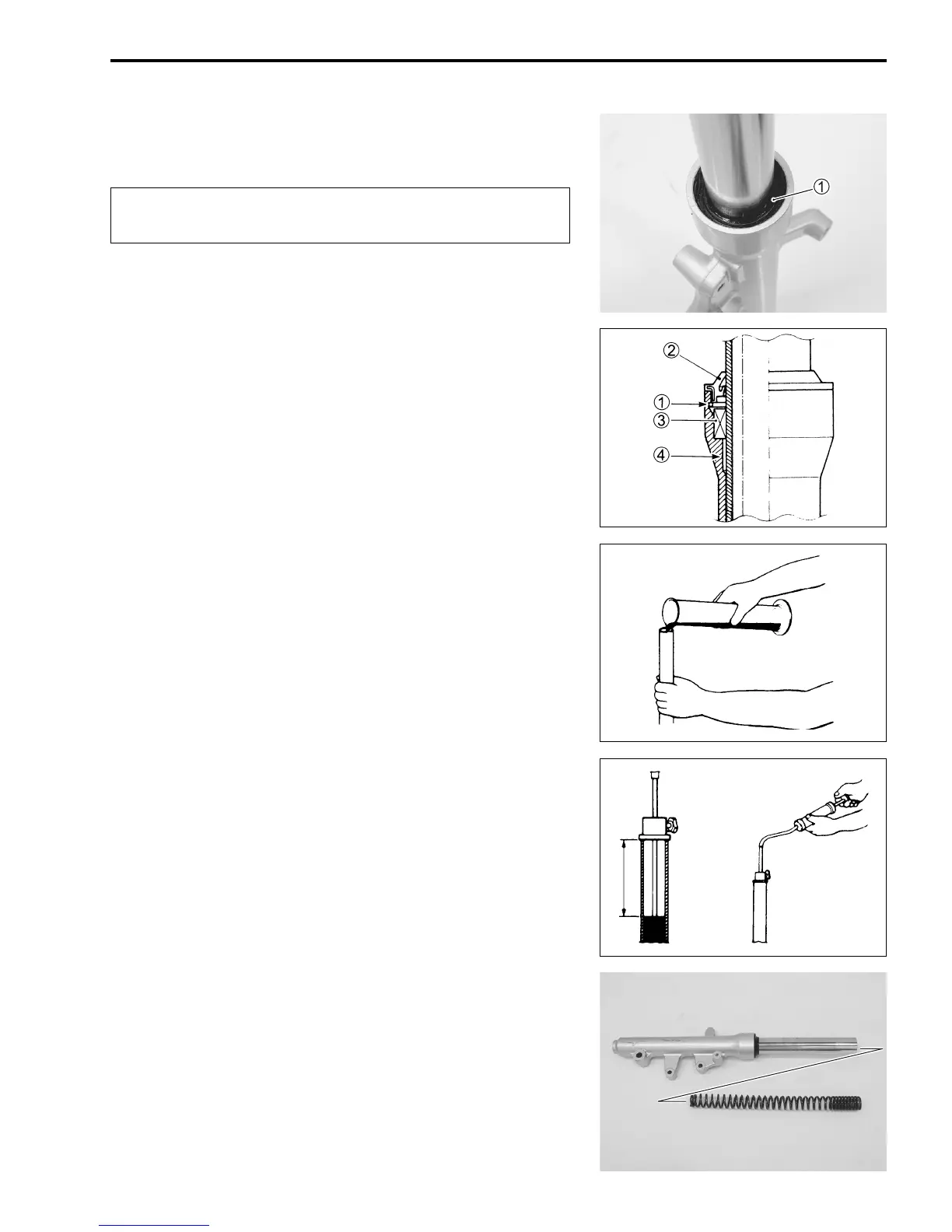

CHASSIS 8-27
STOPPER RING/DUST SEAL
• Install the oil seal stopper ring

1 and dust seal

2.
#

1 Oil seal stopper ring

2 Dust seal

3 Oil seal

4 Slide metal
FRONT FORK OIL
• Pour the specified amount of fork oil and stroke the tube sev-
eral times to expel air.
% Capacity (each leg): 141 ml
, 99000-99044-10G: FORK OIL G-10
• With the front fork held in vertical position, compress the inner
tube all the way.
• Wait until the fluid level stabilizes, measure and adjust the
level to specification using the special tool.
% Oil level (without spring): 101 mm
& 09943-74111: Front fork oil level gauge
FRONT FORK SPRING
• Install the front fork spring.
NOTE:
The smaller pitch end of the spring must face upward.
Make sure that the stopper ring is securely fitted into
the groove on the outer tube.
To Next Page
