CHASSIS 8-33

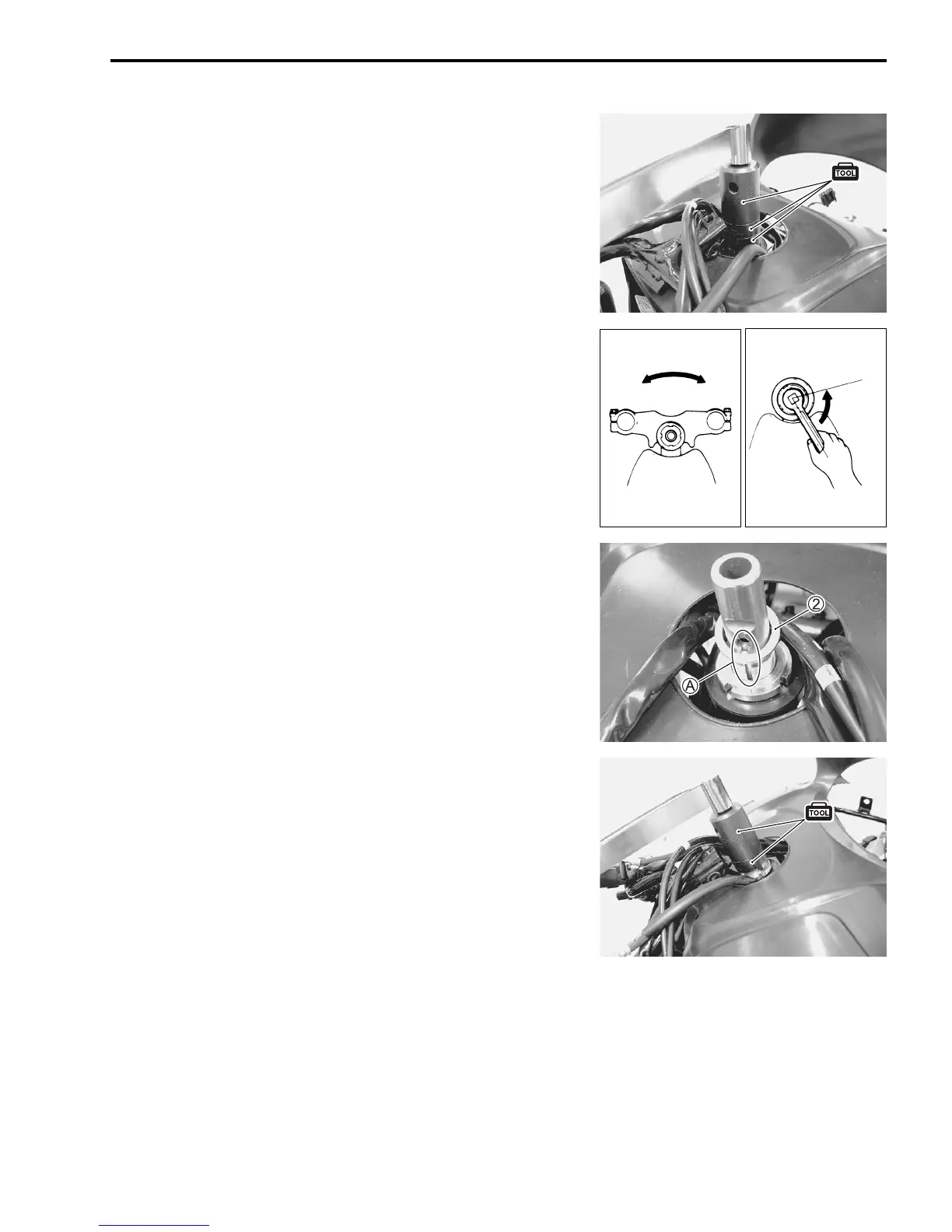

• Tighten the steering stem nut.
$ Steering stem nut: 45 N·m (4.5 kgf-m)
& 09940-14911: Steering socket wrench
09940-11420: Steering stem nut socket
09940-11430: Steering stem nut socket
• Turn the steering stem right and left 5 – 6 times to break-in
the bearing.
• Return the steering stem nut by 1/4 – 1/2 of a turn.
• In this condition, check that the steering stem can turn
smoothly with no rattle and stiffness.
• If there is a rattle or heavy movement, adjust the tightness by
the stem nut.
NOTE:
This adjustment will vary from motorcycle to motorcycle.
•Fit the washer

2 with its tab

A engaged with the steering
stem groove.
• Tighten the steering stem lock nut to the specified torque with
special tools.
$ Steering stem lock nut: 30 N·m (3.0 kgf-m)
& 09940-14911: Steering socket wrench
09940-11420: Steering stem nut socket
NOTE:
Tightening the steering stem lock nut can affect the steering
stem nut adjustment. Therefore, after tightening the steering
stem lock nut, check the steering movement again and adjust if
necessary.
1/4 – 1/2 turn
