CHASSIS 8-41

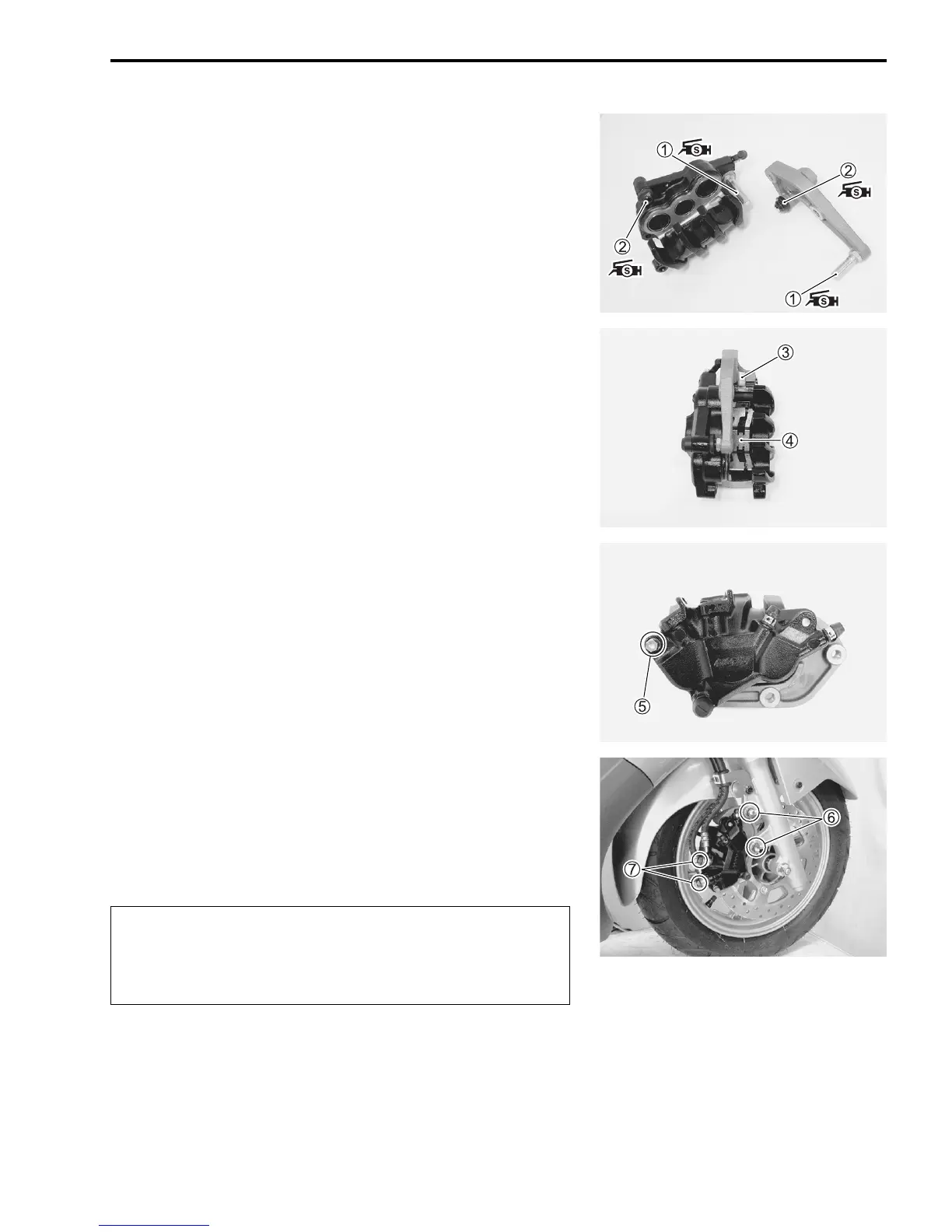

• Apply SUZUKI SILICONE GREASE to the caliper bracket pin

1 and boots

2.
. 99000-25100: SUZUKI SILICONE GREASE
or equivalent
• Install the caliper bracket.
• Install the brake pad springs

3 and

4 properly.
• Install the brake pads.
• Install the brake pad bolt

5.
$ Brake pad bolt: 18 N·m (1.8 kgf-m)
• Tighten the brake caliper mounting bolts

6.
• With the hose end contacted to the stopper, tighten the brake
hose union bolt

7.
$ Brake caliper mounting bolt: 26 N·m (2.6 kgf-m)
Brake hose union bolt: 23 N·m (2.3 kgf-m)
#
* The seal washers should be replaced with the new
ones to prevent fluid leakage.
* Bleed air from the brake system after reassembling
the caliper. ("2-17)
