CHASSIS 8-45

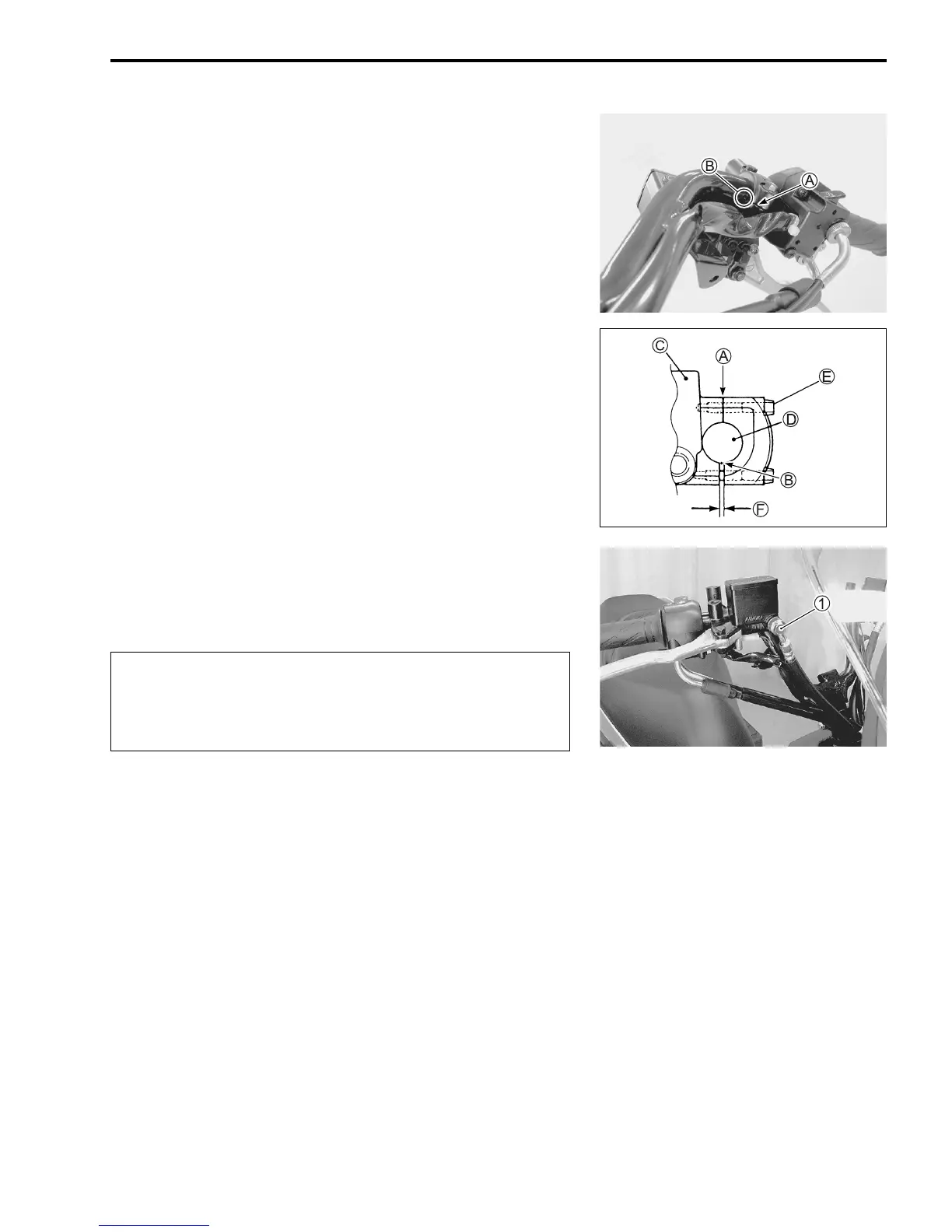

• When installing the master cylinder onto the handlebars, align
the master cylinder holder’s mating surface

A with the punch
mark

B on the handlebars and tighten the upper holder bolt
first.

A Mating surface

B Punch mark

C Master cylinder

D Handlebars

E Upper holder bolt

F Clearance
$ Master cylinder holder bolt:
Upper: 12 N·m (1.2 kgf-m)
Lower: 10 N·m (1.0 kgf-m)
• After contacting the brake hose union to the stopper, tighten
the union bolt

1 to the specified torque.
$ Brake hose union bolt: 23 N·m (2.3 kgf-m)
#
* The seal washers should be replaced with the new
ones to prevent fluid leakage.
* Bleed air from the brake system after reassembling
the master cylinder. ("2-17)
