Suzuki Burgman UH125 Service Manual

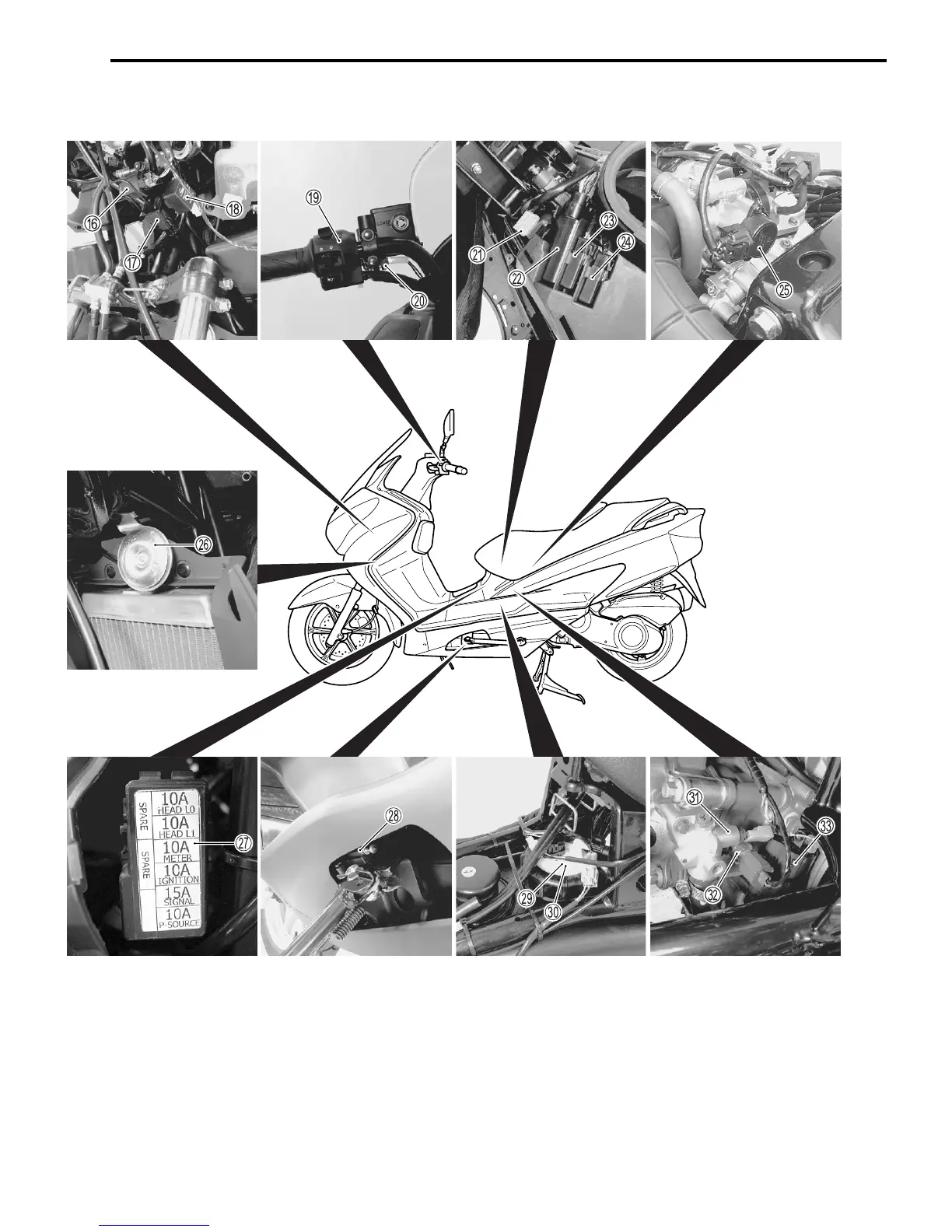

ELECTRICAL SYSTEM 9-7

F TO sensor

G Side-stand relay

H Turn signal relay

I Handlebar switch (LH)

J Combination brake switch

K Main fuse

L ECM

M Brake start relay

N Main relay

O TP sensor

P Horn

Q Fuse box

R Side-stand switch

S Fuel pump

T Fuel level gauge

U Engine coolant temperature gauge

V ECT sensor

W Ignition coil
