Suzuki Burgman UH125 Service Manual

ELECTRICAL SYSTEM 9-11

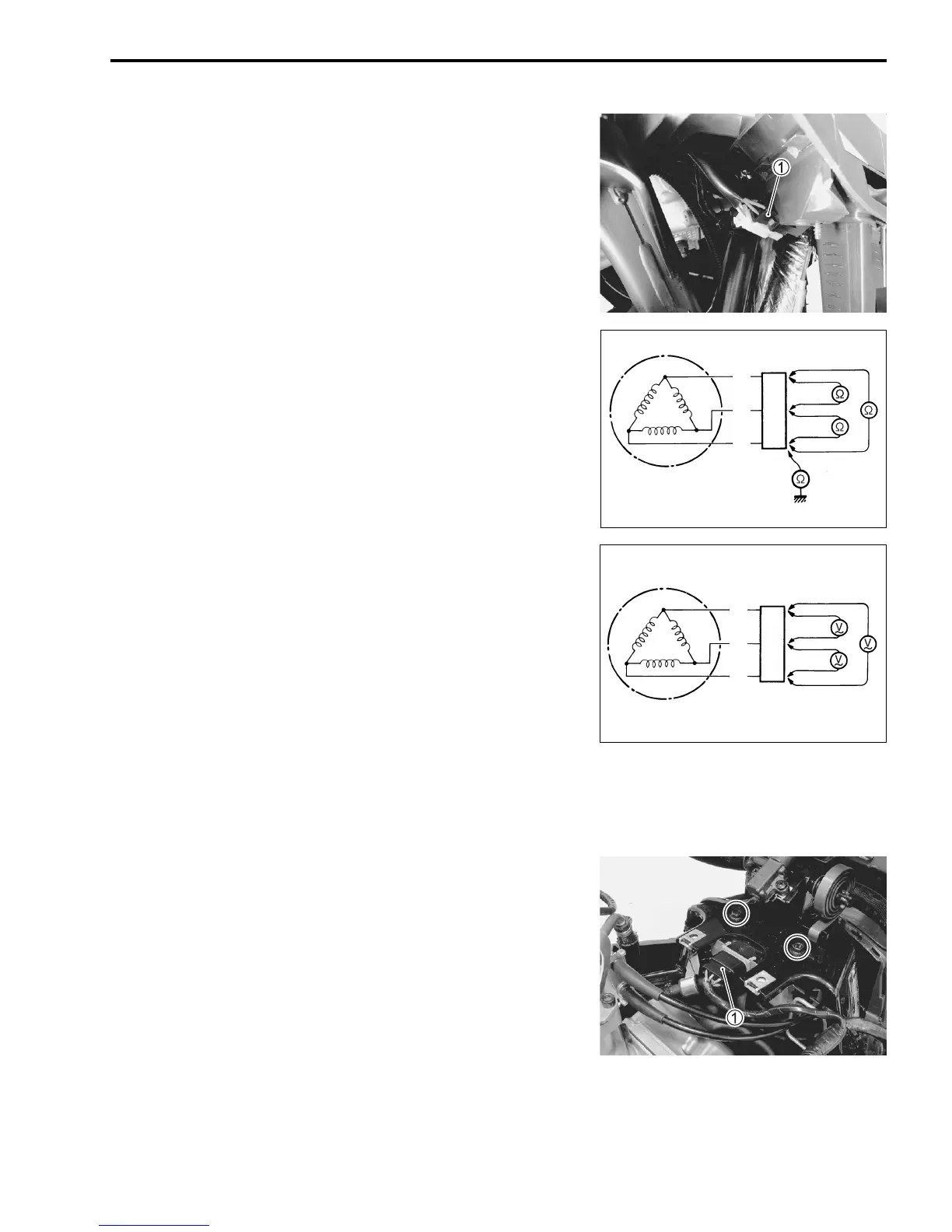

GENERATOR COIL RESISTANCE
• Remove the right side leg shield. (!8-8)
• Disconnect the generator coupler

1.
• Measure the resistance between the three lead wires.
If the resistance is out of specified value, replace the stator
with a new one. Also, check that the generator core is insu-
lated properly.
$ Generator coil resistance:
0.2 – 0.8
Ω
(Y – Y)
∞ Ω (
Y – Ground)
" 09900-25008: Multi-circuit tester set
( Tester knob indication: Resistance (Ω)
NOTE:
When making above test, it is not necessary to remove the gen-
erator.
GENERATOR NO-LOAD PERFORMANCE
• Disconnect the generator coupler. (!Above)
• Start the engine and keep it running at 5 000 r/min.
• Using the multi-circuit tester, measure the voltage between
three lead wires.
If the tester reads under the specified value, replace the gen-
erator with a new one.
$ Generator no-load performance:
60 V (AC) and more at 5 000 r/min
(When engine is cold)
" 09900-25008: Multi-circuit tester set
' Tester knob indication: Voltage (~)
REGULATOR/RECTIFIER
• Remove the trunk box. (!8-11)
• Disconnect the regulator/rectifier coupler

1.
• Remove the regulator/rectifier.
Y
Y
Y
Y
Y
Y
