ELECTRICAL SYSTEM 9-29

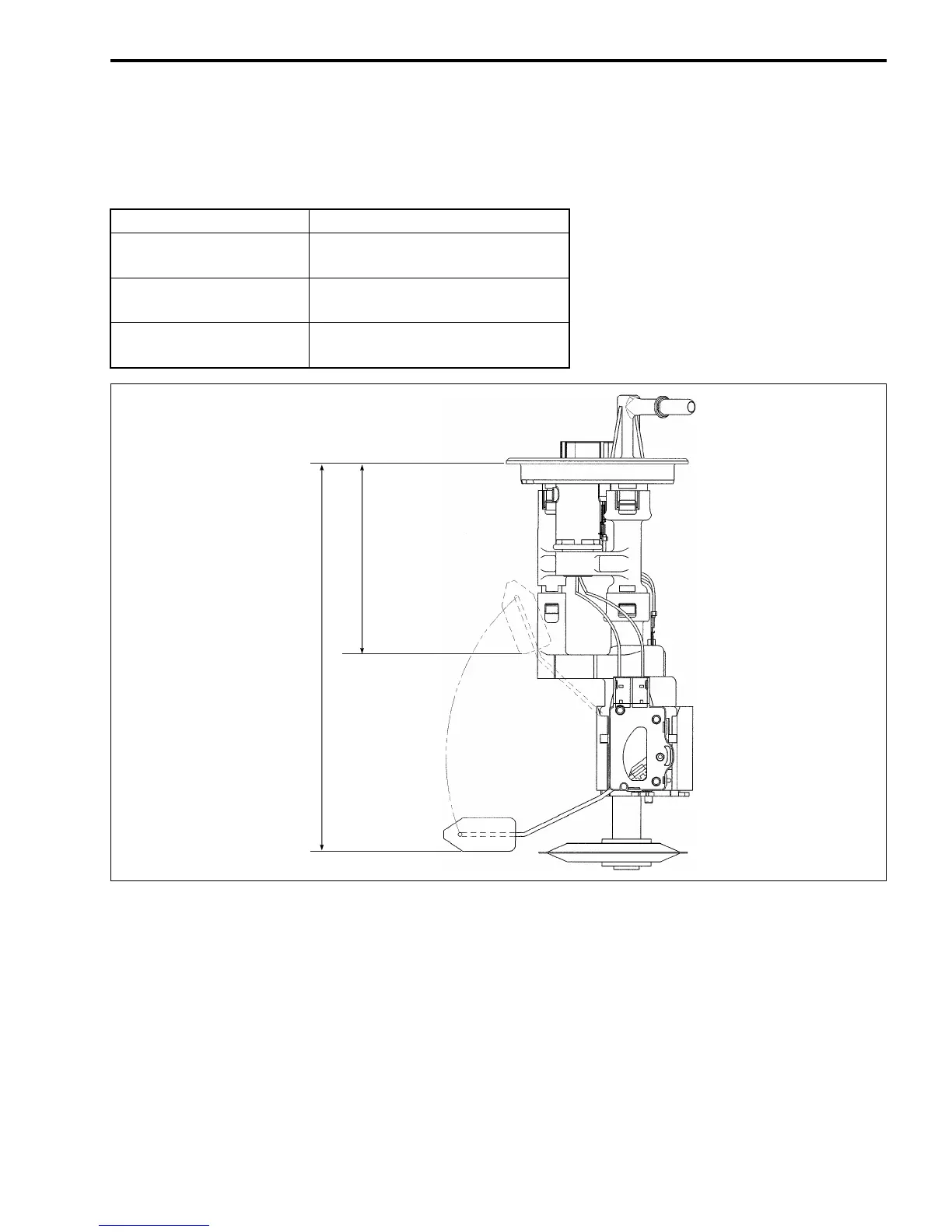

FUEL LEVEL GAUGE INSPECTION
Measure resistance between the terminals when the float is at
the position instead below.
" 09900-25008: Multi-circuit tester set
• If the resistance measured is out of the specification, replace
the fuel pump a new one.
Fuel float position Resistance between terminals
F:96.6 mm from
tank mating face
Approx. 10 Ω
1/2:154.6 mm from
tank mating face
Approx. 46 Ω
E:192.2 mm from
tank mating face
Approx. 84 Ω
E
F
