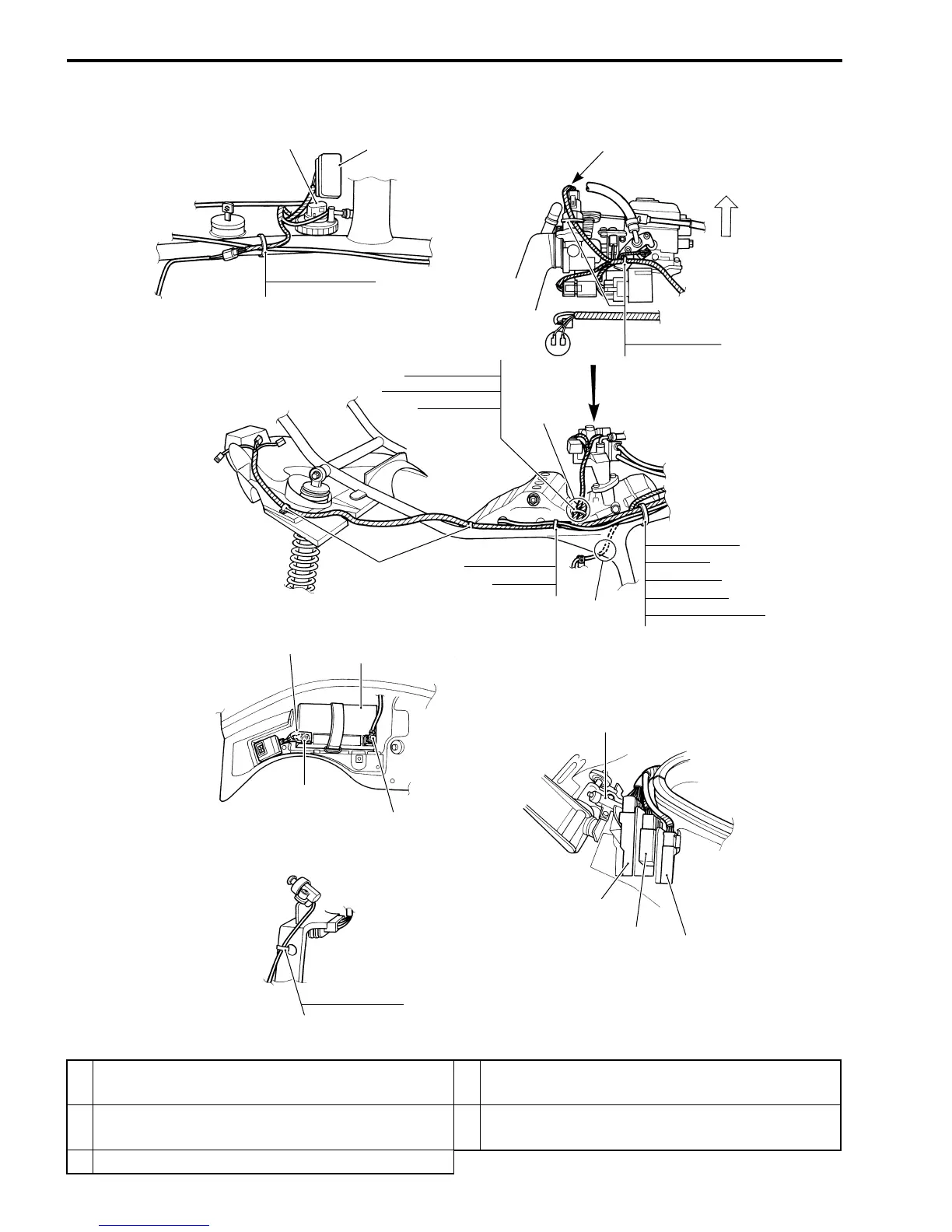

10-16 SERVICING INFORMATION
Fuel pump
Clamp
Side-stand switch
Clamp
Clamp
Wiring harness
Clamp
Wiring harness
Generator
HO2 sensor
Starter motor
Engine ground wire
Clamp
Wiring harness
Generator
Wiring harness
Engine ground wire
Starter motor
Battery + cap
Battery +
terminal
Battery - terminal
Battery
Trunk light switch
ECM
Brake start
relay
Main relay
Clamp
Trunk light switch
*1
*2
*3
*4
*5
Fuse box
*1 To the side-stand switch *4
Pass the HO2 sensor lead wire inside of the
frame.
*2
Pass the engine ground wire and starter motor
lead wire back side of frame.
*5 Make no slack.
*3 Fix the clamp to the frame
To Next Page
