ENGINE 3-49

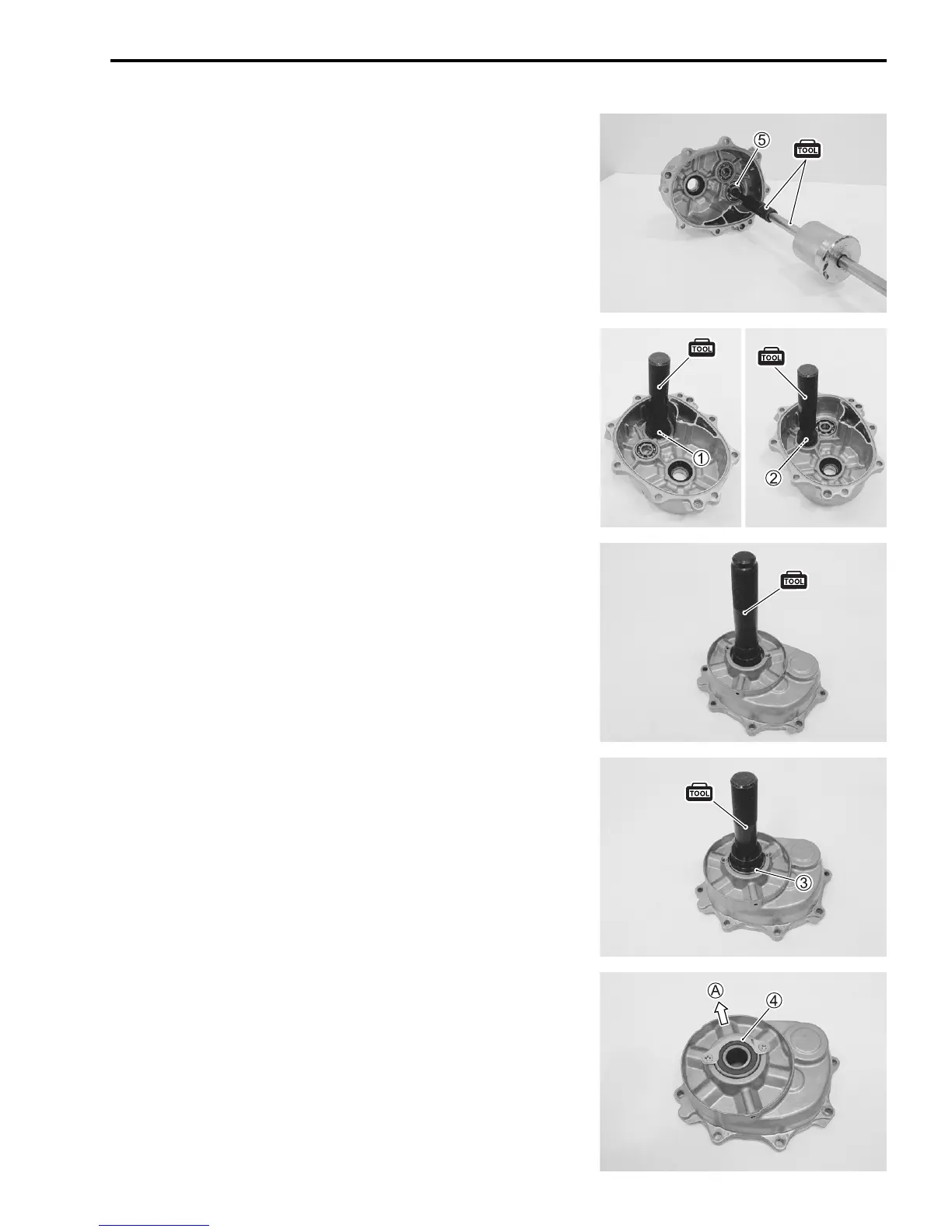

• Remove the bearing
5 using the special tools.
$ 09921-20210: Bearing remover
09930-30104: Sliding shaft
REASSEMBLY
• Install the bearings
1 and
2 using the special tool.
$ 09913-70210: Bearing installer set (40 mm, 35 mm)
• Install the oil seal.
$ 09913-70210: Bearing installer set
• Apply grease to the lip of oil seal.
) 99000-25010: SUZUKI SUPER GREASE “A”
or equivalent
• Install the bearing
3 using the special tool.
$ 09913-70210: Bearing installer set (47 mm)
• Install the bearing retainer
4 toward the upper side
A of the
engine.
" Bearing retainer screw: 8 N·m (0.8 kgf-m)
