ENGINE 3-55

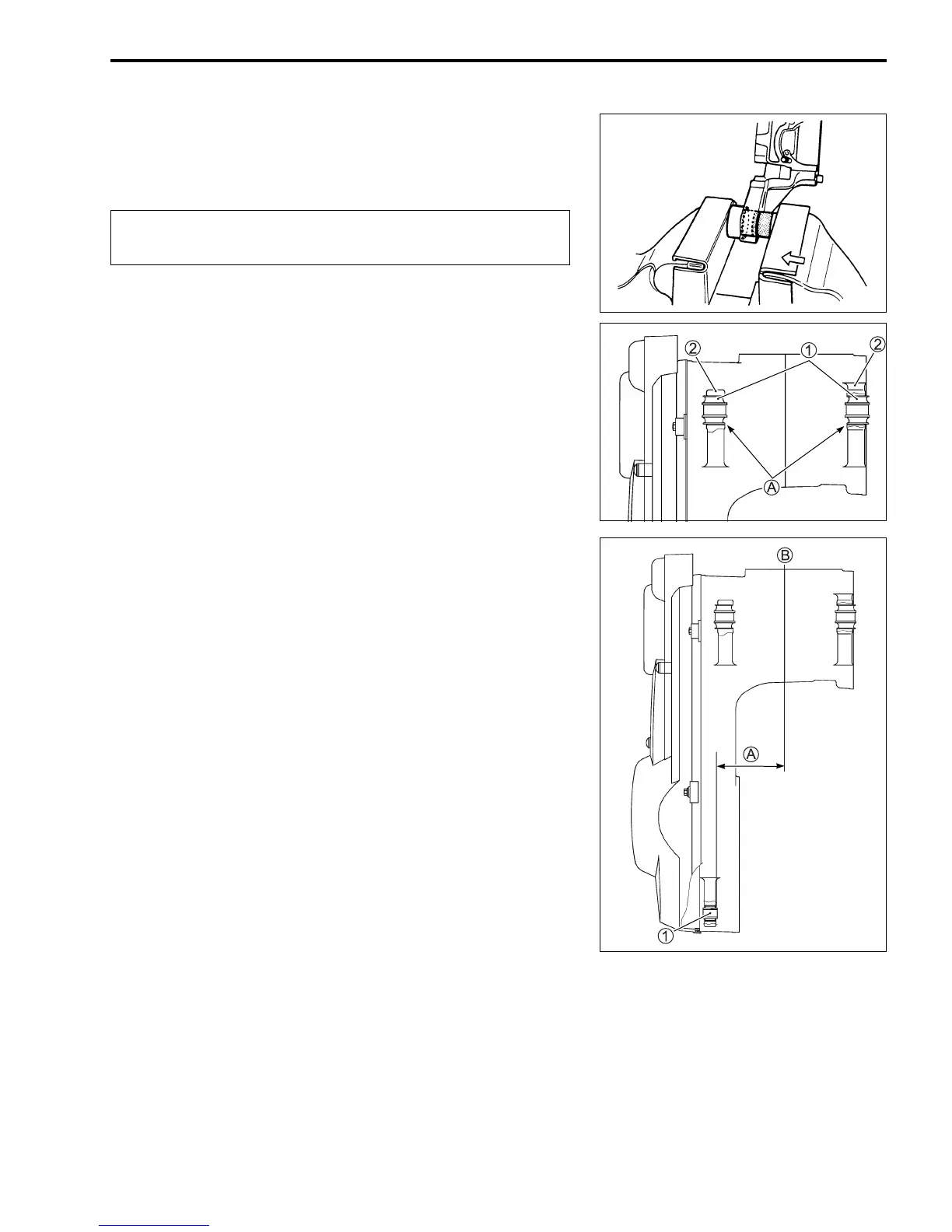

ENGINE MOUNTING BUSHING INSTALLATION
• Using an appropriate side steel tube and vise, press in the
bushing

1 into the crankcase

2.
#
REAR SHOCK ABSORBER BUSHING
Remove and install the rear shock absorber bushing in the same
manner of engine mounting bushing removal and installation.
Pay attention to the following point:
• Press in the rear shock absorber bushing

1 to the correct
position as shown.

A 97 mm

B Crankcase mating surface
* Knurling side of the bushings must face inside.
* Align the bushing end

A with the crankcase surface.
