Suzuki drz 400 2002 Service Manual

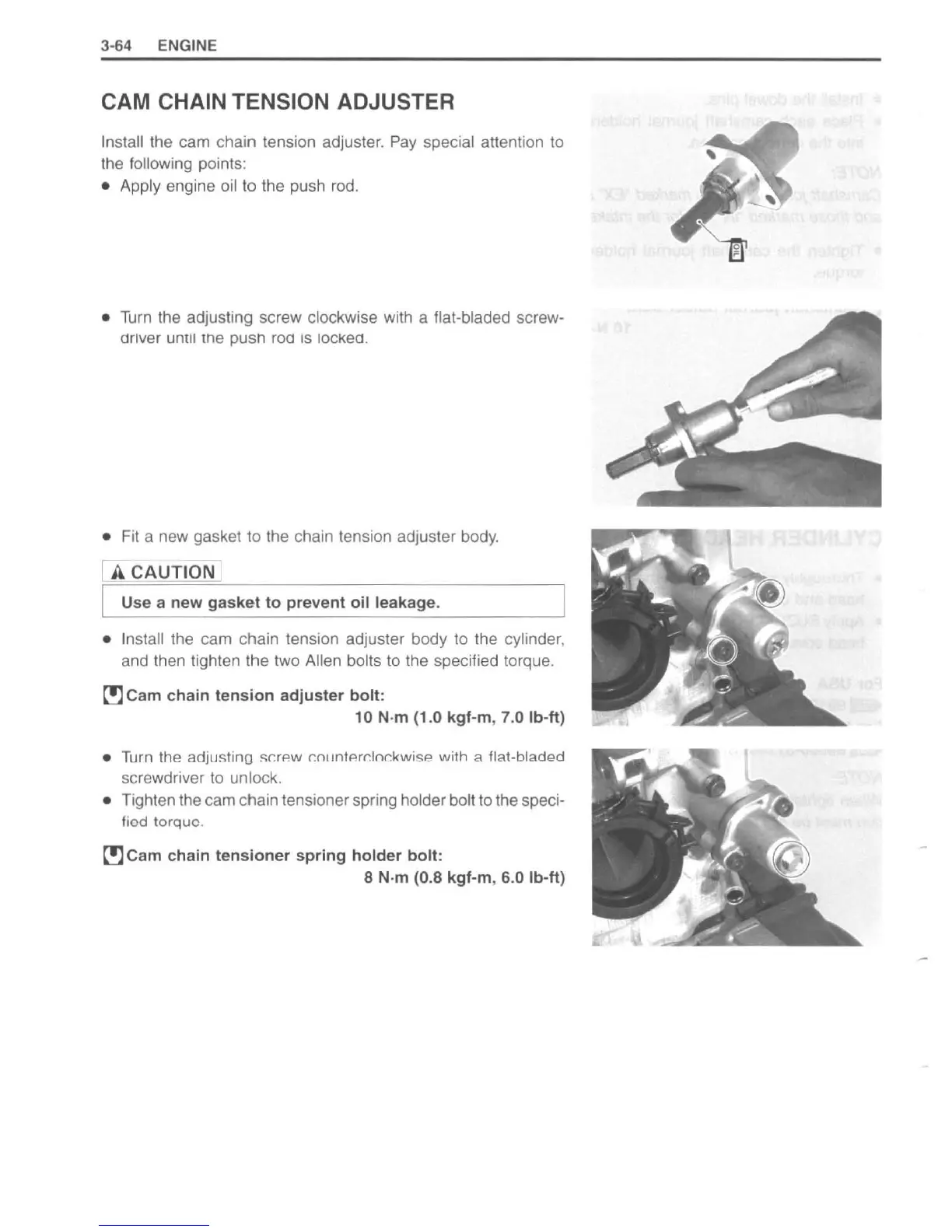

3- 64 ENGINE
CAM CHAIN TENSION ADJUSTER
Install the cam chain tension adjuster. Pay special attention to
the following points:
• A
pp ly engine oi l to the push rod .
•
Turn the adjusting screw clockwise with a flat-bladed screw-
driver until rne pusn rod is locKed.
• Fit a new gasket to the chain tension adjuster body.
lA CAUTION I
I Use a new gaske t to prevent oil leakage.
•
Install the cam chain tension adjuster body to the cylinder,
and then tighten the two Allen bolts to the specified torque.
(!J Cam chain tension adjuste r bolt :
10 N·m (1.0 kgf -m, 7. 0 Ib-ft)
• Turn the adju,;tino ,;r.rp.w r.nllntArd"r.kwisE> with a flat-bladed
screwdriver to un lock.
• Tighten the cam chain tensioner spring holder bolt to the speci-
fiod torque.
(!J Cam chain tensioner spring holder bolt :
8
N·m (0.8 kgf -m, 6.0 Ib- ft )
