Suzuki drz 400 2002 Service Manual

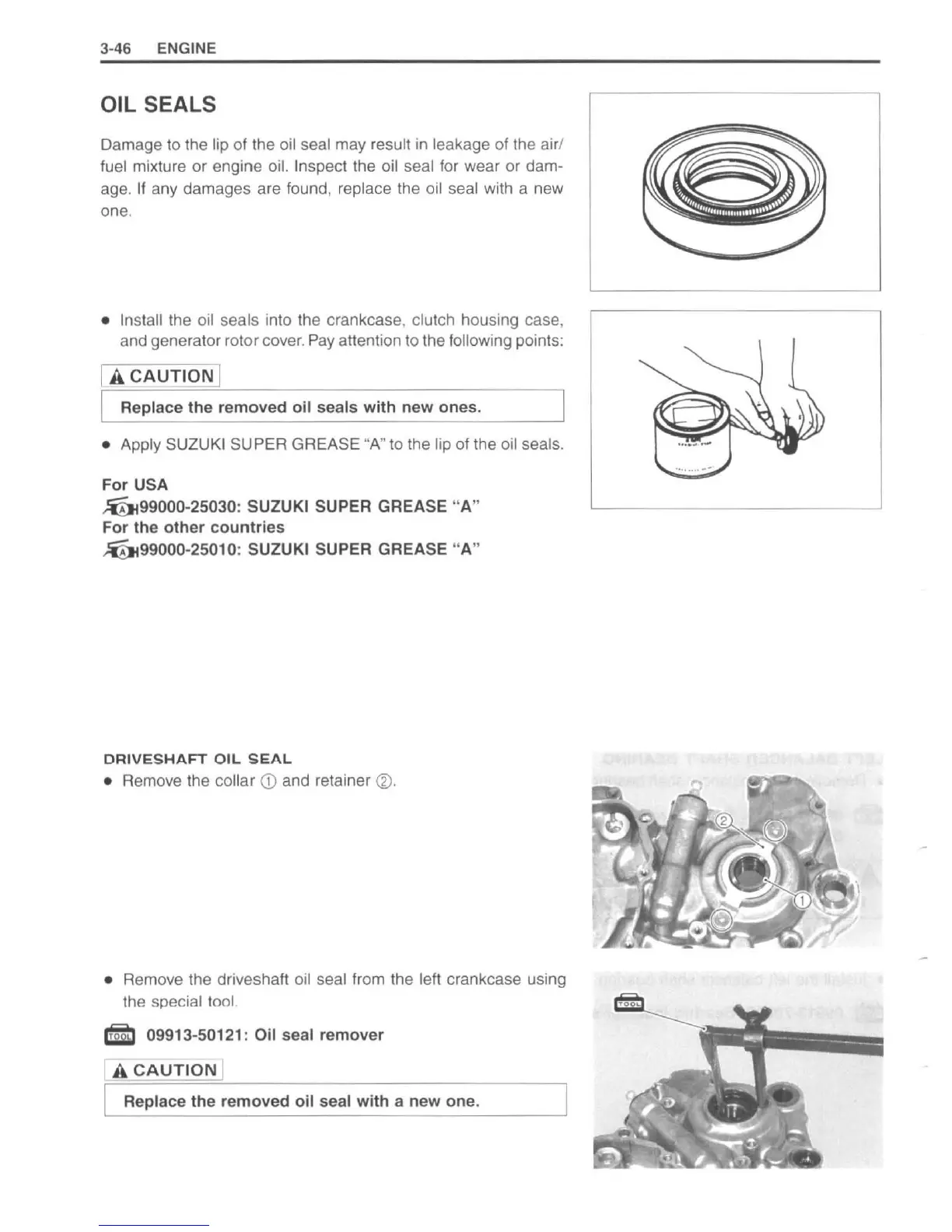

3-46 ENGINE
OIL SEALS
Damage 10 the lip ollhe oil seal may result in leakage of the air/
fuel mixture or engine
oil. Inspect the oil seal for wear or dam-
age.
If any damages are found, replace the oil seal with a new
one.
• In stall the oil seals into the crankcase, clutch housing case,
and generator rotor cover.
Pay attent ion to the fOllowing points:
[ ACAUTION I
Replace the removed oil seals with new ones.
• Apply SUZUKI SUPER GREASE "A" to the lip of the oil seals.
For USA
.@99000-25030 : SUZUKI SUPER GREASE "A"
For the other countries
.@99000-25010: SUZUKI SUPER GREASE "An
DRIVESHAFT OIL SEAL
• Remove the collar CD and retainer ev.
• Remove the driveshaft oil seal from the left crankcase using
t
he special tool.
S 09913-50121: Oil seal remover
ACAUTION I
Replace the removed oil seal with a new one .
. ... -~
http://www.motorcycle.in.th

Suzuki drz 400 2002 Specifications

General

Displacement	398 cc
Bore x Stroke	90.0 mm x 62.6 mm
Compression Ratio	11.3:1
Cooling System	Liquid-cooled
Fuel System	Mikuni BSR36 carburetor
Starter	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	80/100-21
Seat Height	935 mm (36.8 in)
Ground Clearance	300 mm (11.8 in)
Wheelbase	1, 485 mm (58.5 in)
Dry Weight	119 kg (262 lbs)
Engine Type	4-stroke, single cylinder, DOHC
Ignition	CDI
Front Brakes	Disc
Rear Brakes	Disc
Rear Tire	120/90-18
Fuel Capacity	10.0 L (2.6 US gal)
