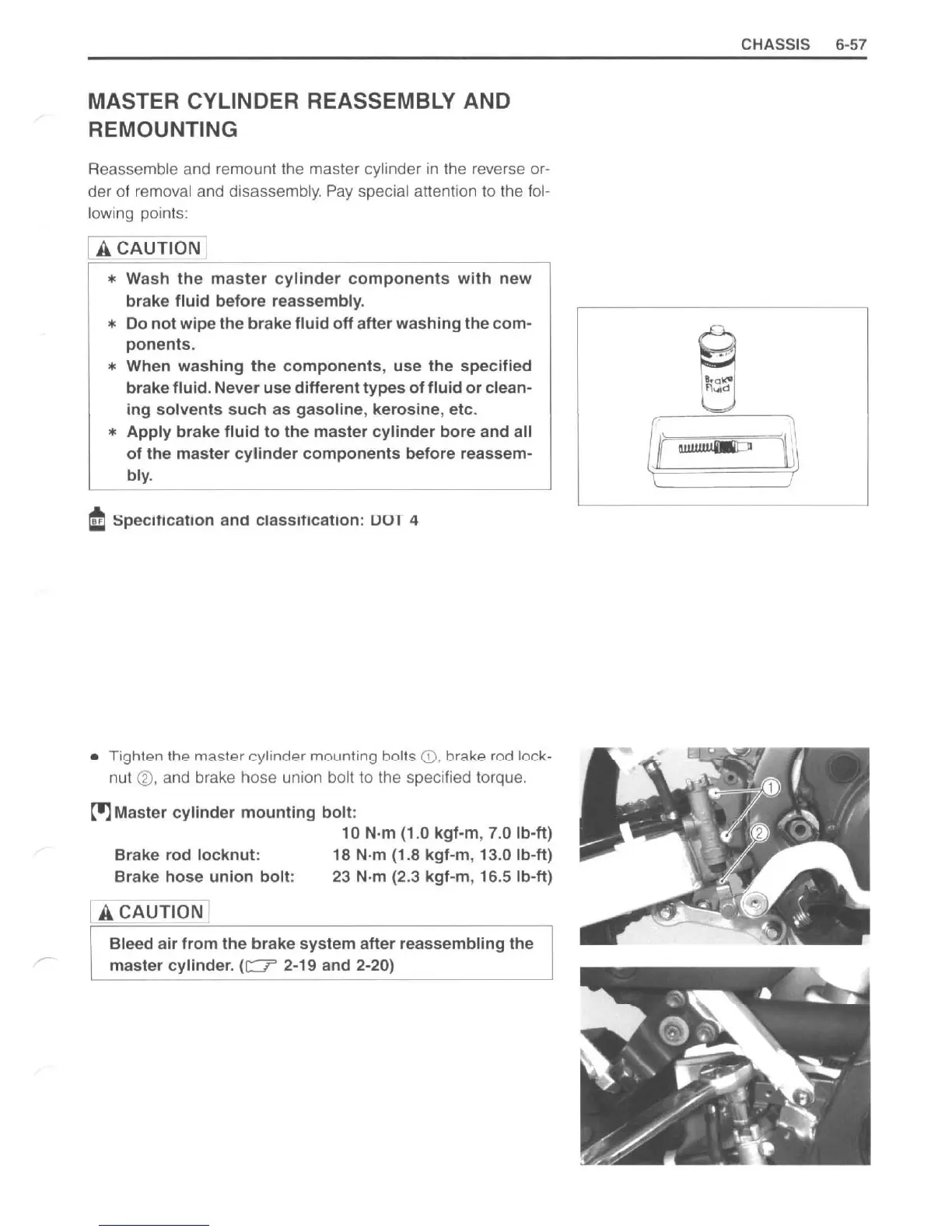

MASTER CYLINDER REASSEMBLY AND
REMOUNTING
Reassemb le and rem ou nt the master cy linder in the reverse or-
der of removal and disassembly. P ay special att en tion to the fo l-
lowi ng point s:
[A CAUTION ]
* Wash the master cylinder components with new
brake fluid before reassembly.
* Do not wipe the brake fluid off after washing the com-
ponents.
* When washing the components, use the specified
brake fluid . Never use different types of fluid or clean-
ing solvents such as gasoline , kerosine, etc.
* Apply brake fluid to the master cylinder bore and all
of the master cy l inder components before reassem-
bly .
i!i Speclticatlon ana ClaSSIfication: UO I 4
• Tighten the master cy linder mounting bo lt s CD, br ake rod lock-
nut (g), and brake hose union bolt to the specified torque.
(I) Master cylinder mounting bolt :
10 N·m (1.0 kgf-m , 7.0 Ib-ft)
Brake rod locknut: 18 N·m (1.8 kgf-m, 13.0 Ib-ft)
Brake
hose union bolt: 23 N·m (2.3 kgf-m, 16.5 Ib-ft)
LA. CAUTION I
Bleed air from the brake system after reassembling the
master cylinder.
( c:7' 2-19 and 2-20)
CHASSIS 6- 57
http://www.motorcycle.in.th

Suzuki drz 400 2002 Specifications

General

Displacement	398 cc
Bore x Stroke	90.0 mm x 62.6 mm
Compression Ratio	11.3:1
Cooling System	Liquid-cooled
Fuel System	Mikuni BSR36 carburetor
Starter	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	80/100-21
Seat Height	935 mm (36.8 in)
Ground Clearance	300 mm (11.8 in)
Wheelbase	1, 485 mm (58.5 in)
Dry Weight	119 kg (262 lbs)
Engine Type	4-stroke, single cylinder, DOHC
Ignition	CDI
Front Brakes	Disc
Rear Brakes	Disc
Rear Tire	120/90-18
Fuel Capacity	10.0 L (2.6 US gal)
