7-16 ELECTRICAL SYSTEM

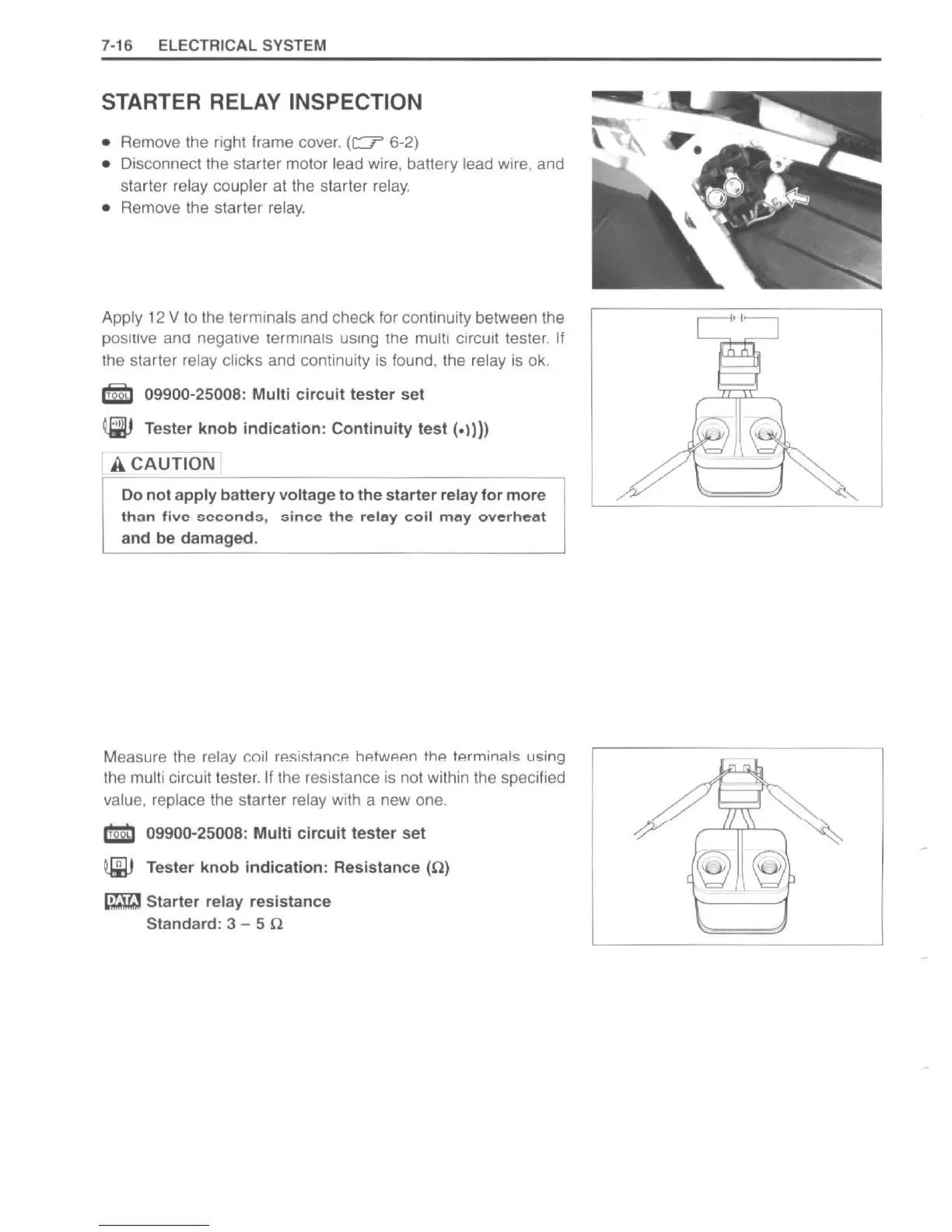

STARTER RELAY INSPECTION
• Remove the righl frame cover. (c::? 6-2)
• Disconnect the starter motor lead wire, battery lead wire, and
starter
re lay coupler at the slarter relay.
• Remove the starter relay.
Apply 12 V to the terminals and check for continuity between the
positive and negative
terminals uSing the multi circuit tester. II
the starter relay clicks and continuity is found, the relay is ok.
S 09900-25008: Multi circuit tester set
~ Tester knob indication : Continuity test (oIl))
[ ACAUTION J
Do not apply battery voltage to the starter relay for more
than five seconds , since the r elay coil may overhel!lt
and be damaged.
Measure the relay coil resist FIn"F! hF!twF!F!n thA t "rm inals using
the
multi circuit tester. If the resistance is not within the specified
value, replace the starter
relay with a new one.
S 09900-25008: Multi circuit tester set
IW Tester knob indication : Resistance (Q)
~ Starter relay resistance
Standard : 3 - 5 Q
