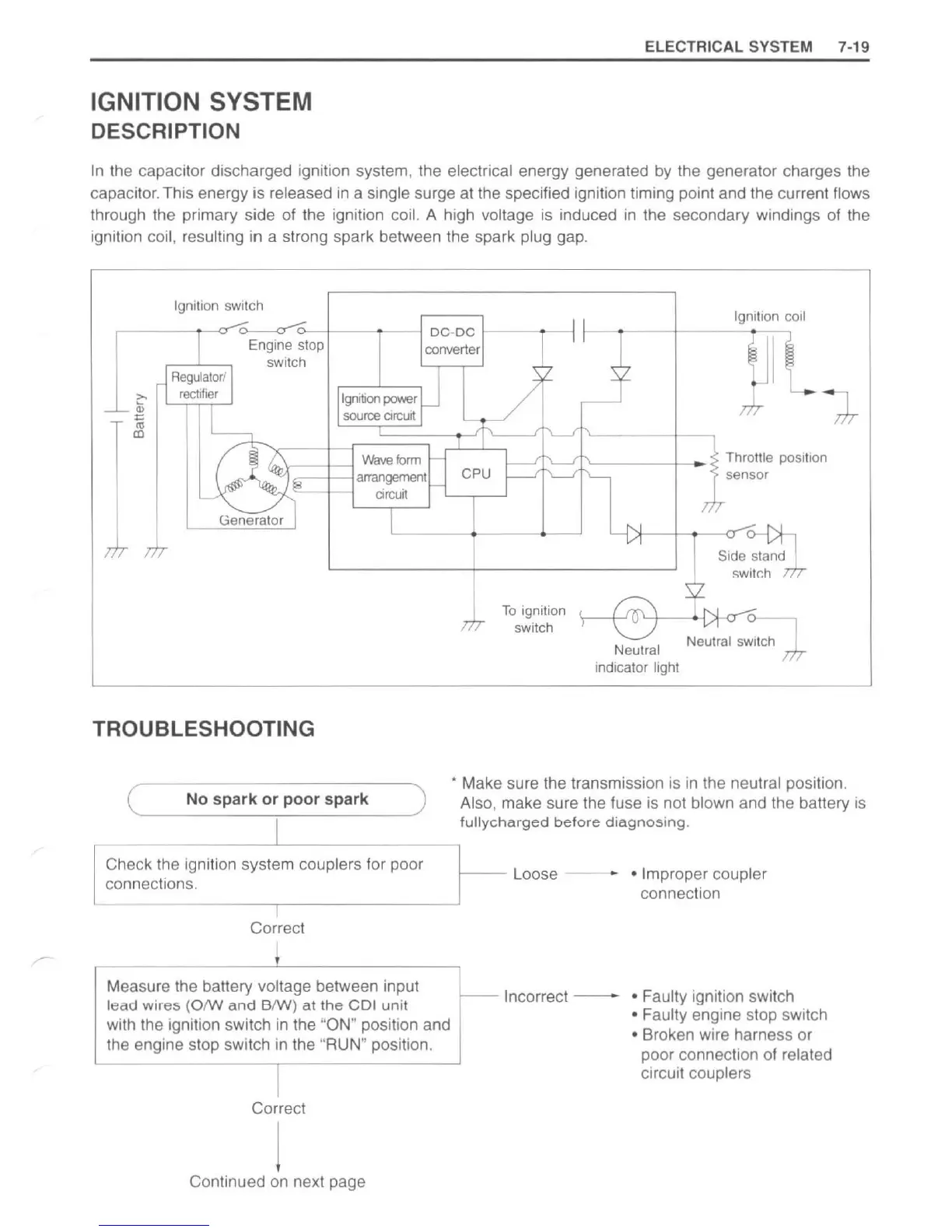

IGNITION SYSTEM
DESCRIPTION
ELECTRICAL SYSTEM 7-19
In the capacitor discharged ignition system, the electrical energy generated by the generator charges the
capacitor. This energy is
released in a single surge at the specified ignition timing point and the current flows
through the primary side of the ignition coil. A high voltage is induced in the secondary windings of the
ignition coil,
resulting in a strong spark between the spark plug gap.
Igni ti on switch
r----- ~~~~ --~--~
Engine stop
swi t ch
~r:;;:=t=~ Wwe Iorm
At.' - ' )'~--"': arrangement
orcutt
TROUBLESHOOTING
(~ _____ N _ o _ s _ p _ a _ r _ k _ o ~ r ~ p _ o _ o _ r _ s _ p _ a _ r _ k ____ ~)
I
Check the ignition system couplers for poor
connections.
'-
I
Correct
Measure the battery
voltage between input
lead wires (O/W and B/w) at the COl unit
with the ignition switch in the "ON" position and
the engine stop switch
in the "RUN" position.
Correct
Continued on next page
To igni tion
switch
Ig""ion cOi l
Throille position
sensor
Slde~
~W i~~~nd ,h-
NeutralS~
Neutrat .,tcn &
indicator light
• Make sure the transmission is in the neutral position.
Also, make sure the fuse is not blown and the battery is
fullycharged before diagnosing .
1---- Loose • Improper coupler
connection
Incorrect - • Faulty ignition switch
• Faulty engine stop switch
• Broken wire harness or
poor connection of
related
circuit couplers
