Suzuki drz 400 2002 Service Manual

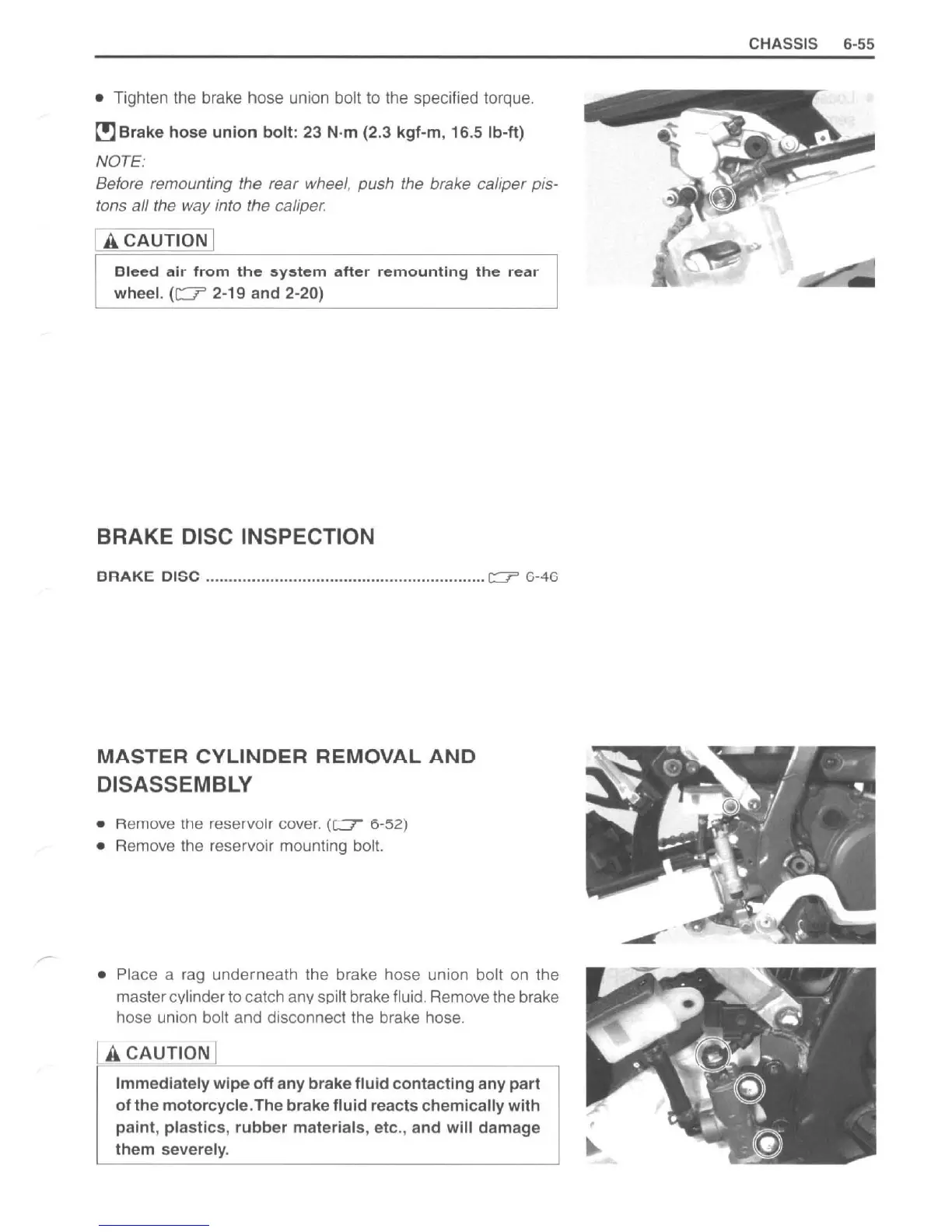

• Tighl en Ihe brake hose union boll to the specified lorque.
(!) Brake hose union bolt : 23 N·m (2.3 kgf-m, 16.5 Ib-ft)
NOTE:
Before remounting the rear wheel, push the brake caliper pis-
tons all th e way into the caliper.
I A CAUTION I
Bleed air from the system lIIfter remounting the fellir
wheel. (c:::T 2-19 and 2-20)
BRAKE DISC INSPECTION
BRAKE DISC .. ....... .............................. ...................... c::::r 6-46
MASTER CYLINDER REMOVAL AND
DISASSEMBLY
• Remove the reservoir cover. (eJ" 6-52)
• Remove the reservoir mounting bolt.
• Place
a rag underneath the brake hose union boll on the
master
cylinder 10 catch any spilt brake fluid. Remove the brake
hose union
bolt and disconnect the brake hose.
[ A CAUTIO!'£]
Immediately wipe off any brake fluid contacting any part
of the motorcycle.The brake fluid reacts chemically with
paint , plastics , rubber materials, etc ., and will damage
them severely.
CHASSIS 6-55
http://www.motorcycle.in.th

Suzuki drz 400 2002 Specifications

General

Displacement	398 cc
Bore x Stroke	90.0 mm x 62.6 mm
Compression Ratio	11.3:1
Cooling System	Liquid-cooled
Fuel System	Mikuni BSR36 carburetor
Starter	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	80/100-21
Seat Height	935 mm (36.8 in)
Ground Clearance	300 mm (11.8 in)
Wheelbase	1, 485 mm (58.5 in)
Dry Weight	119 kg (262 lbs)
Engine Type	4-stroke, single cylinder, DOHC
Ignition	CDI
Front Brakes	Disc
Rear Brakes	Disc
Rear Tire	120/90-18
Fuel Capacity	10.0 L (2.6 US gal)
