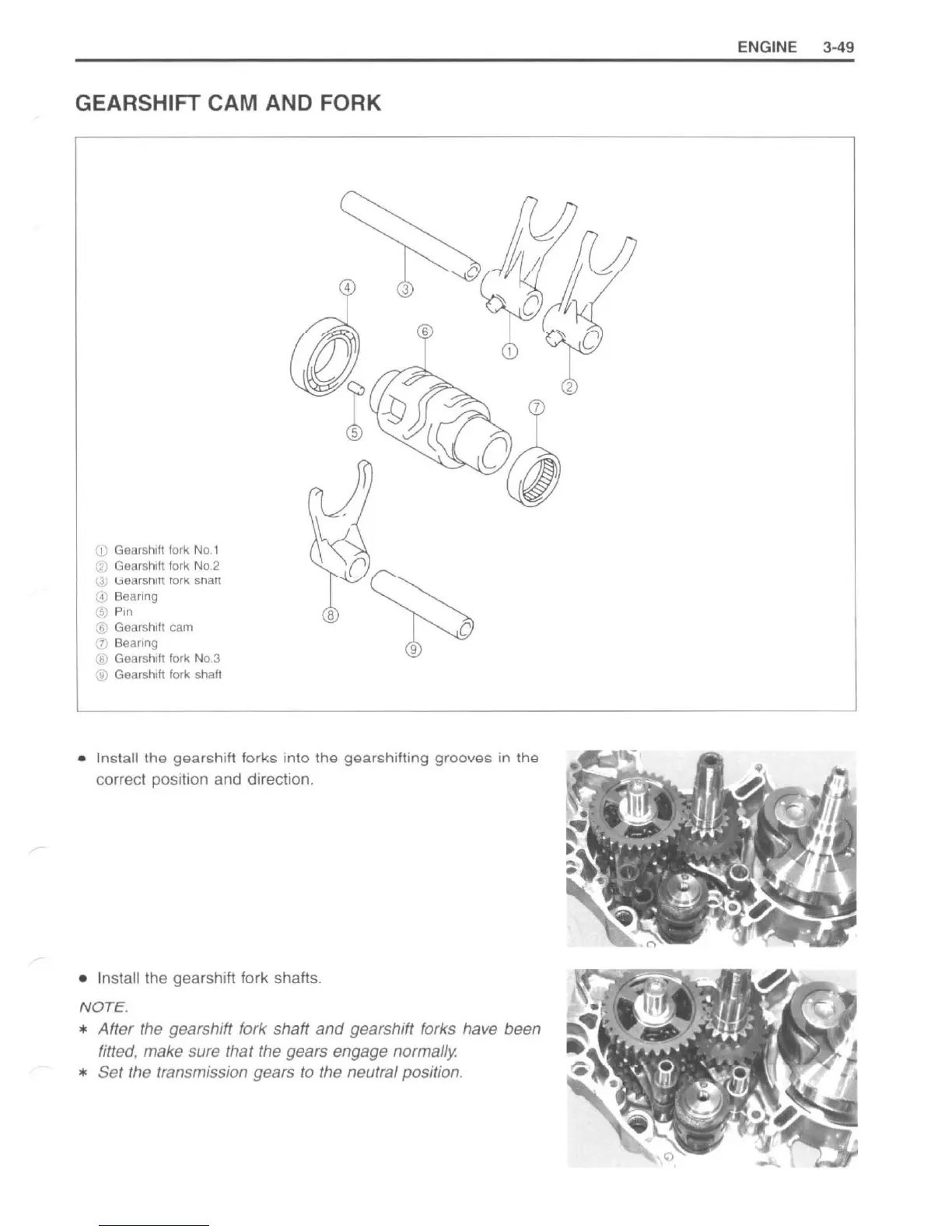

GEARSHIFT CAM AND FORK
co Gear shlf l fork N o. 1
(1) Gearshi ft fork N o.2
Q) liea rs nm fOr I< snail
(1) Bearing
® P in
® Gearsh ift cam
ill Bearing
® Gea rshi ft fo rk N O.3
® Gears h ift fork shaft
• Install the gearsh i ft forks into the gear shifting groove s in the
correct posilion and direclion.
• In stall the gearshift fork shafts.
N OTE .
* After the gearshift fork shaft and gearshift forks have been
fitted, make sure tha t the gears engage normally.
* Set th e transmission gears to the neutral position.
ENGINE 3-49
http://www.motorcycle.in.th

Suzuki drz 400 2002 Specifications

General

Displacement	398 cc
Bore x Stroke	90.0 mm x 62.6 mm
Compression Ratio	11.3:1
Cooling System	Liquid-cooled
Fuel System	Mikuni BSR36 carburetor
Starter	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	80/100-21
Seat Height	935 mm (36.8 in)
Ground Clearance	300 mm (11.8 in)
Wheelbase	1, 485 mm (58.5 in)
Dry Weight	119 kg (262 lbs)
Engine Type	4-stroke, single cylinder, DOHC
Ignition	CDI
Front Brakes	Disc
Rear Brakes	Disc
Rear Tire	120/90-18
Fuel Capacity	10.0 L (2.6 US gal)
