Suzuki drz 400 2002 Service Manual

6-10 CHASSIS

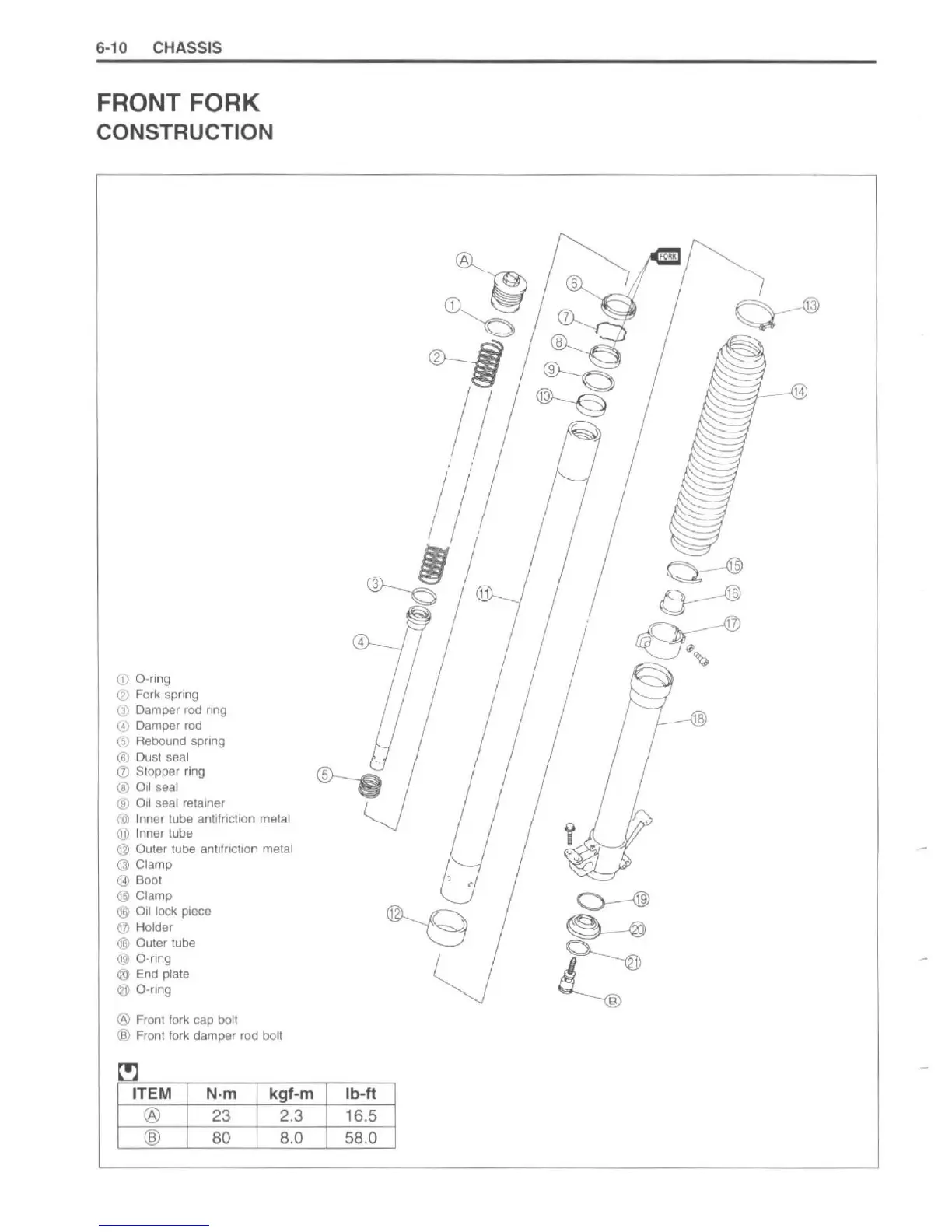

FRONT FORK
CONSTRUCTION
CD a -nng
® Fork spring
(j) Damper rod ring
@ Damper rod
0; Rebound spring
® Dust seal
CD Siopper ring
® 0,1 seal
® 011 seal retainer
(0 Inner tube anllfnctlOn metal
® Inner tube
@ Out er tube antifrichOn metal
@ Clamp
@ Bool
@ Clamp
@ Oil lock piece
@ Holder
@ Outer tube
@) O-ring
~ End plale
<3 O-flng
® Front fork cap bolt
® Front fork damper rod bolt
ITEM
N·m kgf-m
®
23 2.3
®
80 8.0
~
~
II
~
Ib - ft
16.5
58.0
http://www.motorcycle.in.th

Suzuki drz 400 2002 Specifications

General

Displacement	398 cc
Bore x Stroke	90.0 mm x 62.6 mm
Compression Ratio	11.3:1
Cooling System	Liquid-cooled
Fuel System	Mikuni BSR36 carburetor
Starter	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	80/100-21
Seat Height	935 mm (36.8 in)
Ground Clearance	300 mm (11.8 in)
Wheelbase	1, 485 mm (58.5 in)
Dry Weight	119 kg (262 lbs)
Engine Type	4-stroke, single cylinder, DOHC
Ignition	CDI
Front Brakes	Disc
Rear Brakes	Disc
Rear Tire	120/90-18
Fuel Capacity	10.0 L (2.6 US gal)
