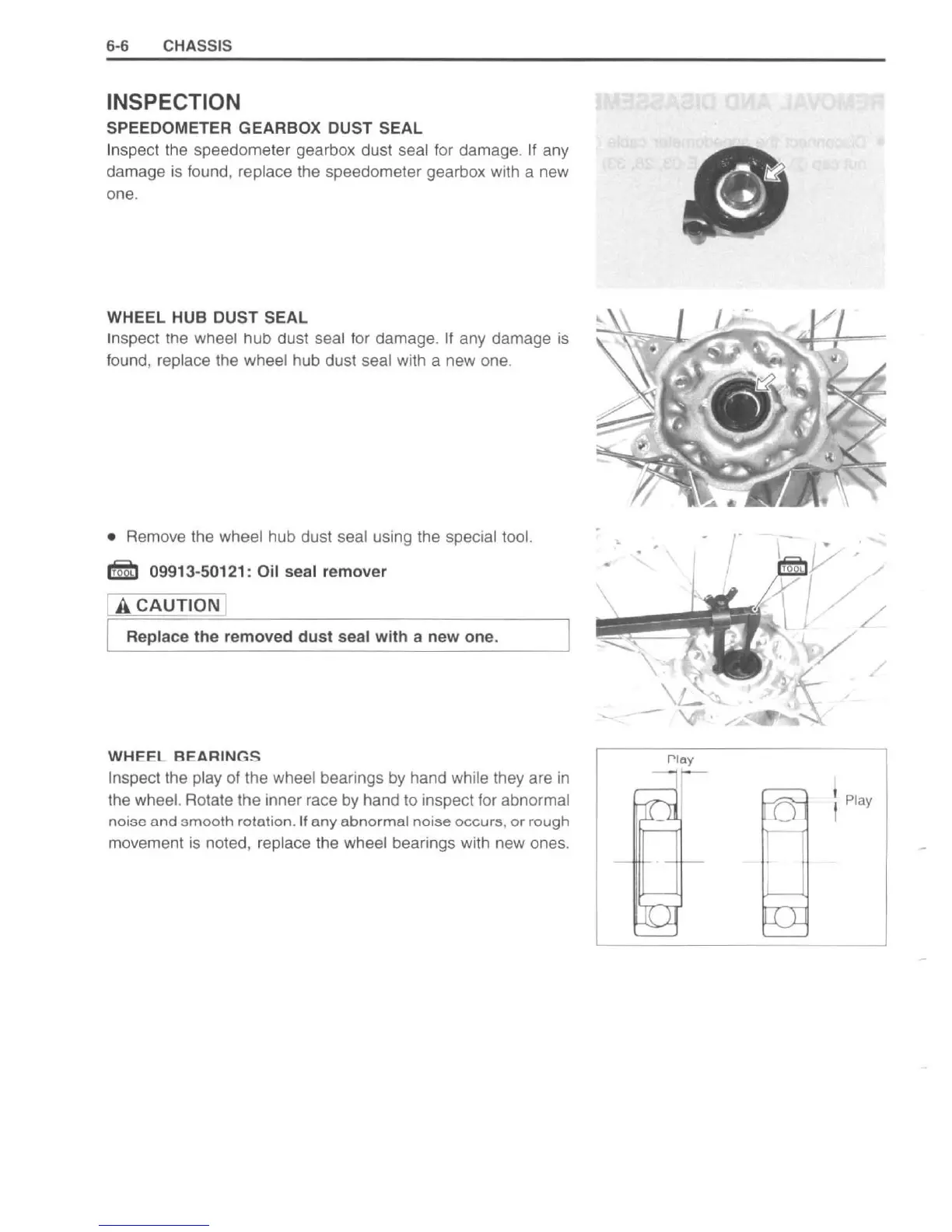

6-6 CHASSIS
INSPECTION
SPEEDOMETER GEARBOX DUST SEAL
In spect the speedometer gearbox dust seal for damage. If any
damage
is found, replace the speedomeler gearbox with a new
one.
WHEEL HUB DUST SEAL
In spect me wheel hub dust seal for damage. If any damage is
found, replace Ihe wheel hub dust seal with a new one.
• Remove the wheel hub dust seal using Ihe special tool.
~ 09913-50121: Oil seal remover
I A CAUTION ]
Replace the removed dust seal with a new one .
WHEEL BEARINGS
In spect the play of Ihe wheel bearings by hand while they are in
the wheel. Rotale Ihe inner race by hand 10 inspeci for abnormal
noise and s mooth rotation. If any abnorma.l noise occurs, or rough
movement is noted, replace the wheel bearings with new ones.
-
Q
.-
'"W!
. ..
. ~ --. .
_. l~. ,..Ai
rl ay
;IU
LJ
; Pl ay
-
- -
-
J( )1
11
http://www.motorcycle.in.th

Suzuki drz 400 2002 Specifications

General

Displacement	398 cc
Bore x Stroke	90.0 mm x 62.6 mm
Compression Ratio	11.3:1
Cooling System	Liquid-cooled
Fuel System	Mikuni BSR36 carburetor
Starter	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	80/100-21
Seat Height	935 mm (36.8 in)
Ground Clearance	300 mm (11.8 in)
Wheelbase	1, 485 mm (58.5 in)
Dry Weight	119 kg (262 lbs)
Engine Type	4-stroke, single cylinder, DOHC
Ignition	CDI
Front Brakes	Disc
Rear Brakes	Disc
Rear Tire	120/90-18
Fuel Capacity	10.0 L (2.6 US gal)
