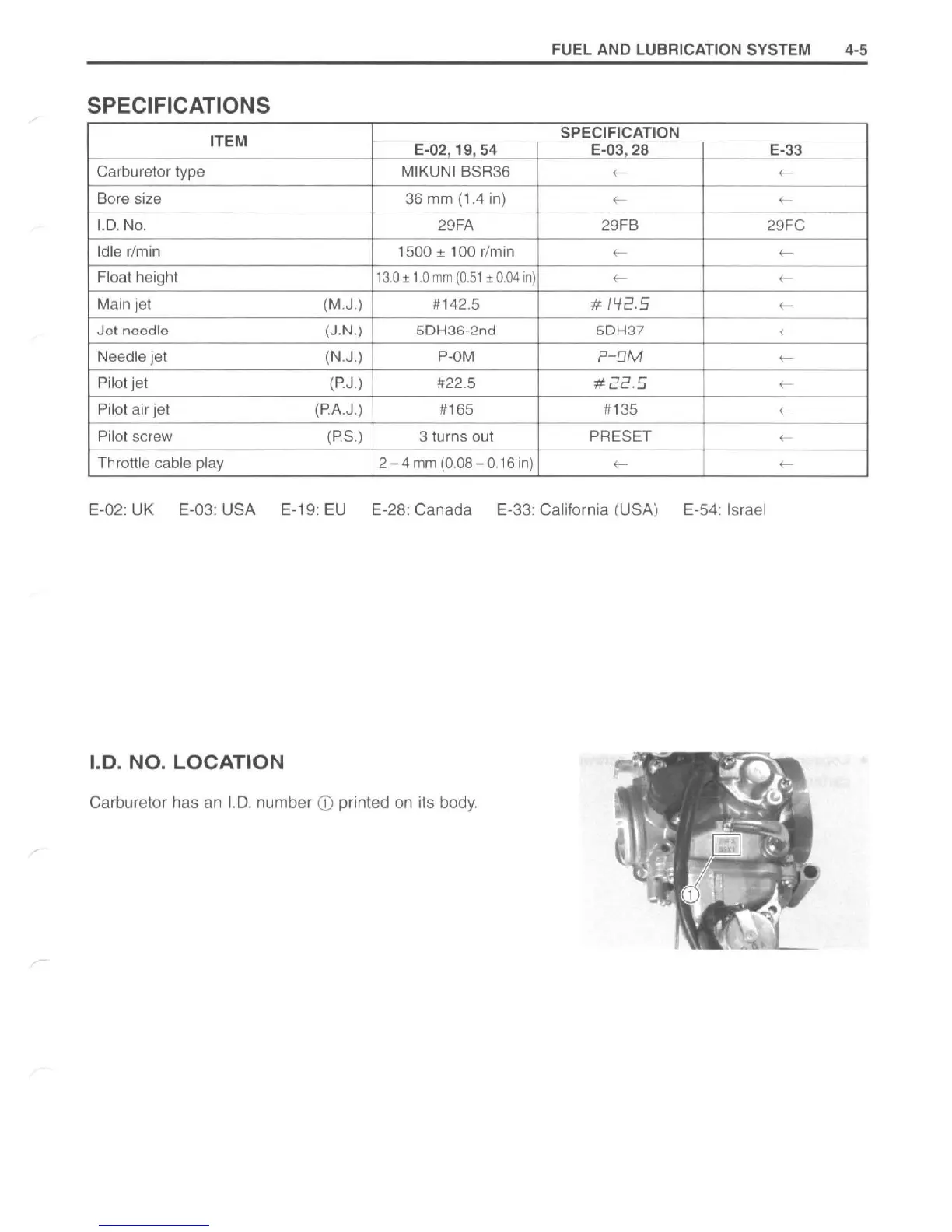

FUEL AND LUBRICATION SYSTEM 4-5
SPECIFICATIONS
ITEM
SPECIFICATION
E-02 19,54 E-03, 28 E-33
Carburetor type
MIKUNI BSR36
<- <-
Bore size 36 mm (1.4 in)
<-
<-
I.D. No. 29FA 29FB 29FC
Idle r/min 1500 ± 100 r/min
<- <-
Float height 13 .0 ± 1.0 mm (0. 51 ± 0 .04 in)
<- <-
Main jet (M.J.) #142.5
# 1'12.5
<-
Jot noodlo (J.N.) 5DH362nd 5DH37
<
Needle jet (N.J.) P-OM P-OM
<-
Pilot jet (PJ.) #22.5
#22.5
<-
Pilot air jet (PA.J.) #165 #135
<-
Pilot screw (PS.) 3 turns out PRESET
<-
Throttle cable play
2 - 4 mm (0.0 8 - 0.16 in)
<- <-
E-02: UK E-03: USA E-19: EU E-28: Canada E-33: California (USA) E-54: Israel
1.0. NO. LOCATION
Carburetor has an I.D. number Q) printed on its body.
http://www.motorcycle.in.th

Suzuki drz 400 2002 Specifications

General

Displacement	398 cc
Bore x Stroke	90.0 mm x 62.6 mm
Compression Ratio	11.3:1
Cooling System	Liquid-cooled
Fuel System	Mikuni BSR36 carburetor
Starter	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	80/100-21
Seat Height	935 mm (36.8 in)
Ground Clearance	300 mm (11.8 in)
Wheelbase	1, 485 mm (58.5 in)
Dry Weight	119 kg (262 lbs)
Engine Type	4-stroke, single cylinder, DOHC
Ignition	CDI
Front Brakes	Disc
Rear Brakes	Disc
Rear Tire	120/90-18
Fuel Capacity	10.0 L (2.6 US gal)
