Suzuki drz 400 2002 Service Manual

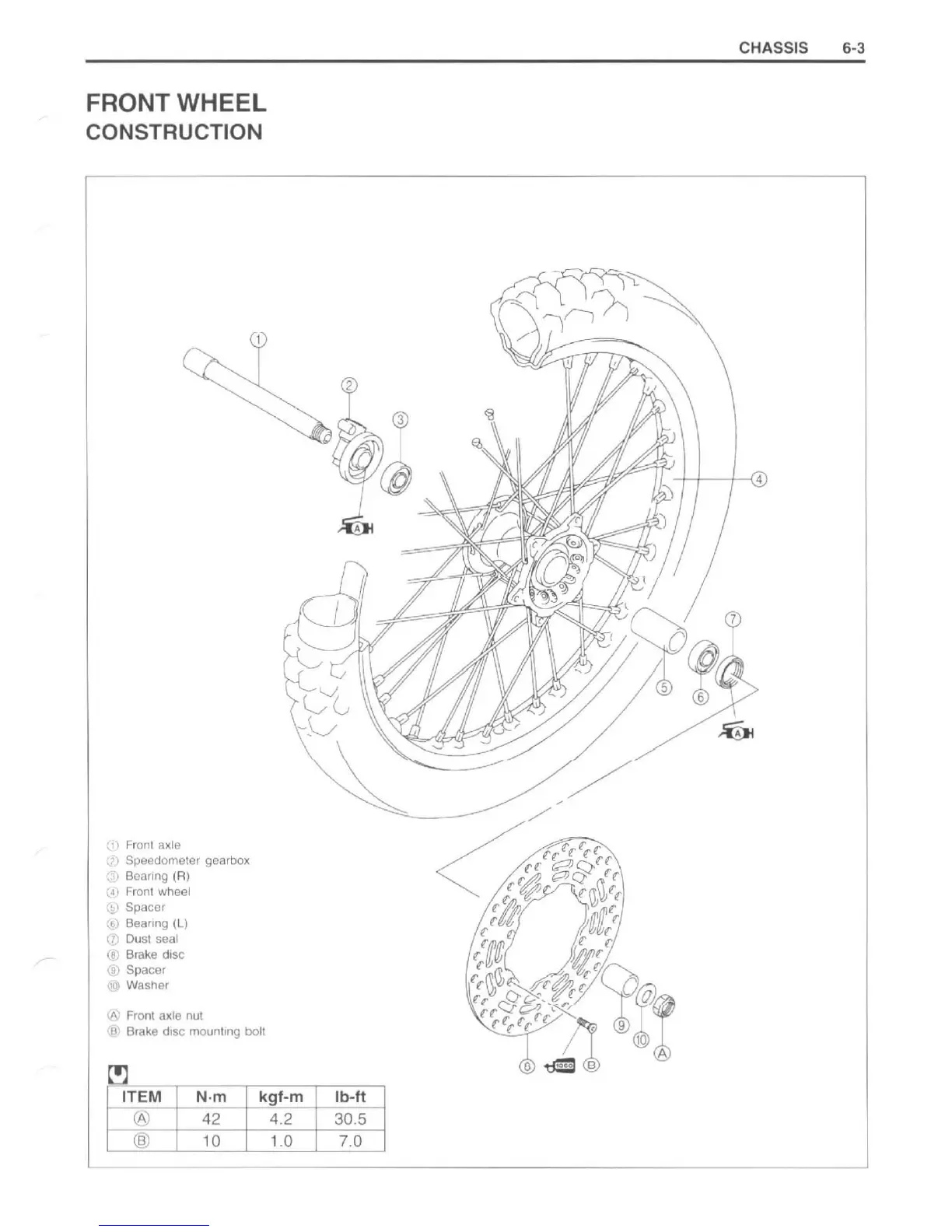

FRONT WHEEL
CONSTRUCTION
-
~ I ) Front axle
\.,i) Speedometer gearbox
,0 Boaflng IRl
l4) Front wheel
C0 Spacer
;&) Beaflng ILl
CD Dust seal
® Brake disc
@ Spacer
i.1.Q) Washer
A ~ Front axle nul
:B~ Brake disc moun t ing bolt
(!J
ITEM
N·m
kgf-m
®
42 4.2
®
10 1.0
CHASSIS 6-3
Ib-ft
30.5
7.0
