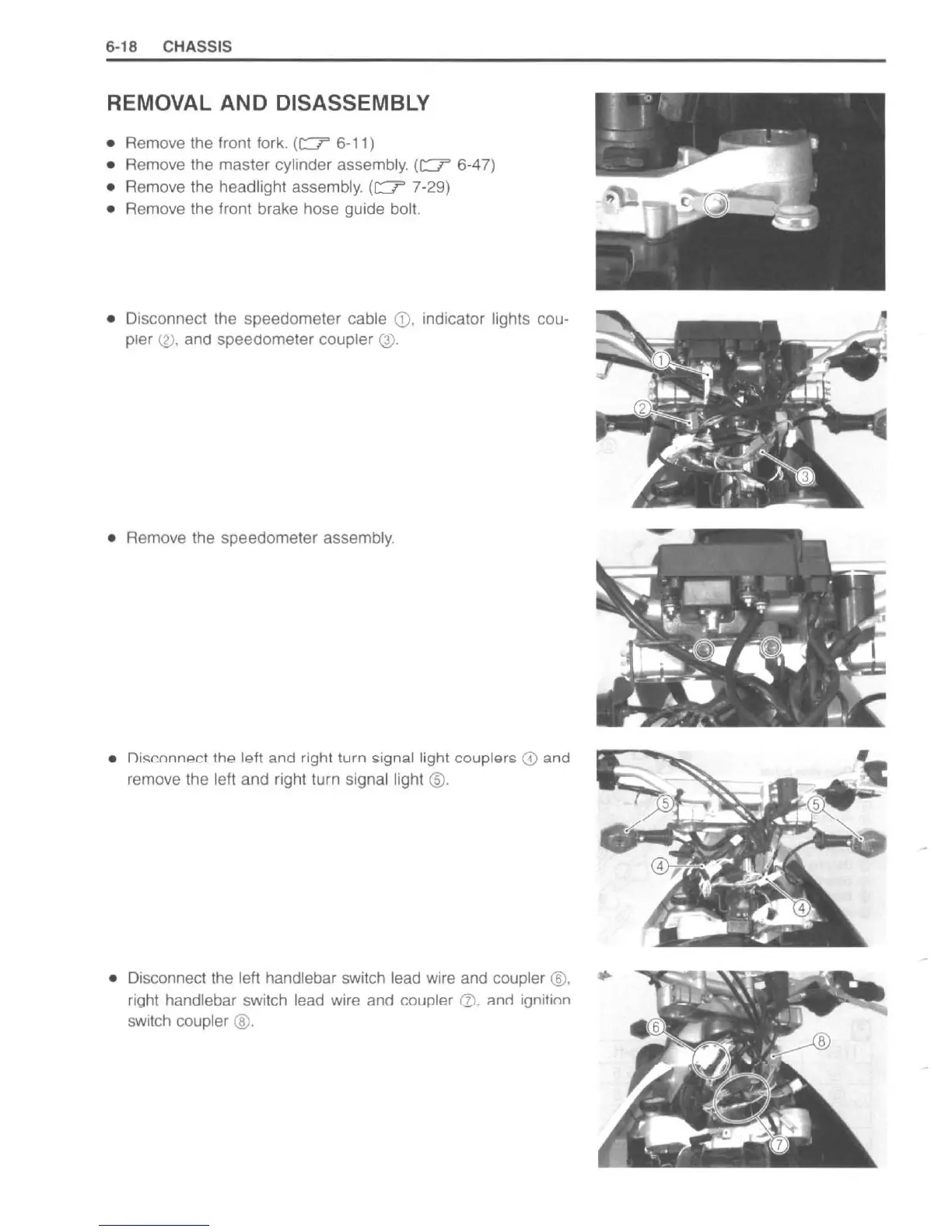

6-18 CHASSIS
REMOVAL AND DISASSEMBLY
• Remove Ihe lront lork. (c:::r 6-11)
• Remove the master cylinder assembly (c:::r 6-47)
• Remove Ihe headlight assembly. (c:::r 7-29)
• Remove the Iront brake hose guide bolt.
•
Disconnect the speedometer cable CD. indicator lights cou-
pler
(6). and speedometer coupler @.
• Remove the speedometer assembly.
• ni~r.nnnect the left and right turn signal light couplers CD and
remove the left and right turn signal light @.
• Disconnect the left handlebar switch lead wire and coupler ®.
rioht handlebar switch lead wire and counl", 0. "nri ionition
switch coupler
®.
