Suzuki drz 400 2002 Service Manual

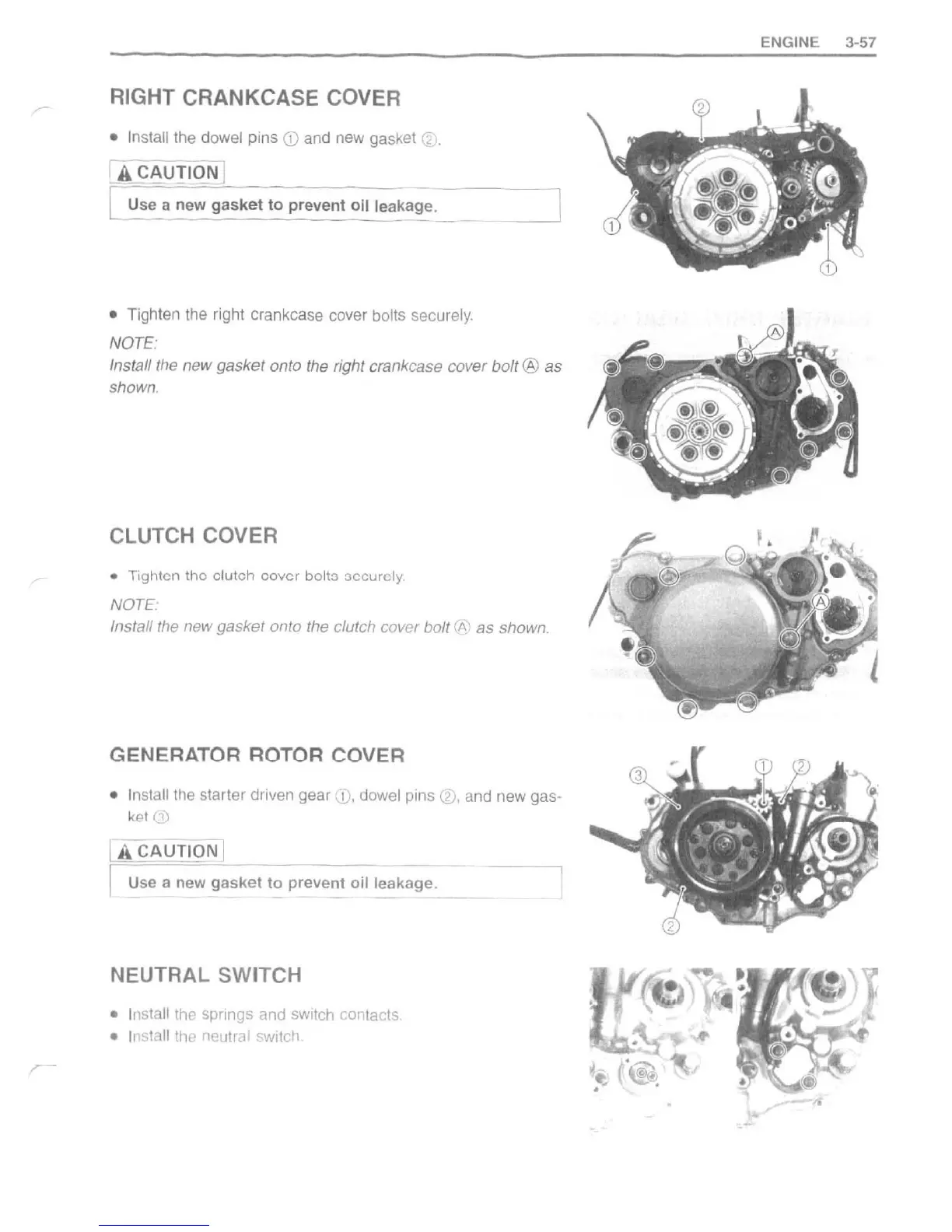

RIGHT CRANKCASE COVER
• In stali lhe dowel pins (j) and new gaskel 0.
i4
CA
UTIoN J
I Use a new gasket to prevent oil leakage_. __
• Tighten Ihe right crankcase cover bolts securely.
NOTE :
------'
Install the new gasket onto the right crankcase cover bolt ® as
shown.
CLUTCH COVER
• Tighten the clutch cover boltG Gccurely.
NOTE. ·
Install the new gasket onto the clutch cover bolt (A) as shown.
GENERATOR ROTOR COVER
• Install the starter driven gear \1), dowel pins 0, and new gas-
ket @
lA.fAUTION J
I Use a new ~ ga '- S - k - e - t - to - p - re - v - e - n - t -o- illeakage.
NEUTRAL SWITCH
• I nstall the spnngs and switch contacts
• I nstall the neutra switch
ENGINE 3-57
http://www.motorcycle.in.th

Suzuki drz 400 2002 Specifications

General

Displacement	398 cc
Bore x Stroke	90.0 mm x 62.6 mm
Compression Ratio	11.3:1
Cooling System	Liquid-cooled
Fuel System	Mikuni BSR36 carburetor
Starter	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	80/100-21
Seat Height	935 mm (36.8 in)
Ground Clearance	300 mm (11.8 in)
Wheelbase	1, 485 mm (58.5 in)
Dry Weight	119 kg (262 lbs)
Engine Type	4-stroke, single cylinder, DOHC
Ignition	CDI
Front Brakes	Disc
Rear Brakes	Disc
Rear Tire	120/90-18
Fuel Capacity	10.0 L (2.6 US gal)
