Suzuki drz 400 2002 Service Manual

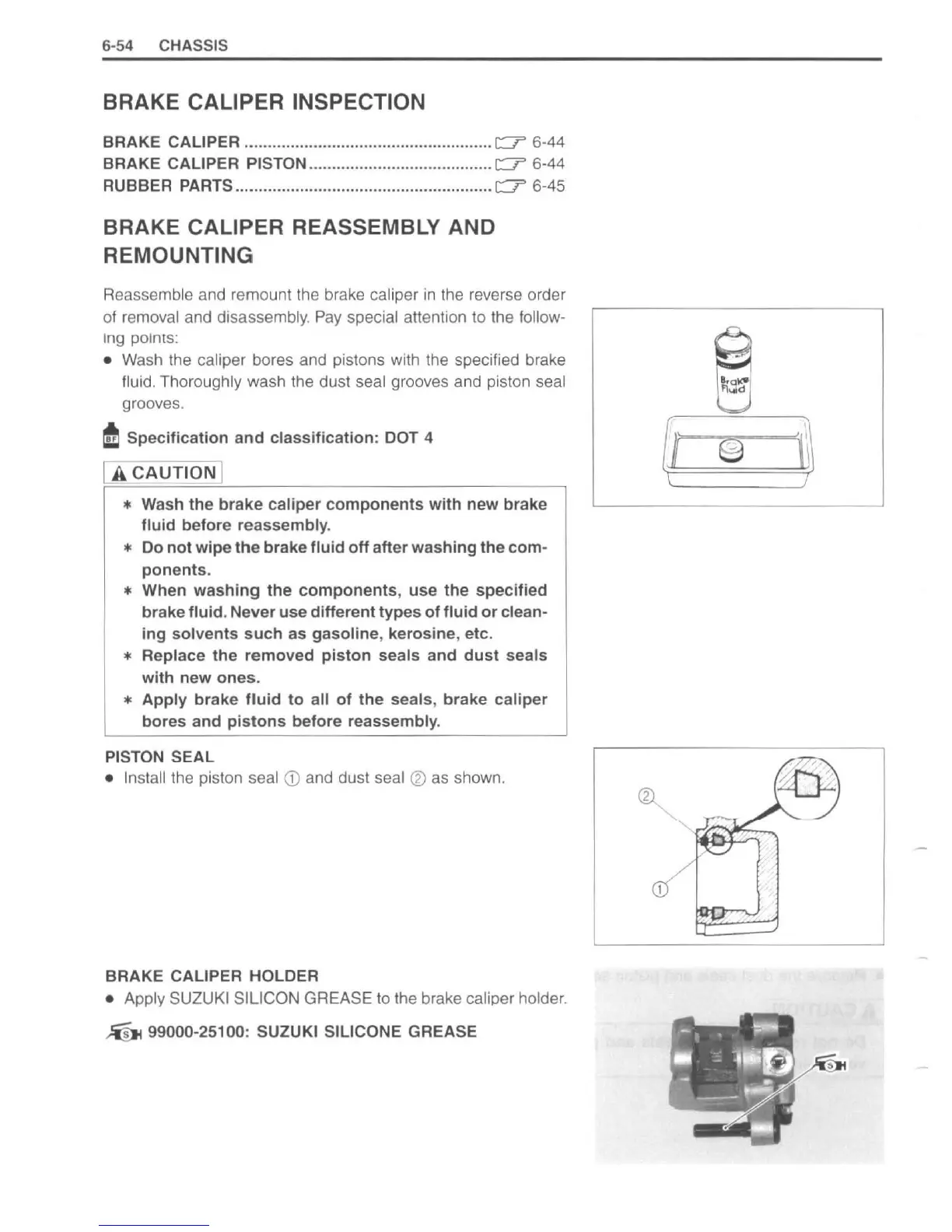

6-54 CHASSIS
BRAKE CALIPER INSPECTION
BRAKE CALIPER ................. .... ........... .. .................... c:? 6-44
BRAKE CALIPER PISTON ........................................ c:? 6-44
RUBBER PARTS ........................................................ c:? 6-45
BRAKE CALIPER REASSEMBLY AND
REMOUNTING
Reassemble and remount the brake caliper in the reverse order
of removal and disassembly. Pay special attention to the follow-
Ing pOintS:
• Wash the caliper bores and pistons with the specified brake
fluid. Thoroughly wash the dust seal grooves and piston seal
grooves.
~ Specification and classification: DOT 4
LA CAUTiO i\/]
* Wash the brake caliper components with new brake
fluid before reassembly.
* Do not wipe the brake fluid off after washing the com-
ponents.
* When washing the components , use the specified
brake fluid. Never use different types of fluid or clean-
ing solvents such as gasoline , kerosine , etc.
* Replace the removed piston seals and dust seals
with new ones.
* Apply brake fluid to all of the seals , brake caliper
bores and pistons before reassembly .
PISTON SEAL
• Install the piston seal CD and dust seal ® as shown.
BRAKE CALIPER HOLDER
• Apply SUZUKI SILICON GREASE to the brake caliper holder.
,,@ 99000-25100: SUZUKI SILICONE GREASE
~
fl~d
~
~
~
