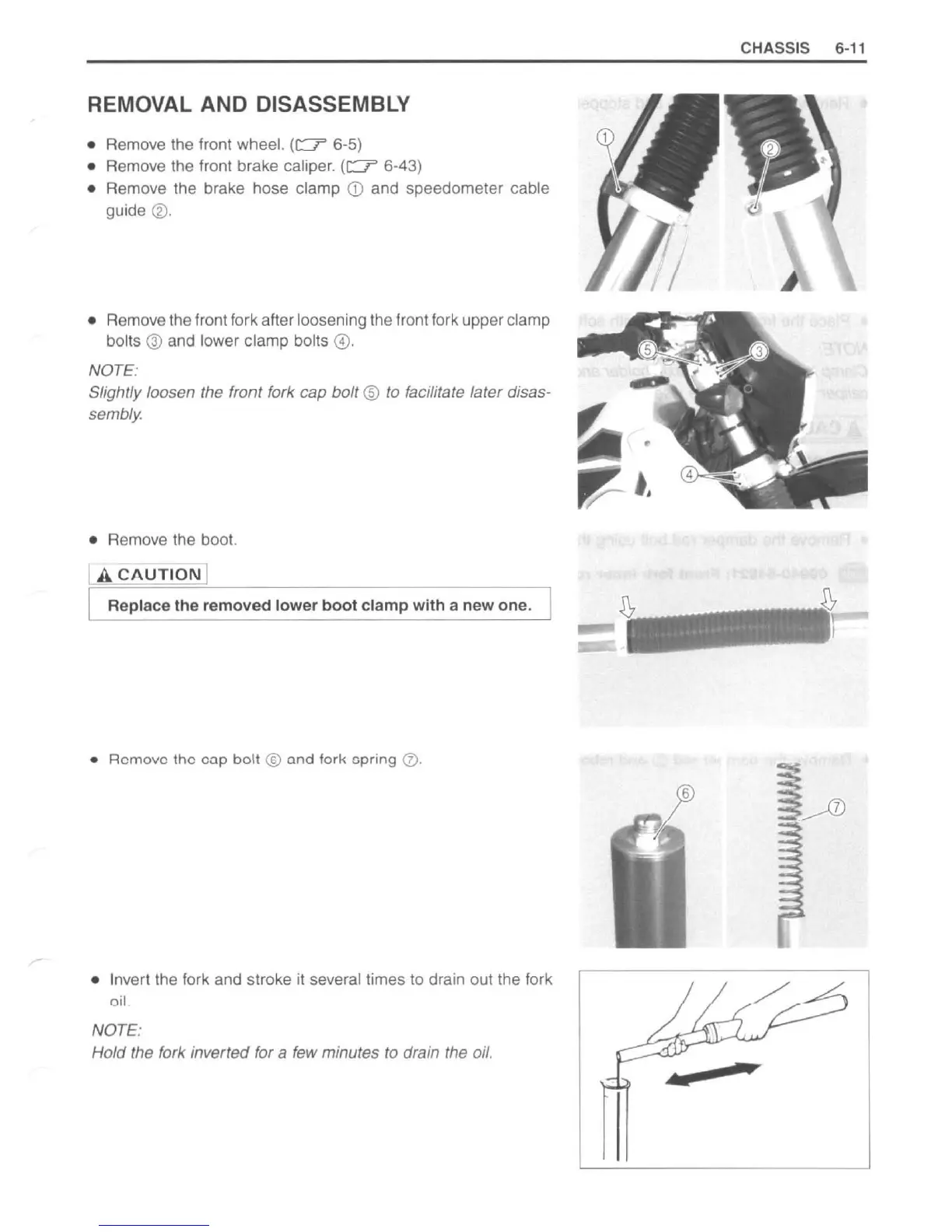

REMOVAL AND DISASSEMBLY
• Remove the front wheel. (c::? 6-5)
• Remove the front brake caliper. (c::? 6-43)
• Remove the brake hose clamp CD and speedometer cable
guide ®.
• Remove the front fork after loosening the fronl fork upper clamp
bolts
@ and lower clamp bolts @.
NOTE:
Slightly loosen the front fork cap bolt ® to facilitate later disas-
sembly
• Remove the boot.
! A CAUTION !
Replace
the removed lower boot clamp with a new one _
• Remove the cap bolt ® and fork cpring 0.
• Invert the fork and stroke it several times to drain out the fork
oil.
NOTE:
Hold the fork inverted for a few minutes to drain the oil.
CHASSIS 6 -1 1
http://www.motorcycle.in.th

Suzuki drz 400 2002 Specifications

General

Displacement	398 cc
Bore x Stroke	90.0 mm x 62.6 mm
Compression Ratio	11.3:1
Cooling System	Liquid-cooled
Fuel System	Mikuni BSR36 carburetor
Starter	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	80/100-21
Seat Height	935 mm (36.8 in)
Ground Clearance	300 mm (11.8 in)
Wheelbase	1, 485 mm (58.5 in)
Dry Weight	119 kg (262 lbs)
Engine Type	4-stroke, single cylinder, DOHC
Ignition	CDI
Front Brakes	Disc
Rear Brakes	Disc
Rear Tire	120/90-18
Fuel Capacity	10.0 L (2.6 US gal)
