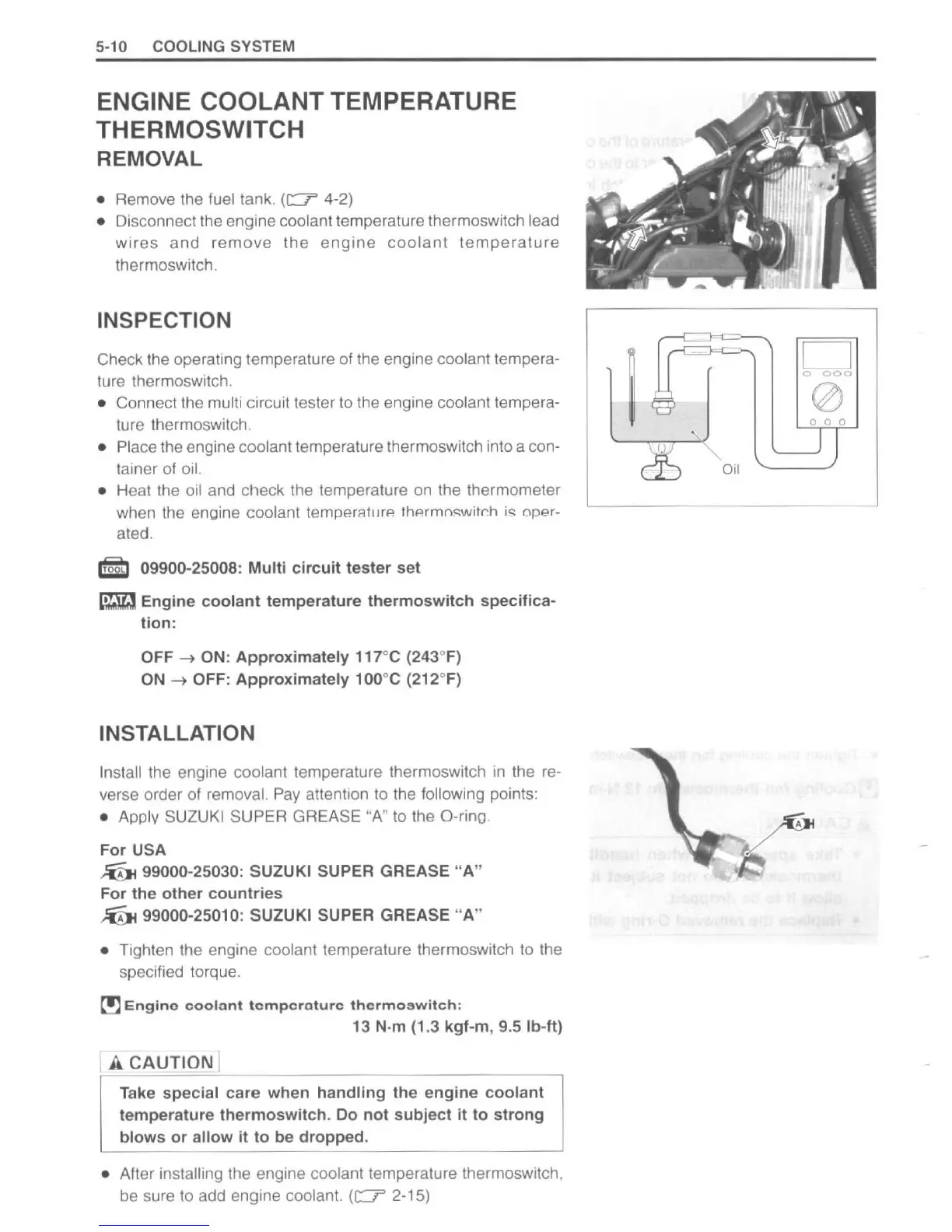

5- 10 COOLING SYSTEM
ENGINE COOLANT TEMPERATURE
THERMOSWITCH
REMOVAL
• Remove the fuel tank. (c::? 4-2)
• Disconnect the engine coolant temperature thermoswitch lead
wires and remove the engine coolant temperature
thermoswitch.
INSPECTION
Check the operating temperature of the engine coolant tempera-
ture thermoswitch.
• Connect the mu l ti circuit tester to the engine coolant tempera-
ture thermoswitch.
• Place the engine coolant temperature thermoswitch into a con-
tainer of oil.
•
Heat the oil and check the temperature on the thermometer
when the enoine coolant
temper8tllrp. thp.rm()~wit"h is oper-
ated.
IS 09900-25008: Multi circuit tester set
_ Engine coolant temperature thermoswitch specifica-
tion:
OFF -+ ON : Approximately 117°C (243° F)
ON -+ OFF: Approximately 100°C (212°F)
INSTALLATION
Install the engine coolant temperature thermoswitch in the re-
verse order of removal. Pay attention to the fo llowing points:
• Apply SUZUKI SUPER GREASE "A" to the O-ring.
For USA
.0 99000-25030: SUZUKI SUPER GREASE "Au
For the other countries
.0 99000-25010: SUZUKI SUPER GREASE "Au
•
Tighten the engine coolant temperature thermoswitch to the
specified torque.
~ Engine coolant temperature thermosw i tch :
13 N·m (1.3 kgf -m, 9.5 Ib-ft)
ACAUTION ]
Take spec ial care when handling the engine coolant
temperature thermosw i tch . Do not subject it to strong
blows or allow it to be dropped .
• After installing the engine coolant temperature thermoswitch,
be sure
to add engine coolant. (c::? 2-15)
D
o 000
(£)
i
Oil
