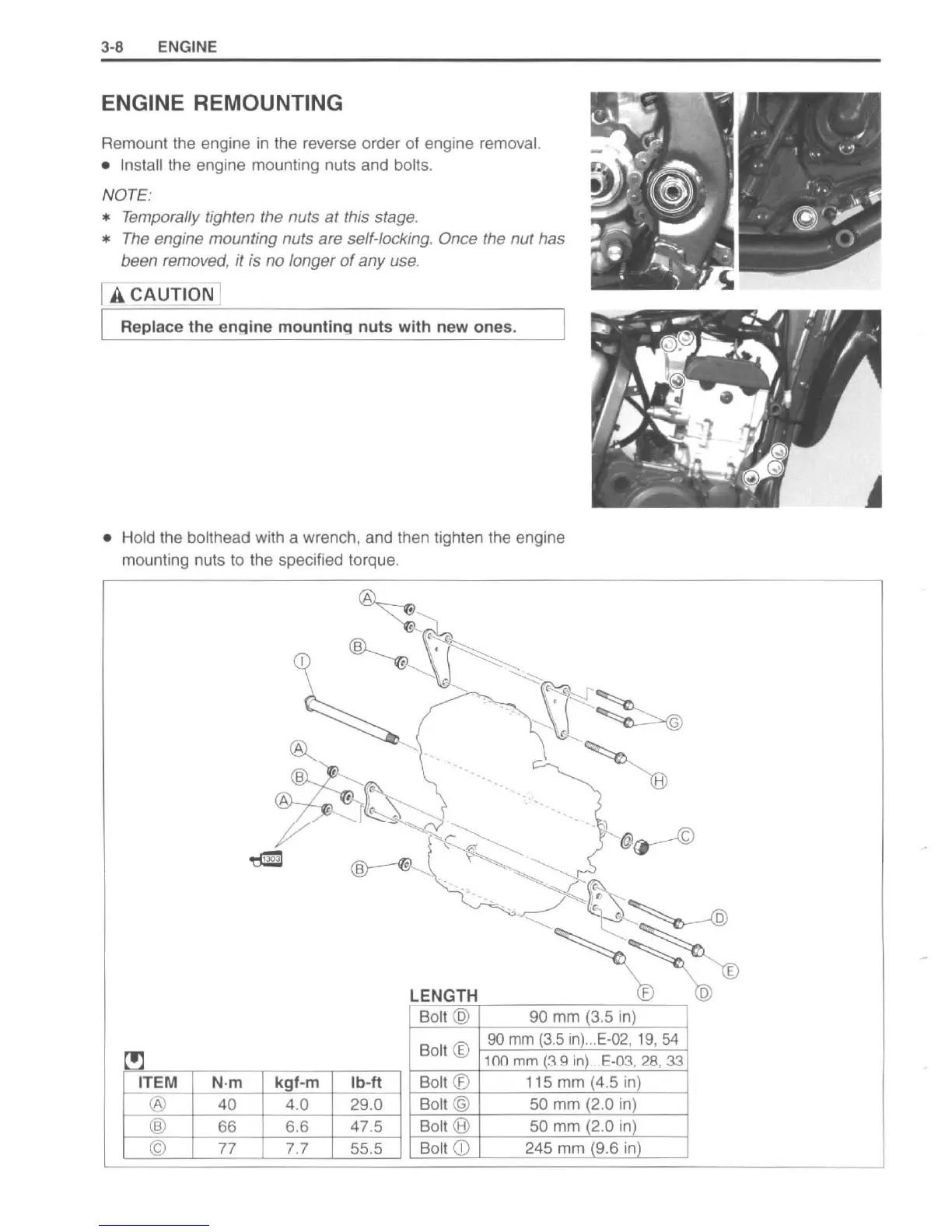

3-8 ENGINE
ENGINE REMOUNTING
Remount the engine in th e reverse order of engine removal.
•
In stall the engine mounting nuts and bolts.
NOTE:
* Temporally tighten the nuts at this stage.
* The engine mounting nuts are self-locking. Once the nut has
been removed, it is no longer
of any use.
I ACAUTION
Replace the ens:line mounting nuts with new ones .
• Hold the bolthead with a wrench, and then tighten t he engine
mounting nuts to the specified torque.
~
I
~,
~~
~ '. ~
~ •..•• H
~ ~ .. ~
.- ...... y~ ~
_______ ~ D
LENGTH
~~
Bolt @ 90 mm (3 .5 in)
(1)
Bolt ®
90 mm (3.5 in) ... E-02 , 19 , 54
100 mm (3 gin) E-03, 28, 33
ITEM
N·m
kgf-m Ib-ft
Bolt
®
115 mm (4 .5 in)
®
40 4.0 29.0
Bolt @
50 mm (2 .0 in)
®
66
6.6 47.5
Bolt (jj) 50 mm (2 .0 in)
©
77
7.7
55.5
Bolt CD
245 mm (9.6 in)
-
http://www.motorcycle.in.th

Suzuki drz 400 2002 Specifications

General

Displacement	398 cc
Bore x Stroke	90.0 mm x 62.6 mm
Compression Ratio	11.3:1
Cooling System	Liquid-cooled
Fuel System	Mikuni BSR36 carburetor
Starter	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	80/100-21
Seat Height	935 mm (36.8 in)
Ground Clearance	300 mm (11.8 in)
Wheelbase	1, 485 mm (58.5 in)
Dry Weight	119 kg (262 lbs)
Engine Type	4-stroke, single cylinder, DOHC
Ignition	CDI
Front Brakes	Disc
Rear Brakes	Disc
Rear Tire	120/90-18
Fuel Capacity	10.0 L (2.6 US gal)
