Suzuki drz 400 2002 Service Manual

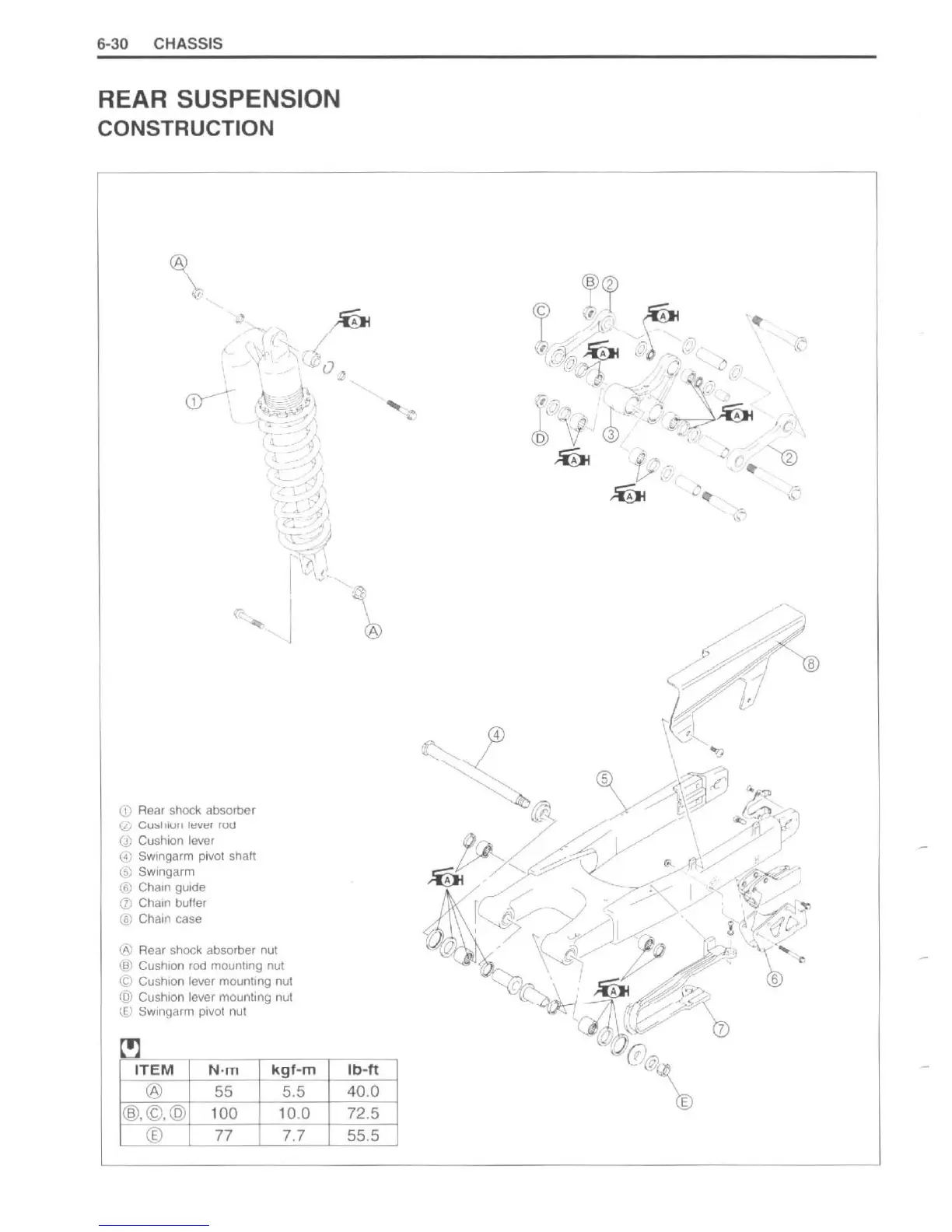

6-30 CHASSIS
REAR SUSPENSION
CONSTRUCTION
CD Rear shock absorber
(j) Cu::.lliull level ruO
(i) Cushion lever
(~ Swmgarm pivot shaft
® SWlngarm
® Chain gUide
CD Chain buffer
@ Chain case
J
@ Rear shock absorber nul
® Cushion rod mounting nut
© Cushion lever mounllng nut
(Q) Cushion lever mounting nut
l;J SWlngarm pivot nut
ITEM N·m
kgf-m
®
55
5.5
@, ©,@ 1 00 10.0
®
77 7.7
\
Ib-t!
40.0
72 .5
55.5
http://www.motorcycle.in.th

Suzuki drz 400 2002 Specifications

General

Displacement	398 cc
Bore x Stroke	90.0 mm x 62.6 mm
Compression Ratio	11.3:1
Cooling System	Liquid-cooled
Fuel System	Mikuni BSR36 carburetor
Starter	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	80/100-21
Seat Height	935 mm (36.8 in)
Ground Clearance	300 mm (11.8 in)
Wheelbase	1, 485 mm (58.5 in)
Dry Weight	119 kg (262 lbs)
Engine Type	4-stroke, single cylinder, DOHC
Ignition	CDI
Front Brakes	Disc
Rear Brakes	Disc
Rear Tire	120/90-18
Fuel Capacity	10.0 L (2.6 US gal)
