Suzuki drz 400 2002 Service Manual

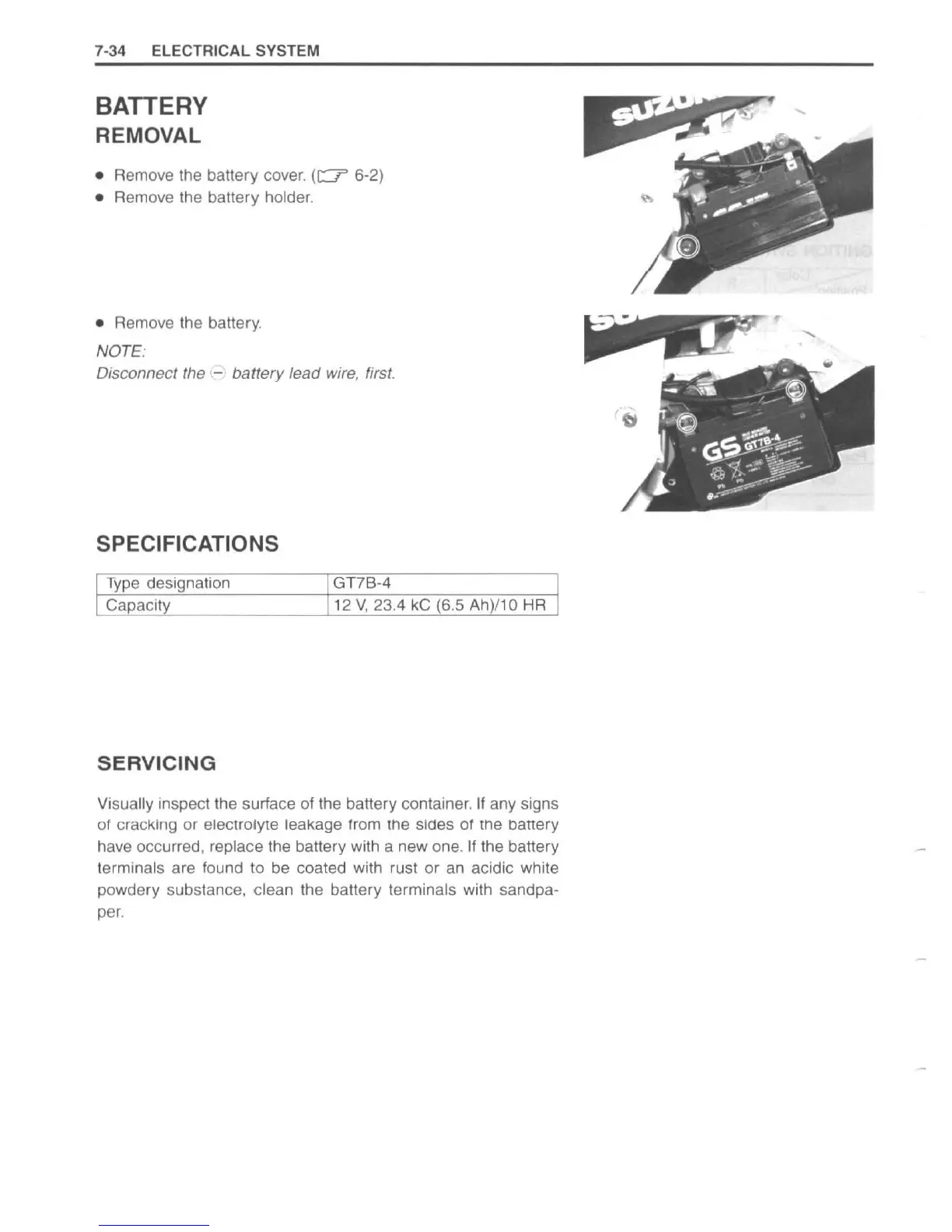

7- 34 ELECTRICAL SYSTEM
BATTERY
REMOVAL
• Remove Ihe battery cover. (c:::J' 6-2)
• Remove the battery holder.
• Remove the battery.
NOTE:
Disconnect the 1- battery lead wire, first.
SPECIFICATIONS
GT7B-4
12 V, 23.4 kC (6.5 A h) /10 HR
SERVICING
Visually inspect the surface of the battery container. If any signs
Of cracking or electrolyte leakage from me Sides Of me banery
have occurred, replace the battery with a new one. If the ba ttery
terminals are found to be coated with rust or an acidic white
powdery substance, clean the battery terminals with sandpa-
per.
•
http://www.motorcycle.in.th

Suzuki drz 400 2002 Specifications

General

Displacement	398 cc
Bore x Stroke	90.0 mm x 62.6 mm
Compression Ratio	11.3:1
Cooling System	Liquid-cooled
Fuel System	Mikuni BSR36 carburetor
Starter	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Tire	80/100-21
Seat Height	935 mm (36.8 in)
Ground Clearance	300 mm (11.8 in)
Wheelbase	1, 485 mm (58.5 in)
Dry Weight	119 kg (262 lbs)
Engine Type	4-stroke, single cylinder, DOHC
Ignition	CDI
Front Brakes	Disc
Rear Brakes	Disc
Rear Tire	120/90-18
Fuel Capacity	10.0 L (2.6 US gal)
